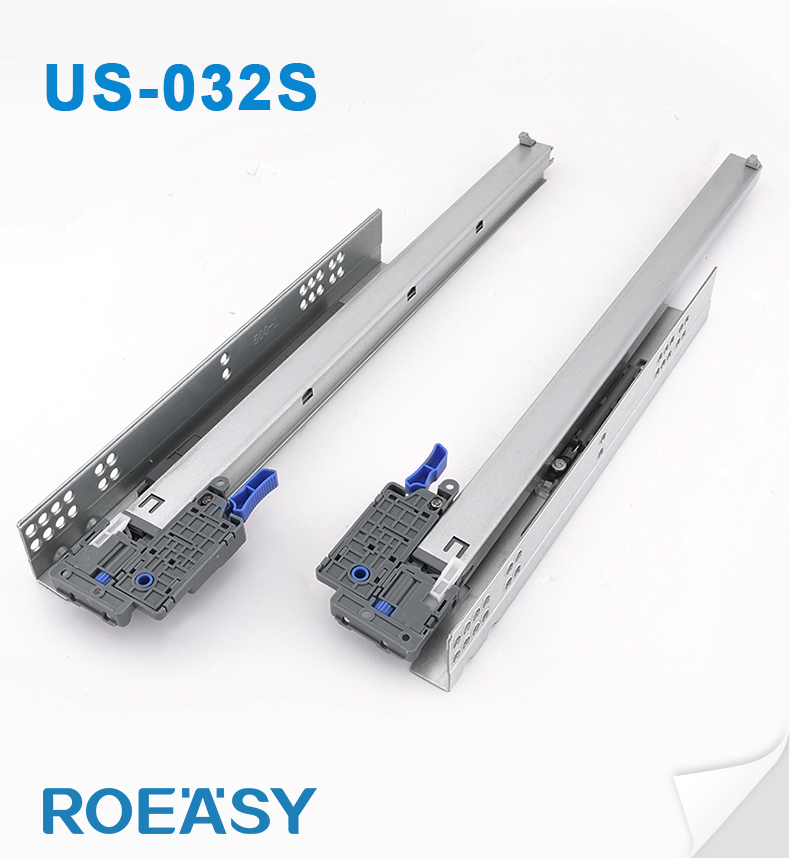

ROEASY US-032S-3D Undermount 3 Fold Concealed Drawer Channel 3D Adjustment Bottom Mounted Drawer Slide

Inquiry now

Information

Place of Origin:	China
Brand Name:	ROEASY
Model Number:	US-032S
Certification:	SGS
Minimum Order Quantity:	2000
Packaging Details:	1 Set/Poly bag, 6 Sets/ctn
Delivery Time:	30 days
Payment Terms:	T/T,L/C,Western Union,Western Union,D/A,D/P
Supply Ability:	100000 pairs per month

Description

Made by cold rolled steel material,

With zinc plated surface treatment

1 pair/poly bag,10 sets/ctn

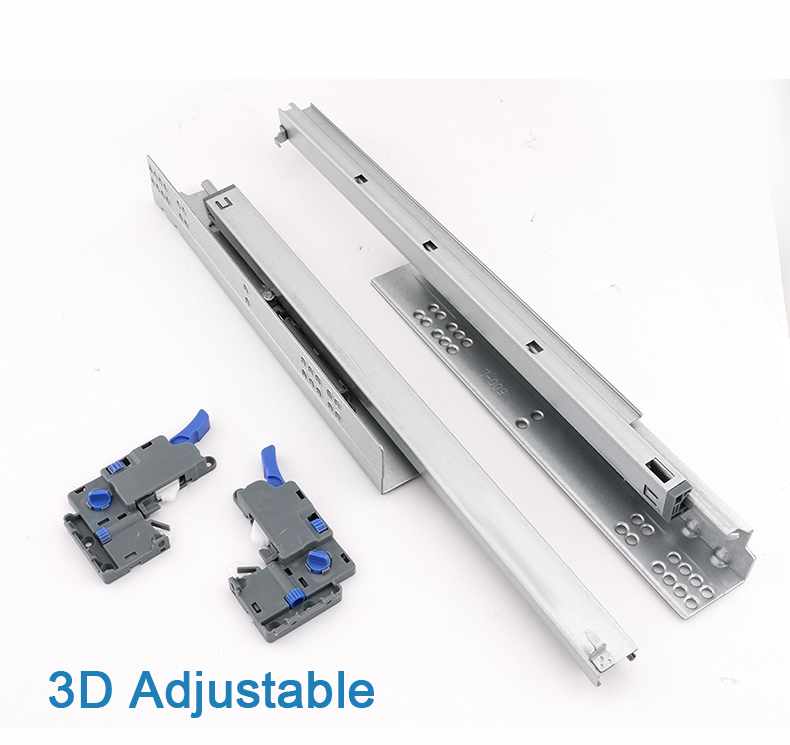

3D Adjustment Handle

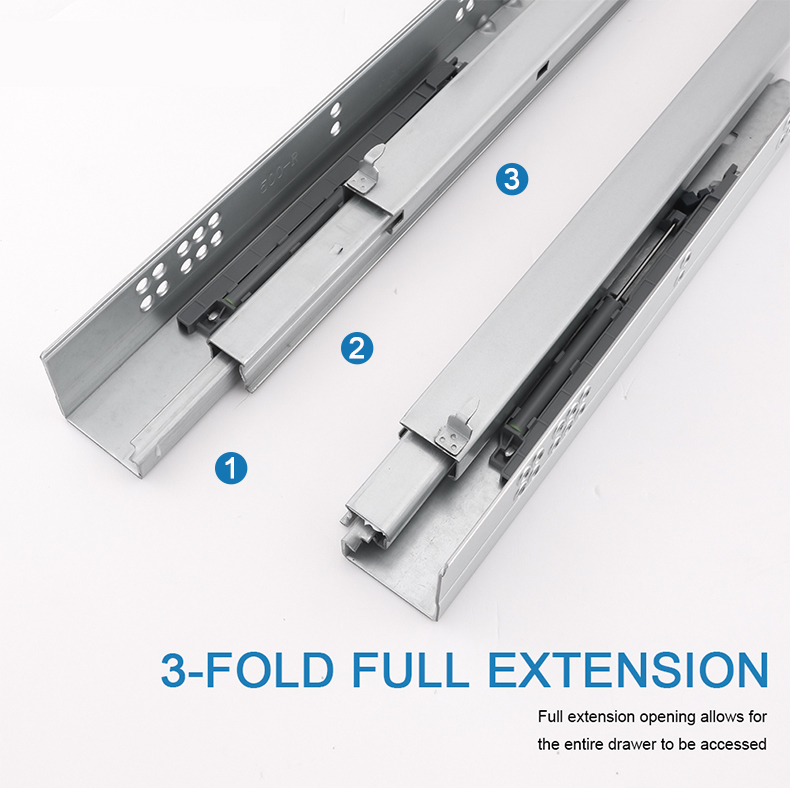

3 Fold Full Extension

Suitable for home office furniture

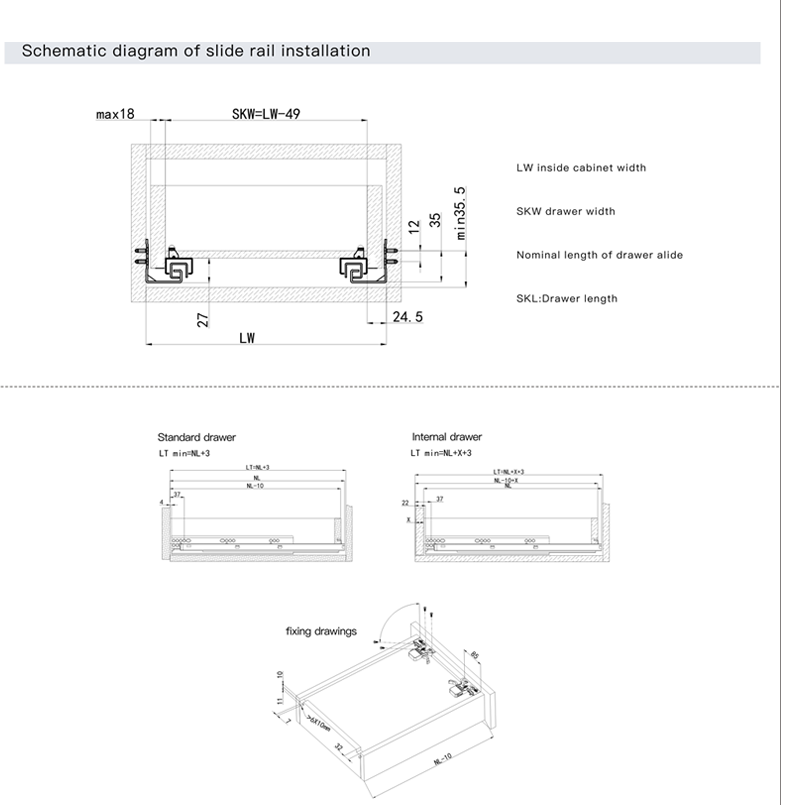

Installation at the drawers bottom

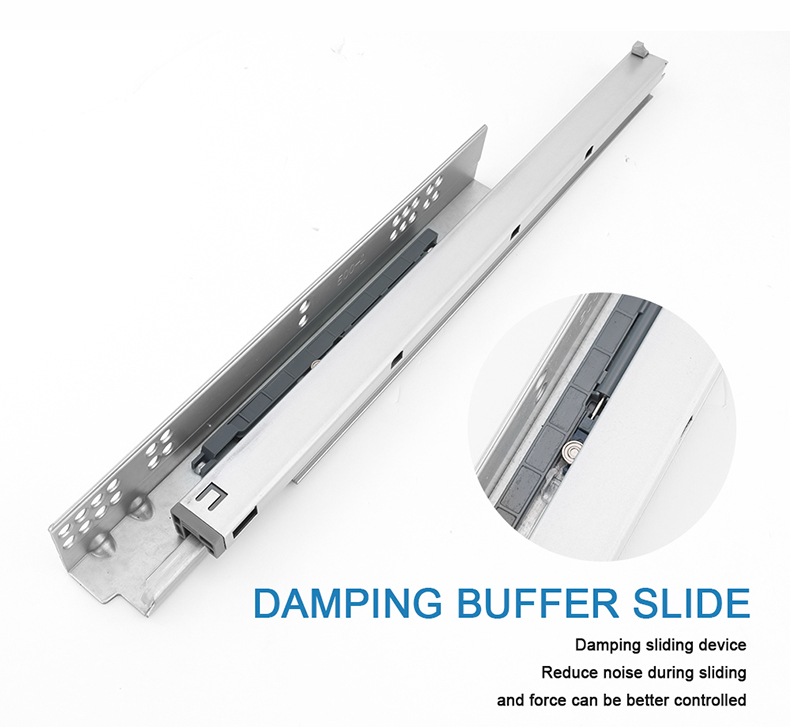

Soft Closing type

Size Range form 12 inch (300mm) to 22 inch (550mm)

50000 times opening and closing

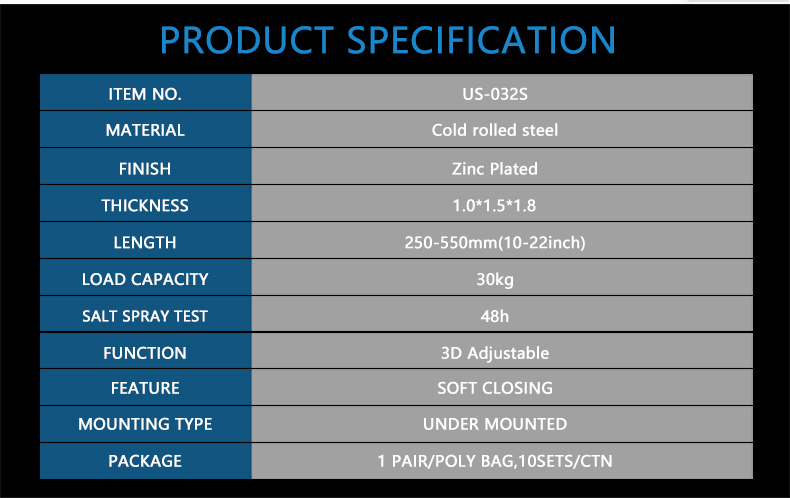

Specifications

Item Name	3 Fold Undermount Drawer Slide
Material	Cold Rolled Steel
Surface Treatment	Zinc plated
Size Range	12 inch - 22 inch (300-550mm)
Thickness	1.01.51.8
Load Capacity	30kg
Packing	1 pair/poly bag,10 sets/ctn

Competitive Advantage

Fast delivery：3-7 days sample shipping, 25-35days production.

Self-own factory: Over 31 years manufacturer experience in furniture hardware

One-stop solution service of furniture hardware,support OEM/ODM Design.

Project Solution Capability:

Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.

More than 30 Years of experience in furniture hardware, with 15,000㎡ factory and 10,750㎡Total floorspace

Supplier for Fortune 500 companies,OEM for well-known brands,

Design-based customization

Competitive OEM factory, ODM services available

10 Patents awarded and 3 Registered trademarks

Supplier assessment procedures / R&D capabilites

Global export expertise / Finished product inspection /On-site material inspection

International warehouse / International services center

Sample-based customization / Design-based customization

Minor customization / Full customization
