| Item | Value |
| Model No. | Slide-UP01-S |
| Kitchen Storage Type | Smart Lift Kitchen Cabinet |
| Design Style | Modern |
| Usage | Storage, Save Kitchen Space |
| Applicable Cabinet Width | 600mm 700mm 800mm 900mm |
| Applicable Cabinet Height | 700mm 800mm 900m |
| Depth Size | 330mm |
| Feature | Automatic hovering and anti pinch when encountering obstacles |
| Layer | Multi Layers, Customize |
| Slide | Soft Close Slide Rail |
Equipped with a permanent magnet motor (110-240V, 50/60HZ)
Passed 50,000 cycles of service life test and 24-hour 7-level acetate salt spray test

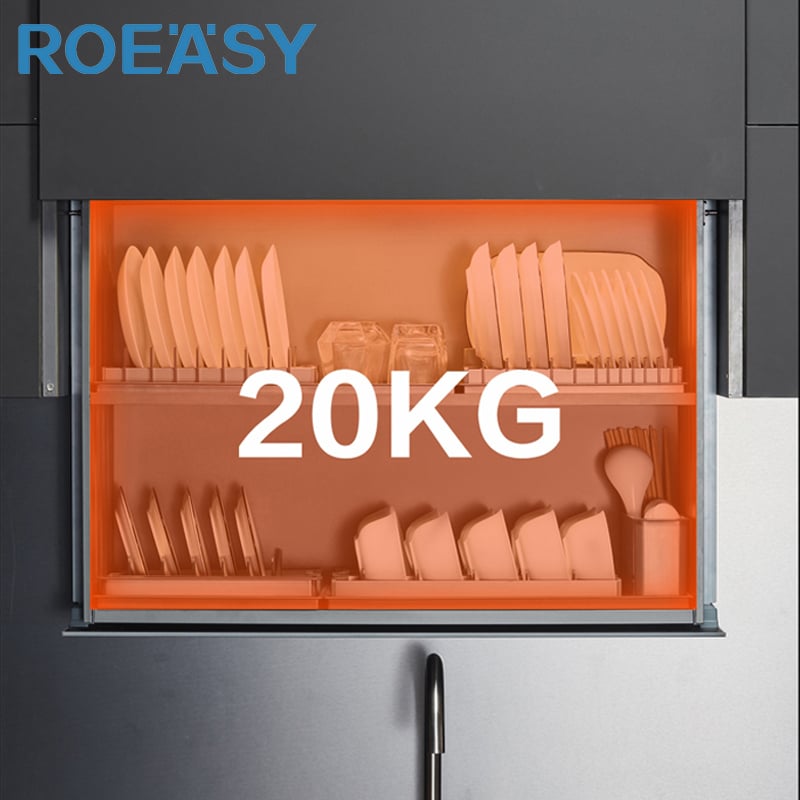

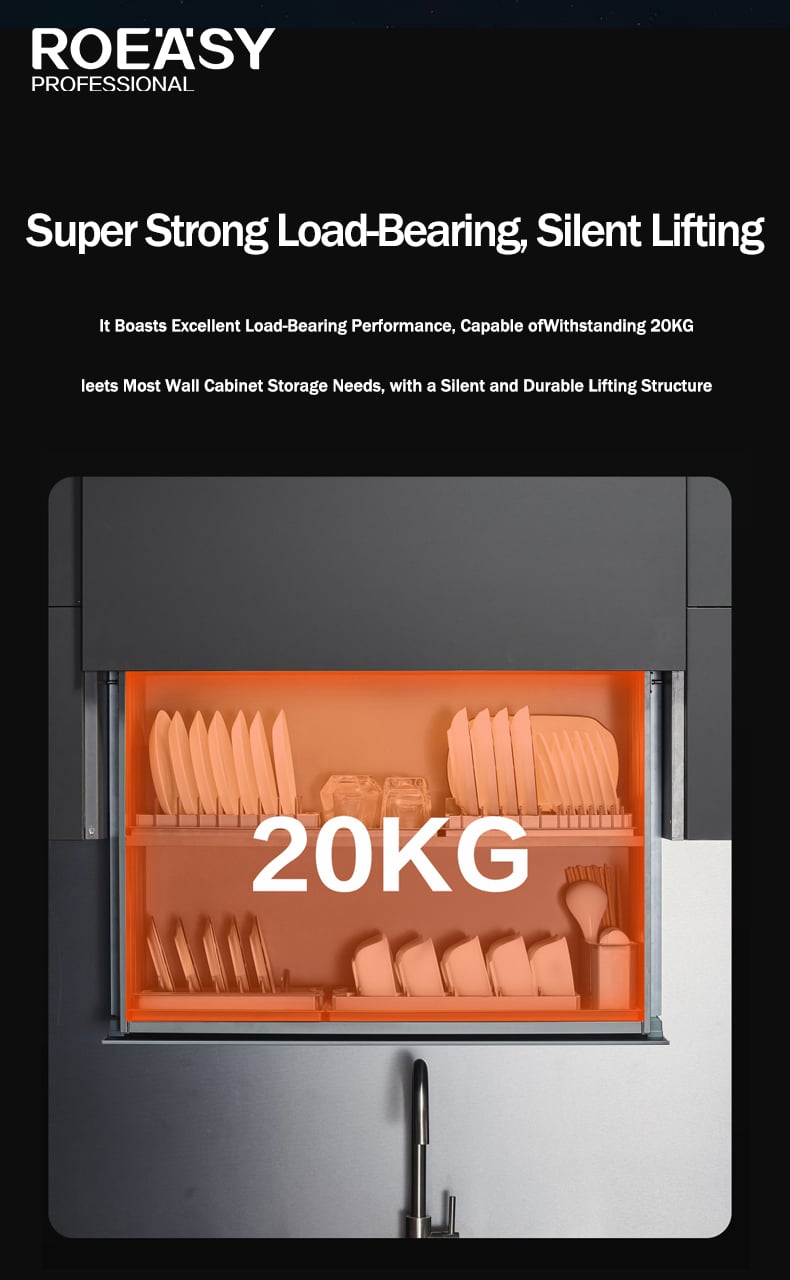

Load capacity: 20KG
The product has CCC & CE certifications and is shipped as a complete cabinet with an aluminum-framed glass front panel
Hanger material: cold-rolled steel; depth adjustment range: ±7mm; horizontal adjustment range: ±9mm
Equipped with a wooden cabinet body, made of 18mm E0-grade solid wood grain board
Inner frame material: SPCC cold-rolled steel + aluminum
Operating temperature: -10°C ~ 50°C
Operating humidity: 10% - 95%
| Item No. | Fit Cabinet (mm) | Optional Accessories for Cabinets | Specification (mm) |

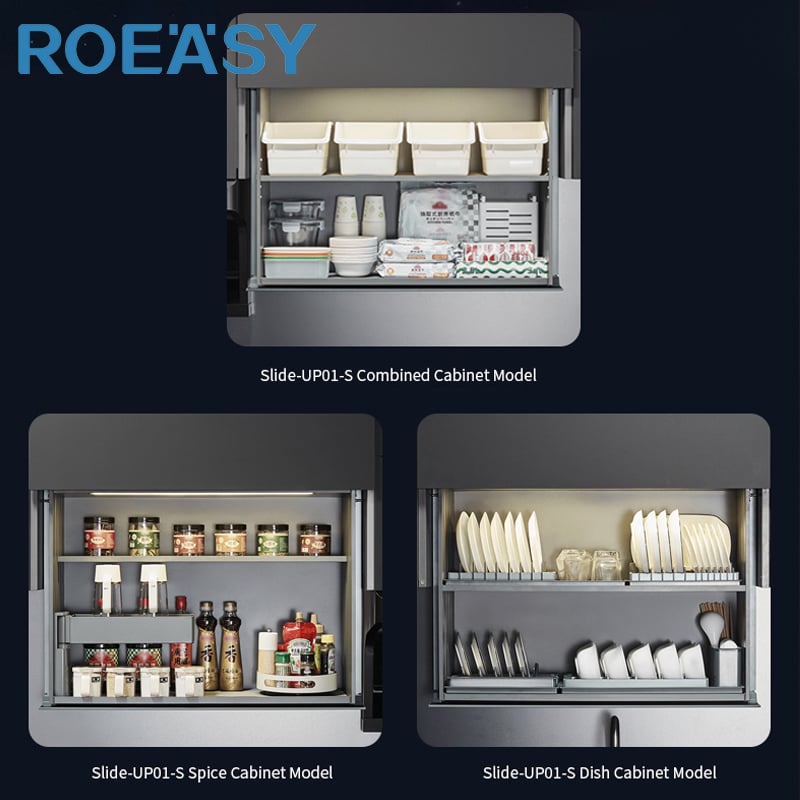

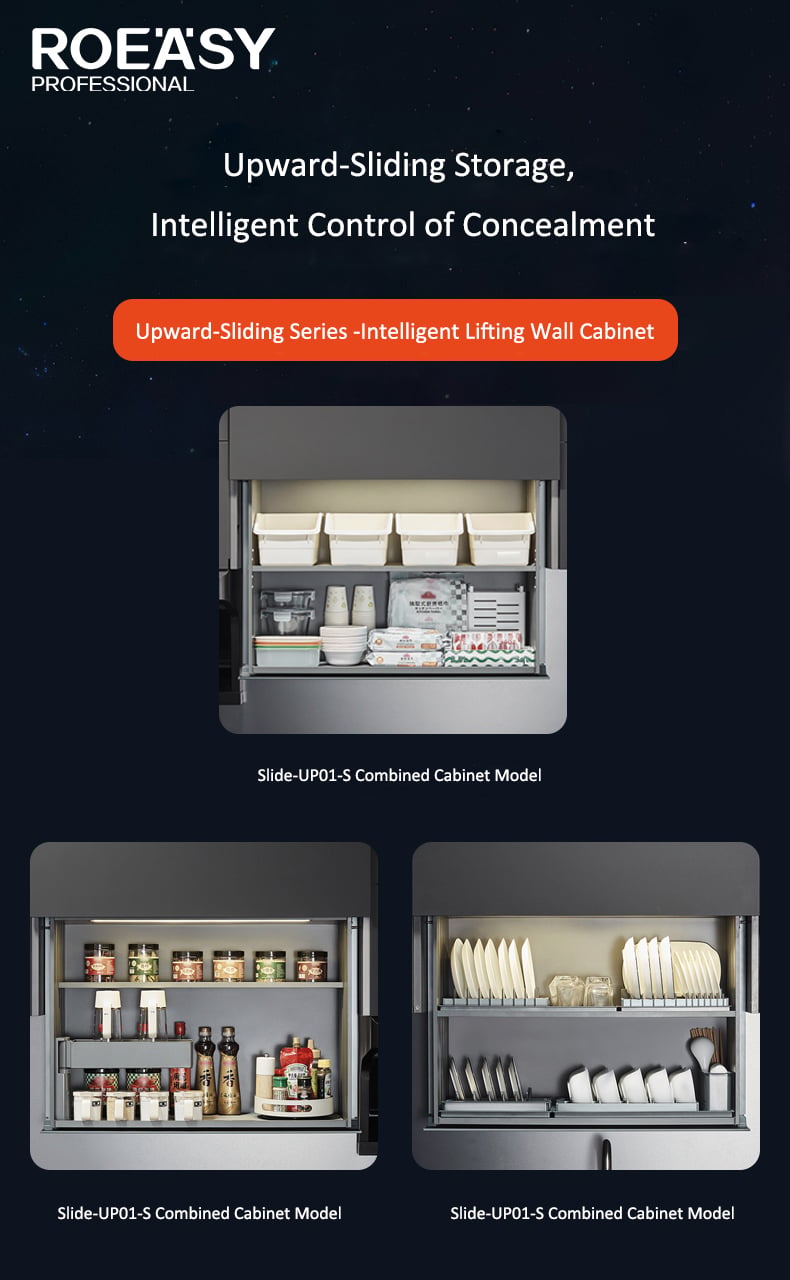

| Slide-UP01-S | 600 | Dish Rack | W600*H700*D330 |
| Slide-UP01-S | 700 | Dish Rack | W700*H700*D330 |
| Slide-UP01-S | 800 | Dish Rack | W800*H700*D330 |
| Slide-UP01-S | 900 | Dish Rack | W900*H700*D330 |
| Slide-UP01-S | 600 | Seasoing Rack | W600*H800*D330 |
| Slide-UP01-S | 700 | Seasoing Rack | W700*H800*D330 |
| Slide-UP01-S | 800 | Seasoing Rack | W800*H800*D330 |
| Slide-UP01-S | 900 | Seasoing Rack | W900*H800*D330 |
| Slide-UP01-S | 600 | Shelf Board | W600*H900*D330 |
| Slide-UP01-S | 700 | Shelf Board | W700*H900*D330 |
| Slide-UP01-S | 800 | Shelf Board | W800*H900*D330 |
| Slide-UP01-S | 900 | Shelf Board | W900*H900*D330 |
| Standard Up - Sliding Door with Dark Grey Solid Wood Door Panel, E0 - grade, 18mm Thick - Suitable for Slide - UP01 | |||

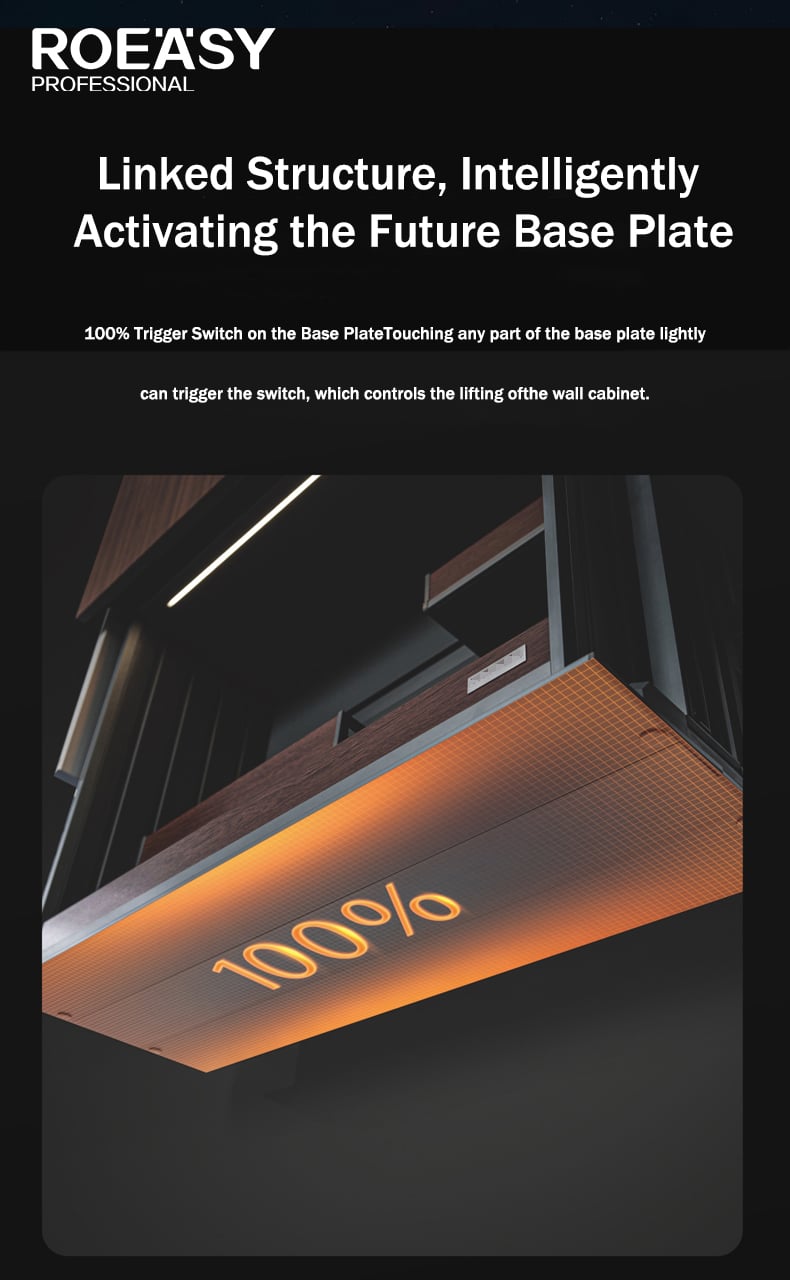

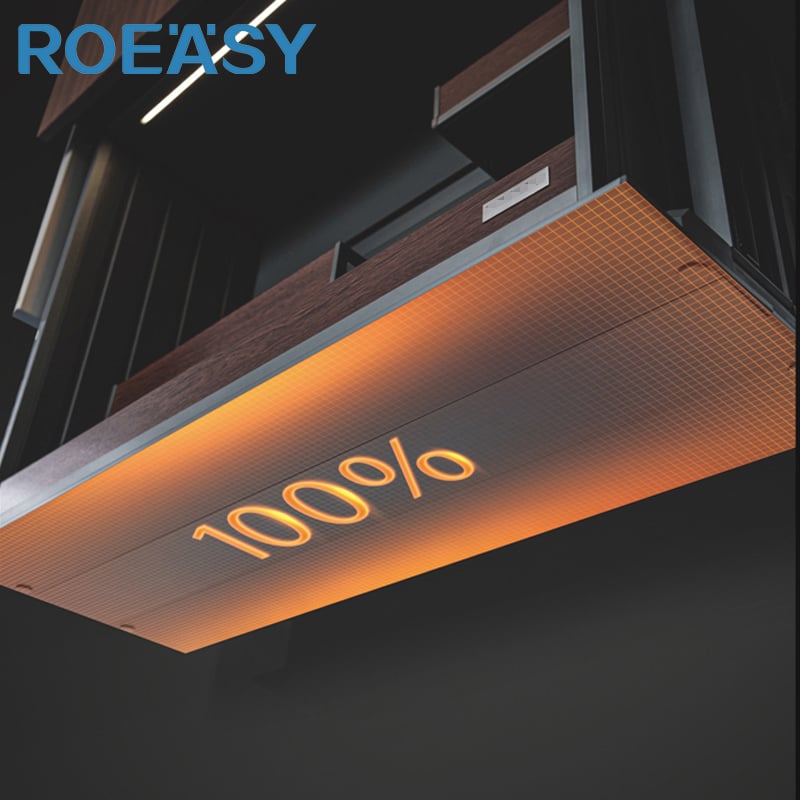

Easy Access: Simply touch to activate the intelligent lifting function; it can stop at any desired height for convenient item retrieval.

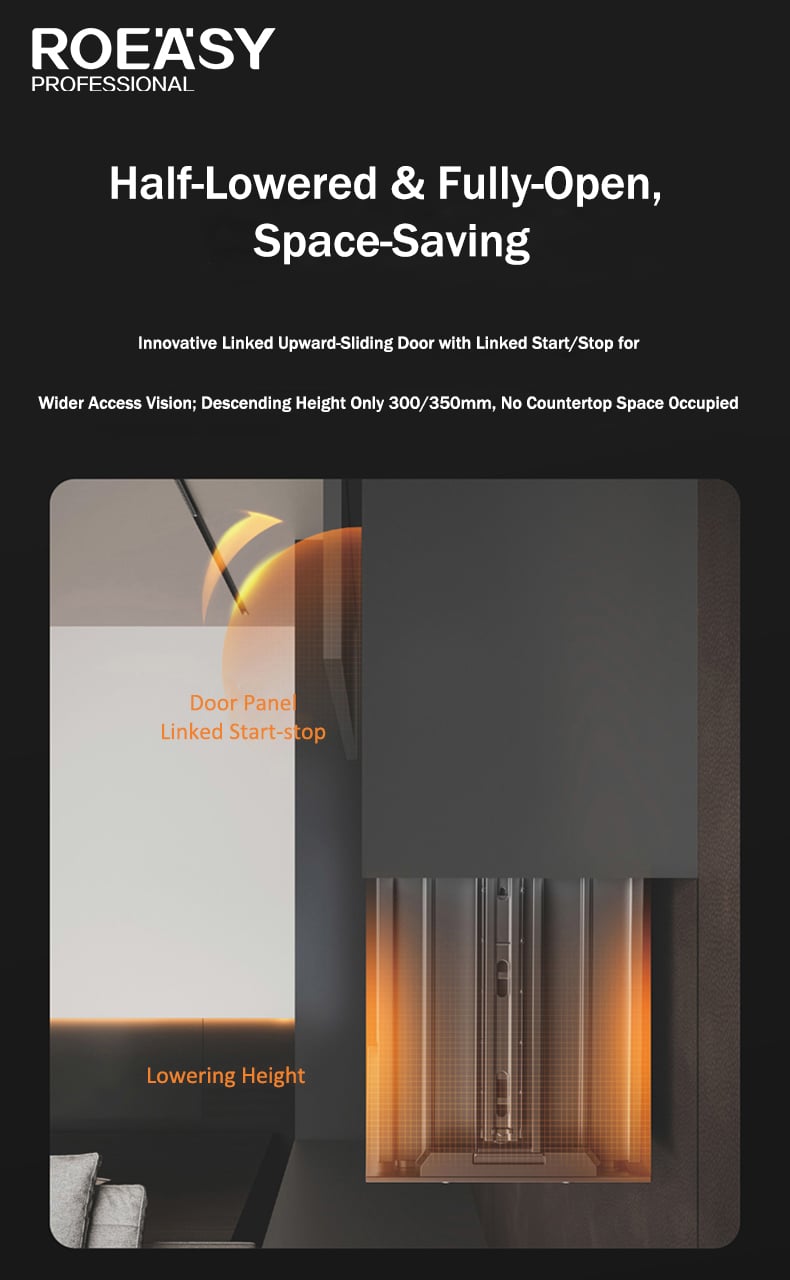

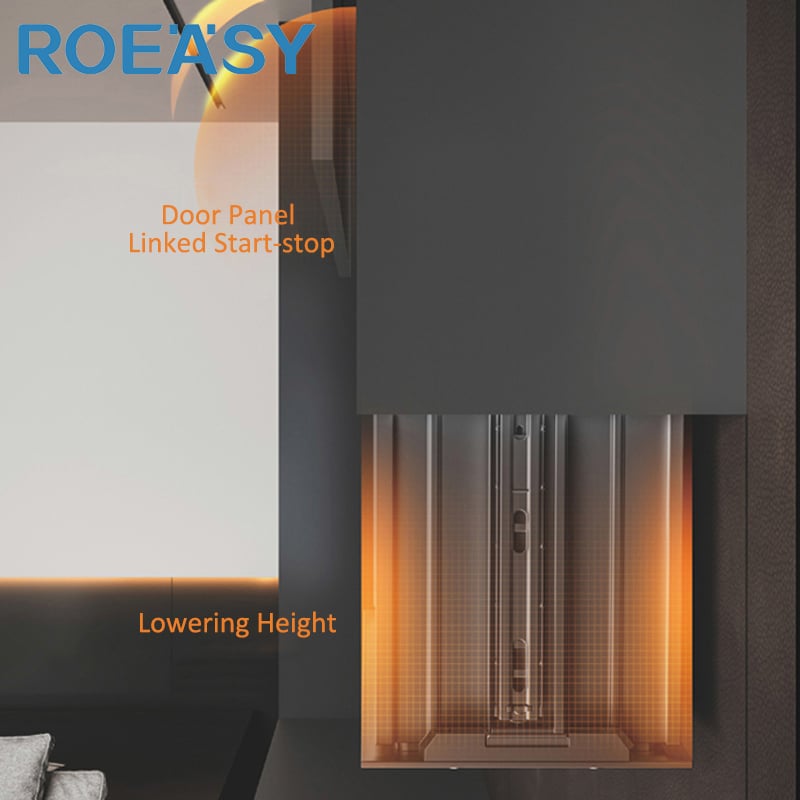

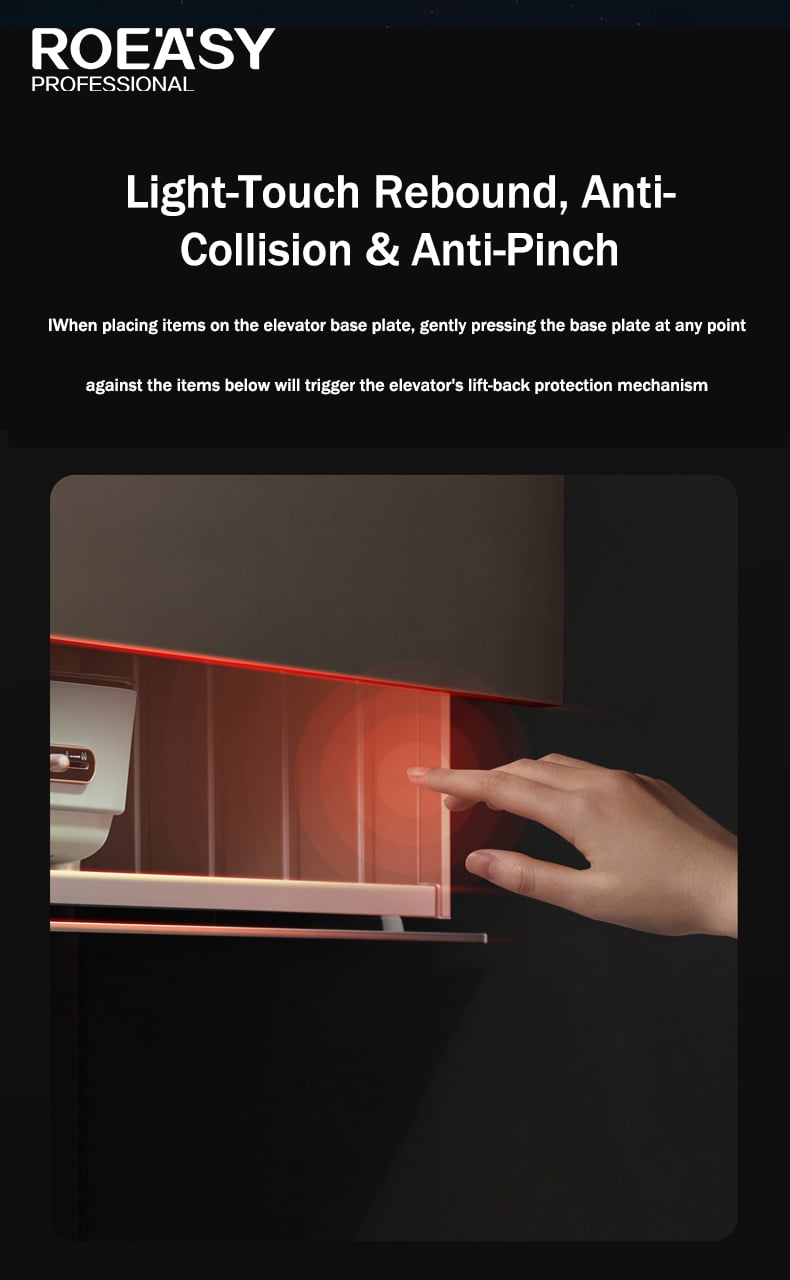

Obstruction-Sensing Stop: The cabinet will immediately stop descending if it encounters any obstacle.
Elevated Double-Layer Guardrail: Enhances safety during item retrieval.
Kitchen Magic Box: Frees up countertop space, easily accommodates kitchenware, and optimizes space utilization.
Warm Lighting: Turns on intelligently.
Ultimate Quietness: Features a high-quality mute motor for smooth operation without disturbing sleep.
Easy & Stable Installation: Quick and hassle-free setup. The hanger adopts a 3D hook-type design, adjustable for secure and stable mounting.
Repeated Load Testing: Ensures reliable quality, no need to worry about performance.
