| Place of Origin: | Guangdong,China |
| Brand Name: | ROEASY |

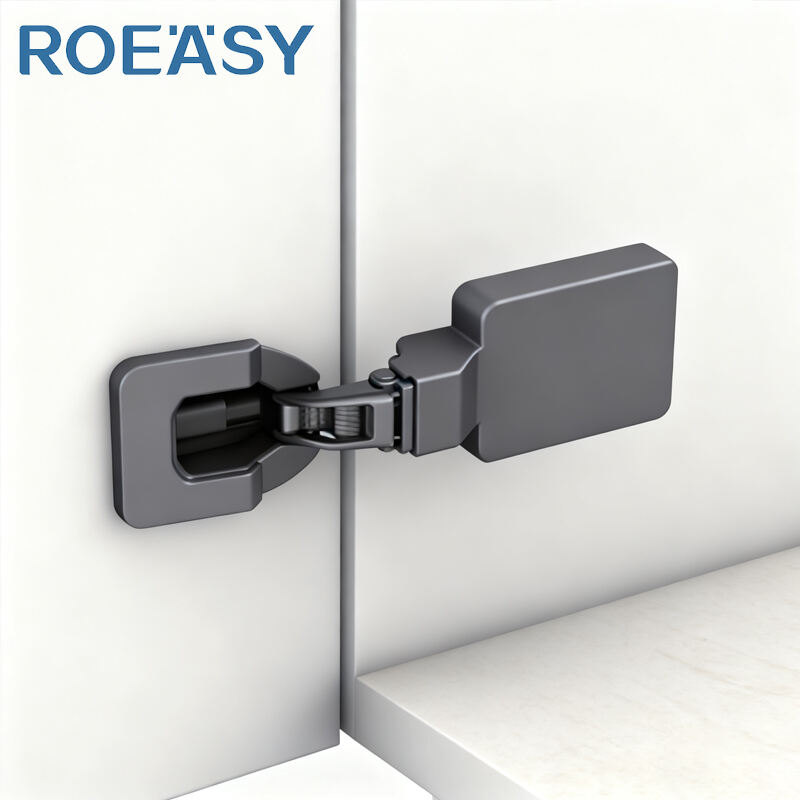

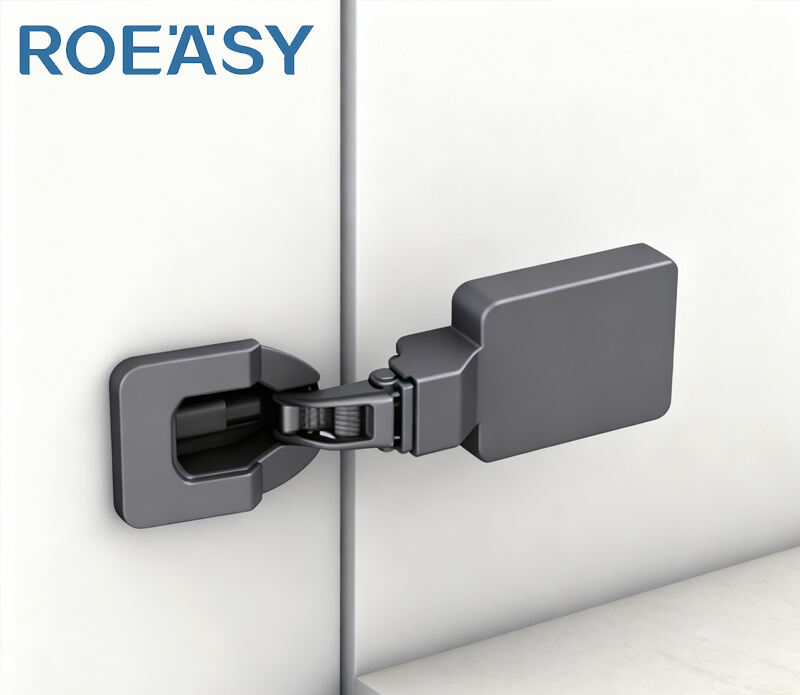

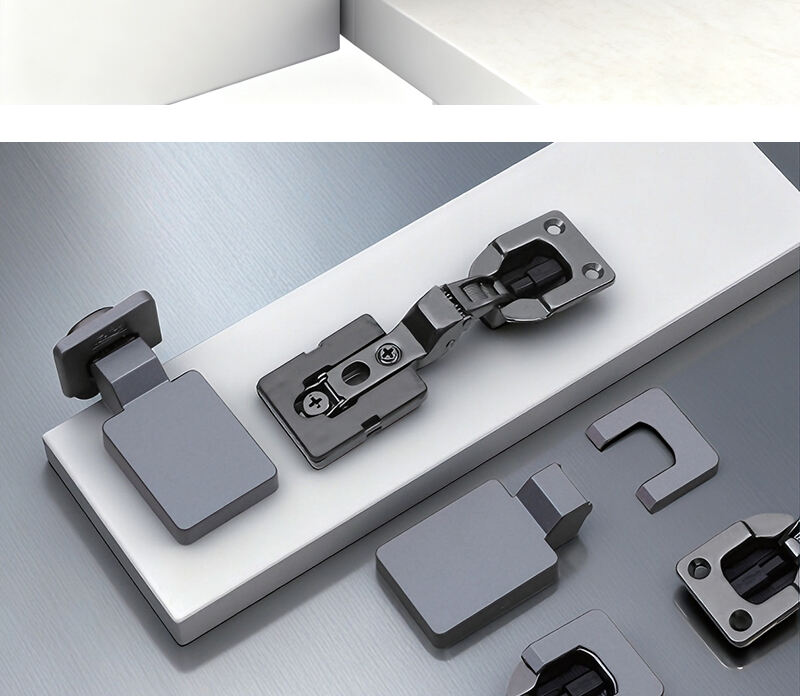

| Product Name: | Square Shaped 35MM Cup Soft Close Hydraulic Hinges |
| Material: | Cold Rolled Steel+Plastic |
| Surface Treatment: | Black |
| MOQ: | 1000 pcs |
| Packing: | 2 pcs/bag, 5 bags/box, 100pcs/carton |
| Certification: | SGS Test, ISO 9001:2015, CE RoHS |
|
Model Number: |
KH05 |
| Size: |

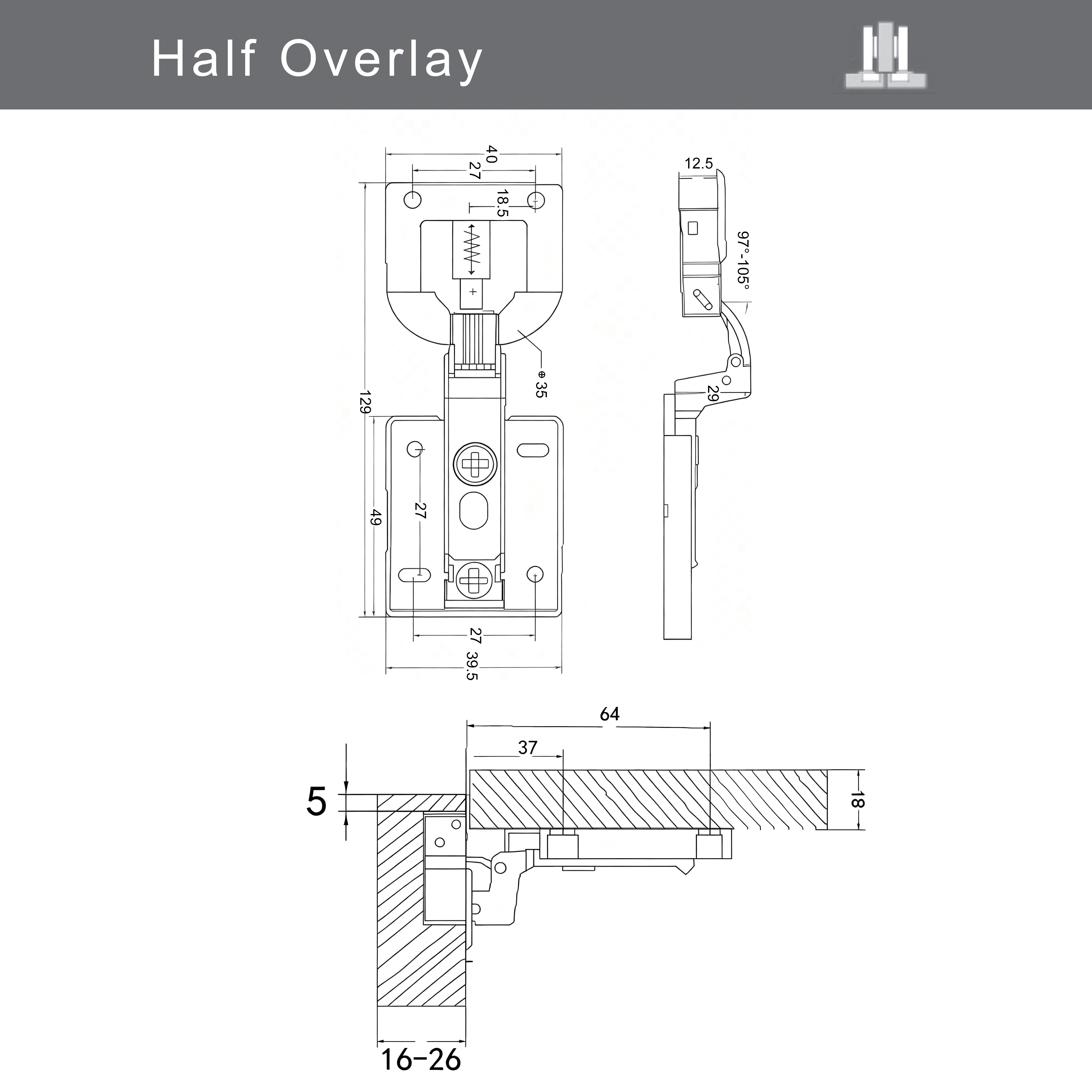

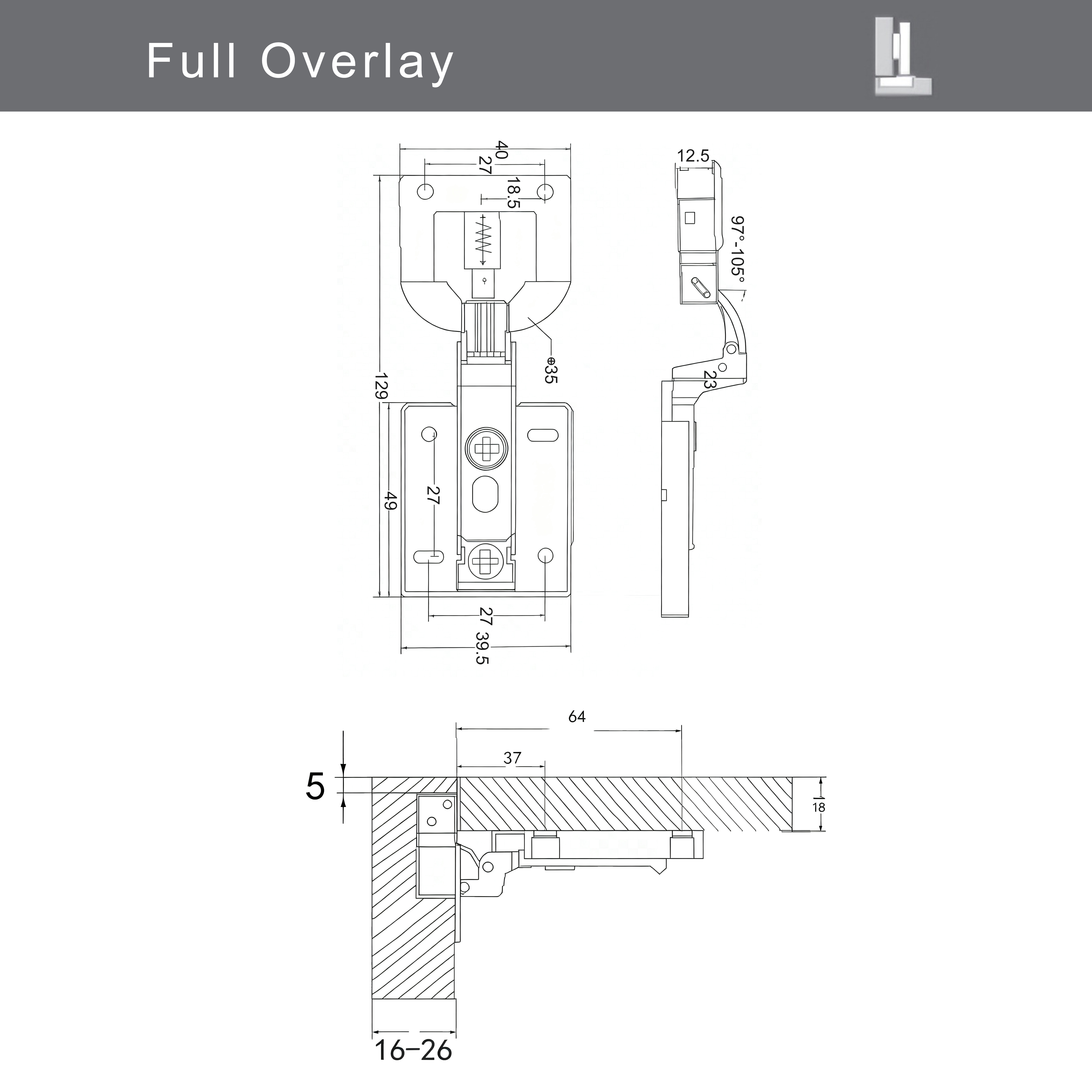

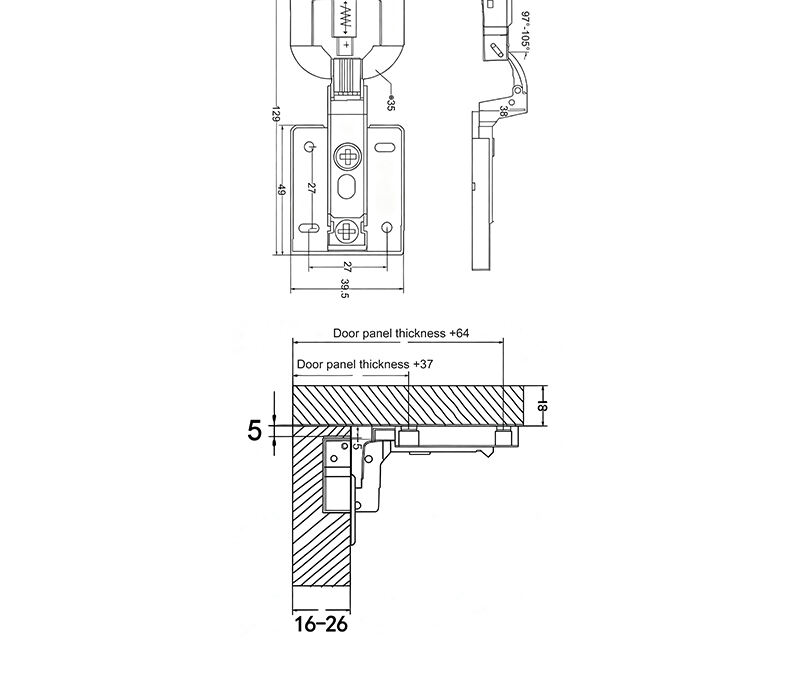

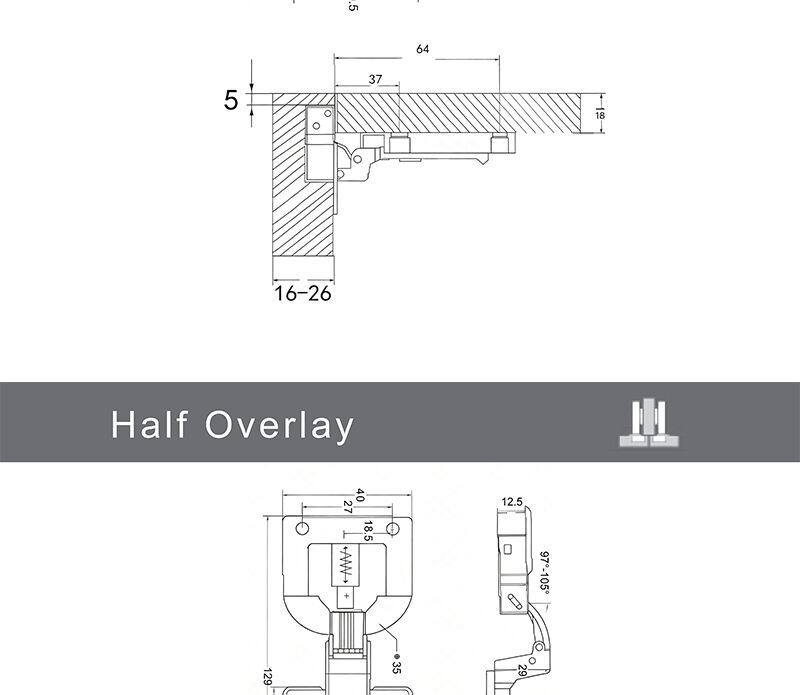

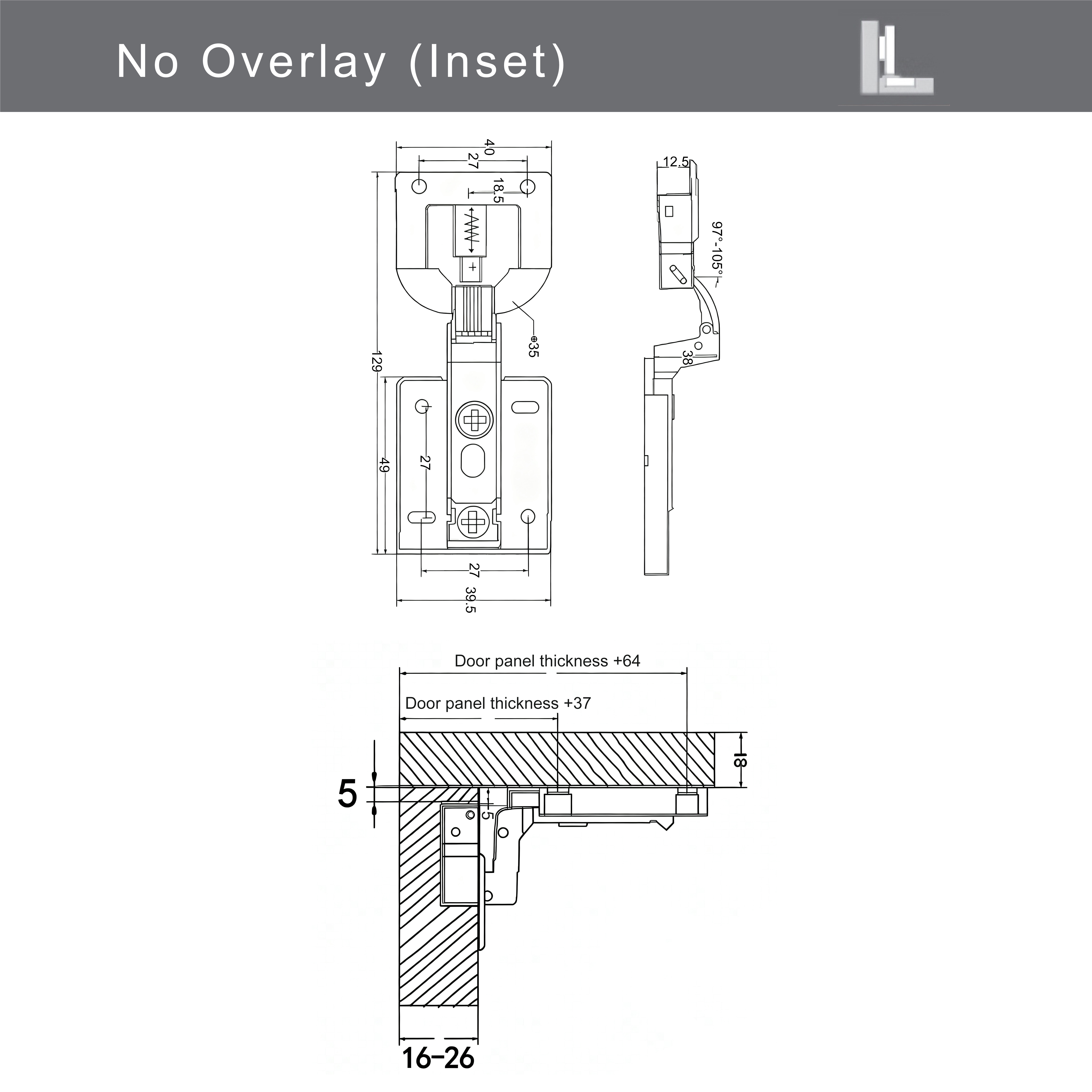

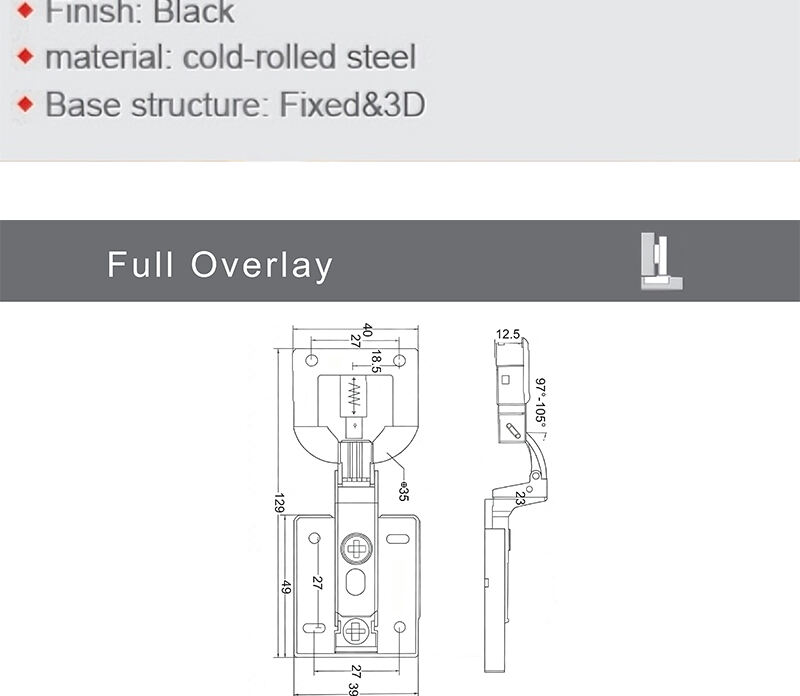

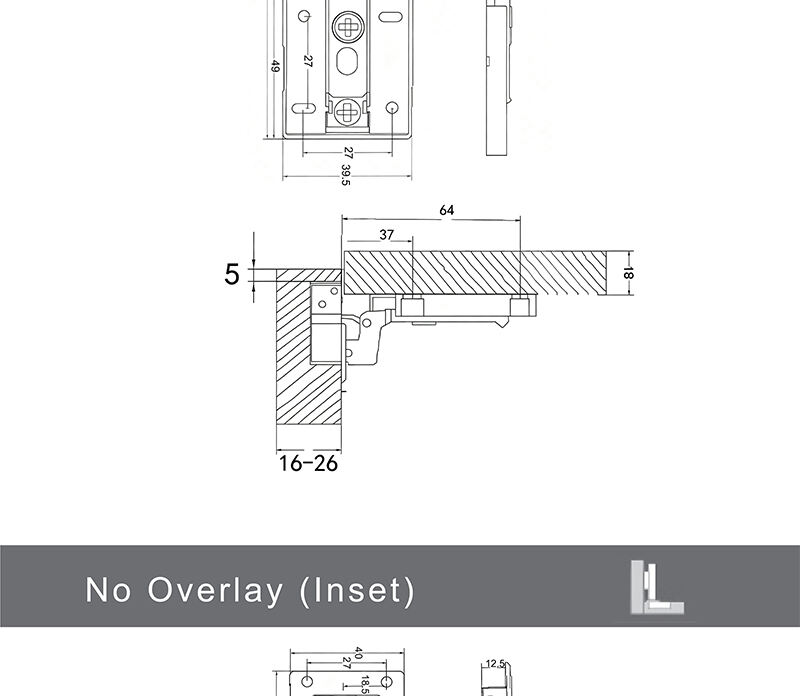

Full-overlay, Half-overlay, Inset |
|
Diameter of Hinge Cup: |
35mm |
|
Range for door thickness: |
16-26mm |
|
Applicable side panel thickness: |
16-21mm |
|
Height of hinge cup: |
12.5mm |
|
Dimension of door: |
4-5mm |

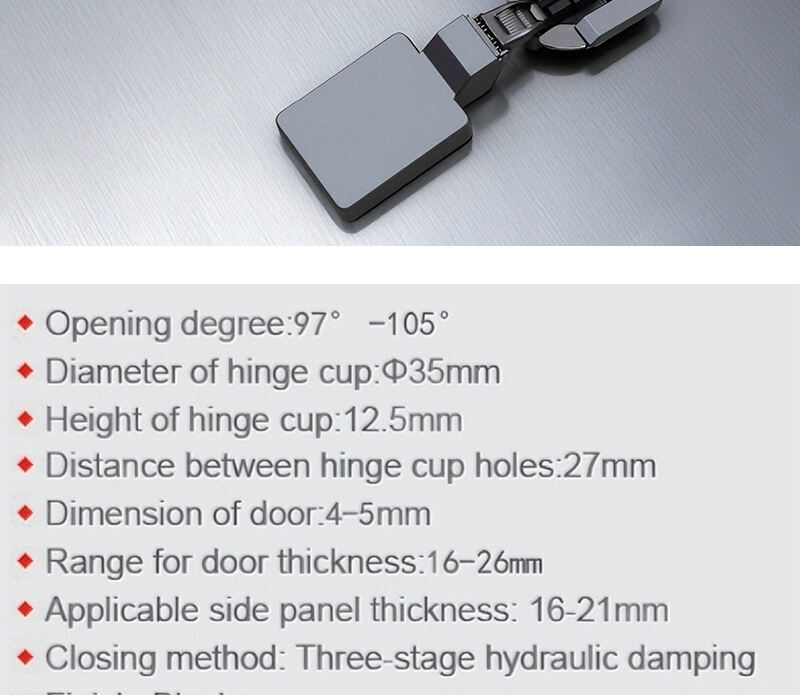

| Opening Angle | 97° -105° |
| Base Structure | Fixed & 3D |
| Function | Soft-closing，Concealed Hydraulic |
| Feature | Three-stage Force Soft Closing |
| Function | 3D Adjustable |
| Installation | Pre-fixing |
| Acid Salt Spray Test | 48h |
| Life Cycle Test | 50000 Times |
| Optional Accessories | Arm Cover,Screws |
Fast delivery：3-7 days sample shipping, 25-35days production.
Self-own factory: Over 31 years manufacturer experience in furniture hardware
One-stop solution service of furniture hardware,support OEM/ODM Design.
Project Solution Capability:
Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.
More than 30 Years of experience in furniture hardware, with 15,000㎡ factory and 10,750㎡Total floorspace
Supplier for Fortune 500 companies,OEM for well-known brands,
Design-based customization
Competitive OEM factory, ODM services available
10 Patents awarded and 3 Registered trademarks
Supplier assessment procedures
Global export expertise / Finished product inspection
International warehouse / International services center
Sample-based customization / Design-based customization
Minor customization / Full customization
On-site material inspection / R&D capabilites
