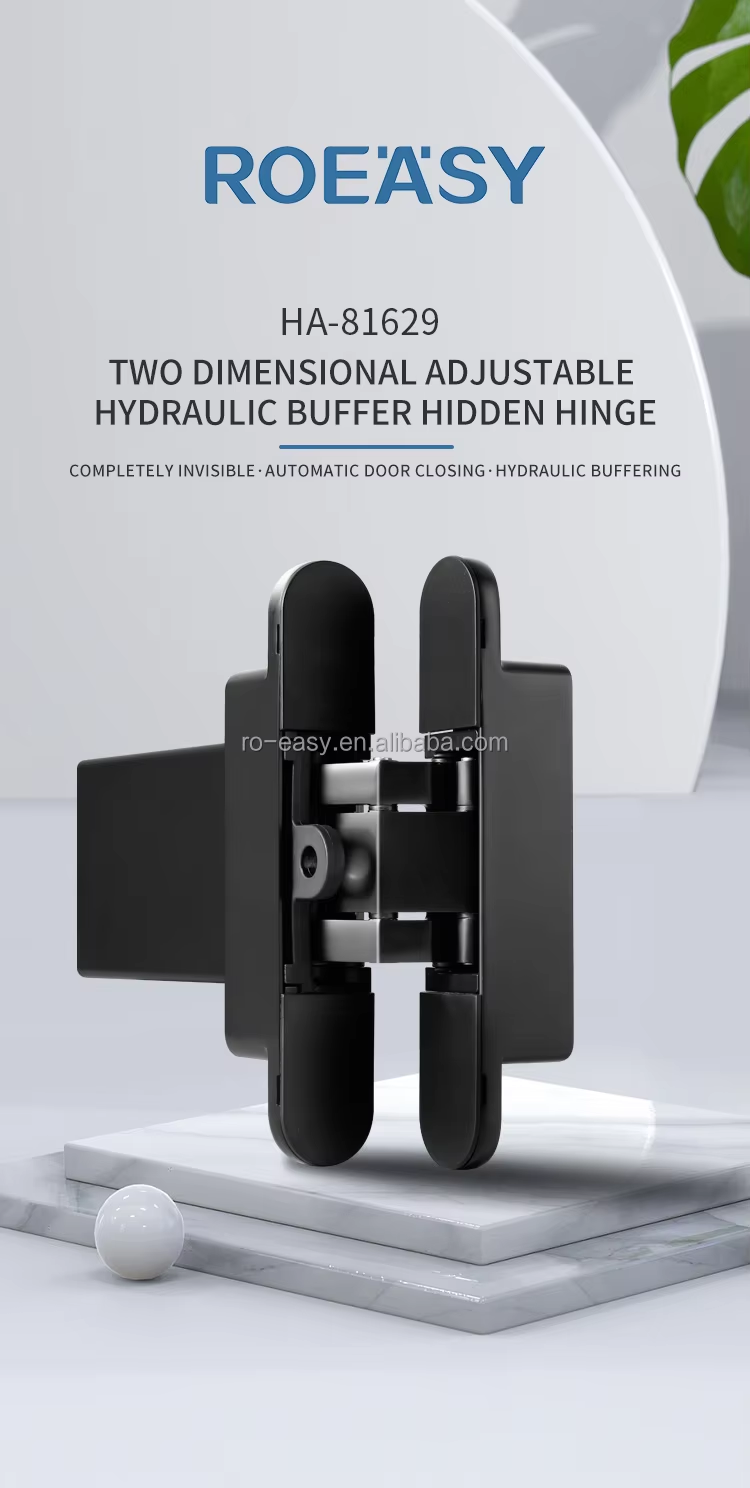

ROEASY HA-81629-60 60kg Concealed Door Hinge Soft Closing Heavy Duty Hydraulic Hidden Door for Modern Bedroom Design

Heavy Duty 125 Degree 2D Adjustable Hidden Door Hinge

Inquiry now

Information

Place of Origin:	Guangdong,China
Brand Name:	ROEASY
Product Name:	60kg Concealed Door Hinge Soft Closing Heavy Duty Hydraulic Hidden Door
Material:	Zinc Alloy
Surface Treatment:	Painting\Powder Coating\Plating\Polishing
MOQ:	1000 pcs
Packing:	Color Box / 6 sets/carton
Certification:	SGS, ISO 9001:2015

Description

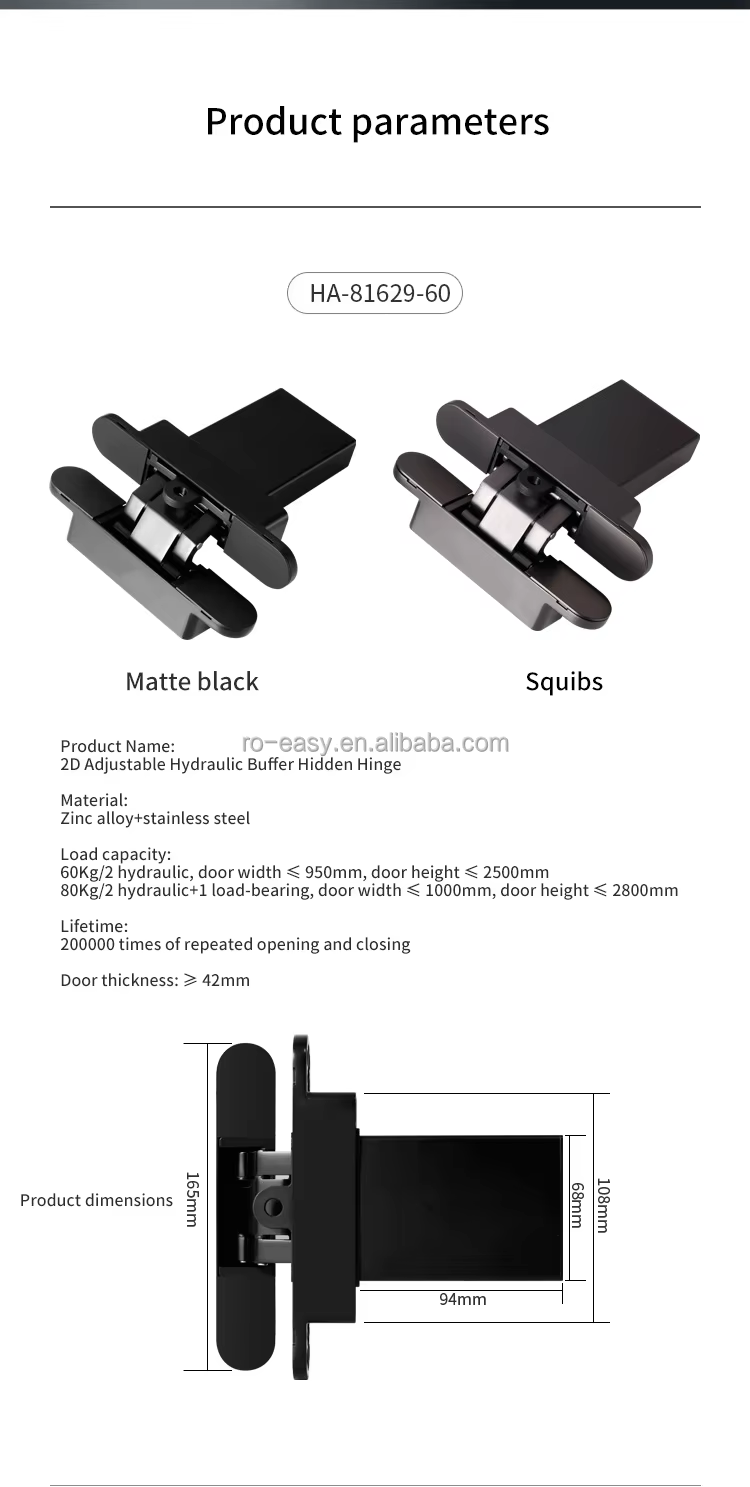

Model Number:	HA-81629-60

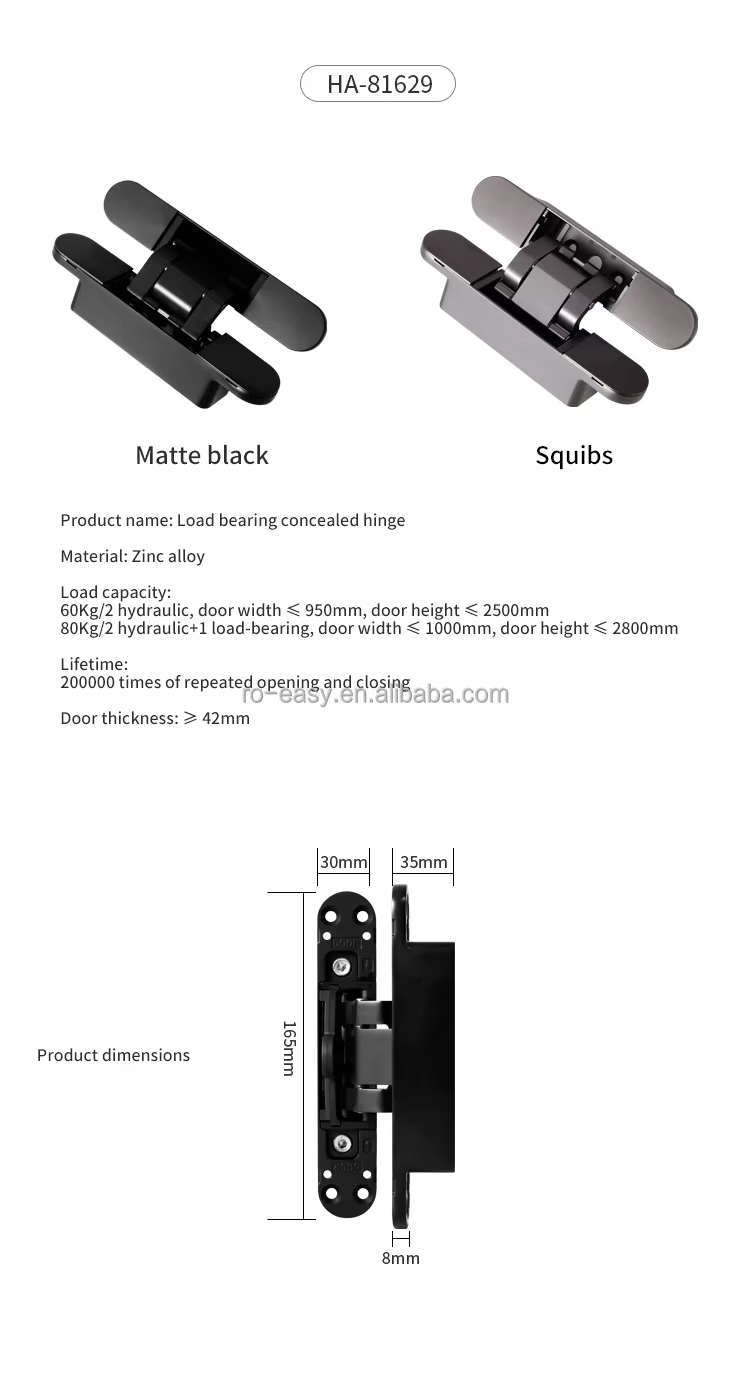

Size:	165*30mm
Material:	Zinc-alloy+ Stainless Steel
Door Thickness:	≥42mm

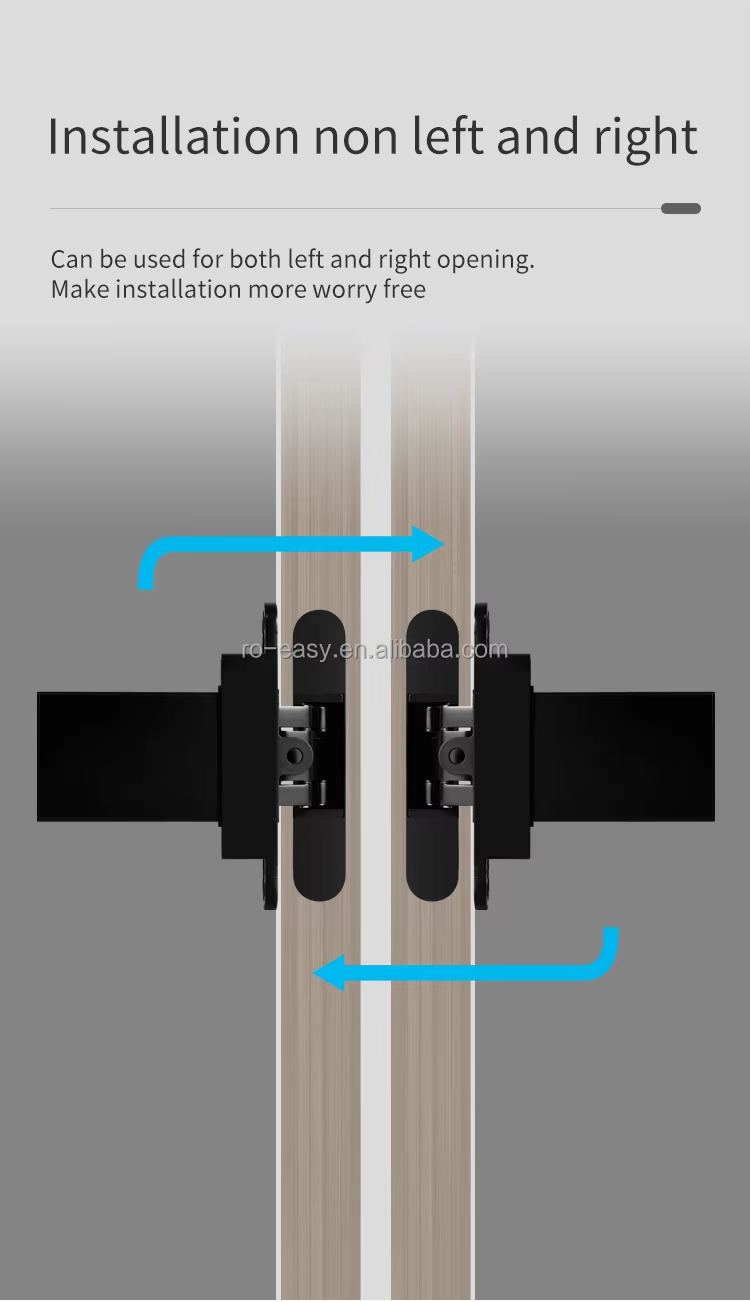

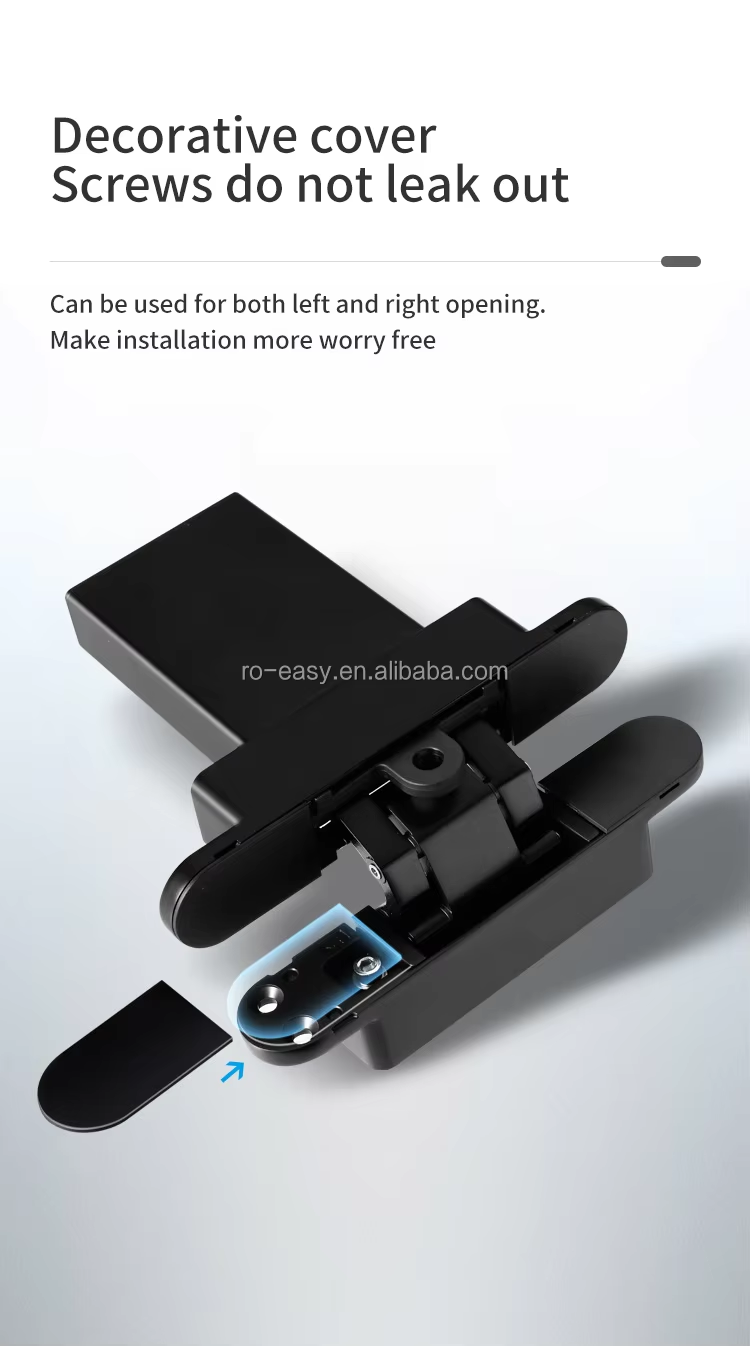

Features:	Can be used for both left and right opening.

Specifications

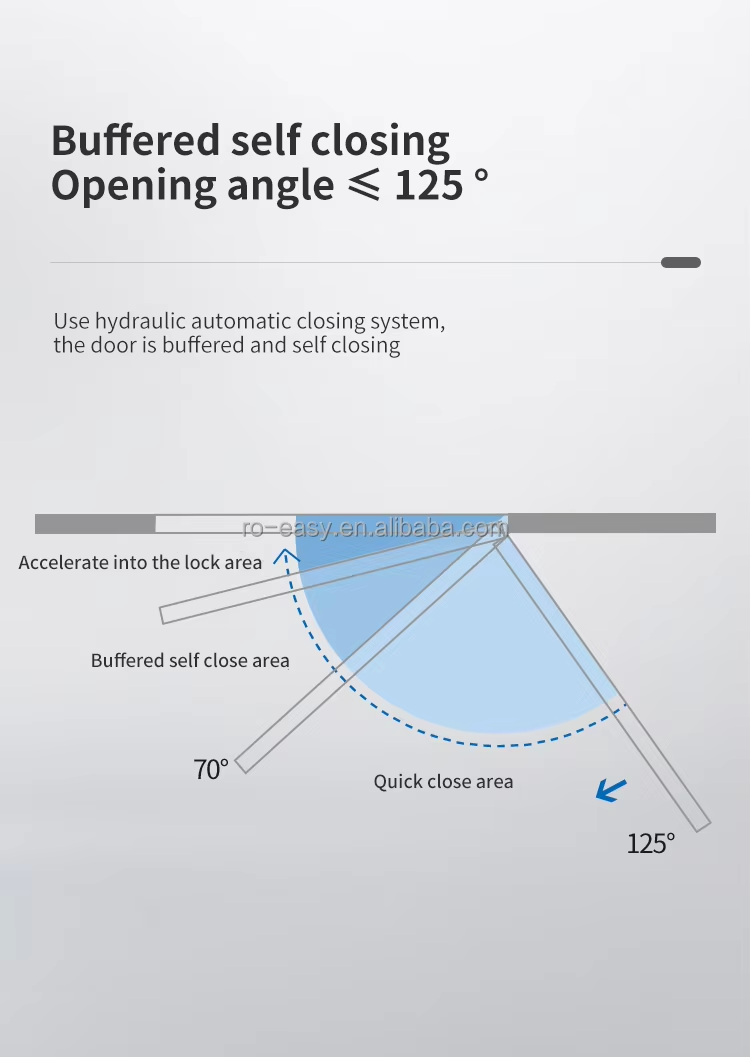

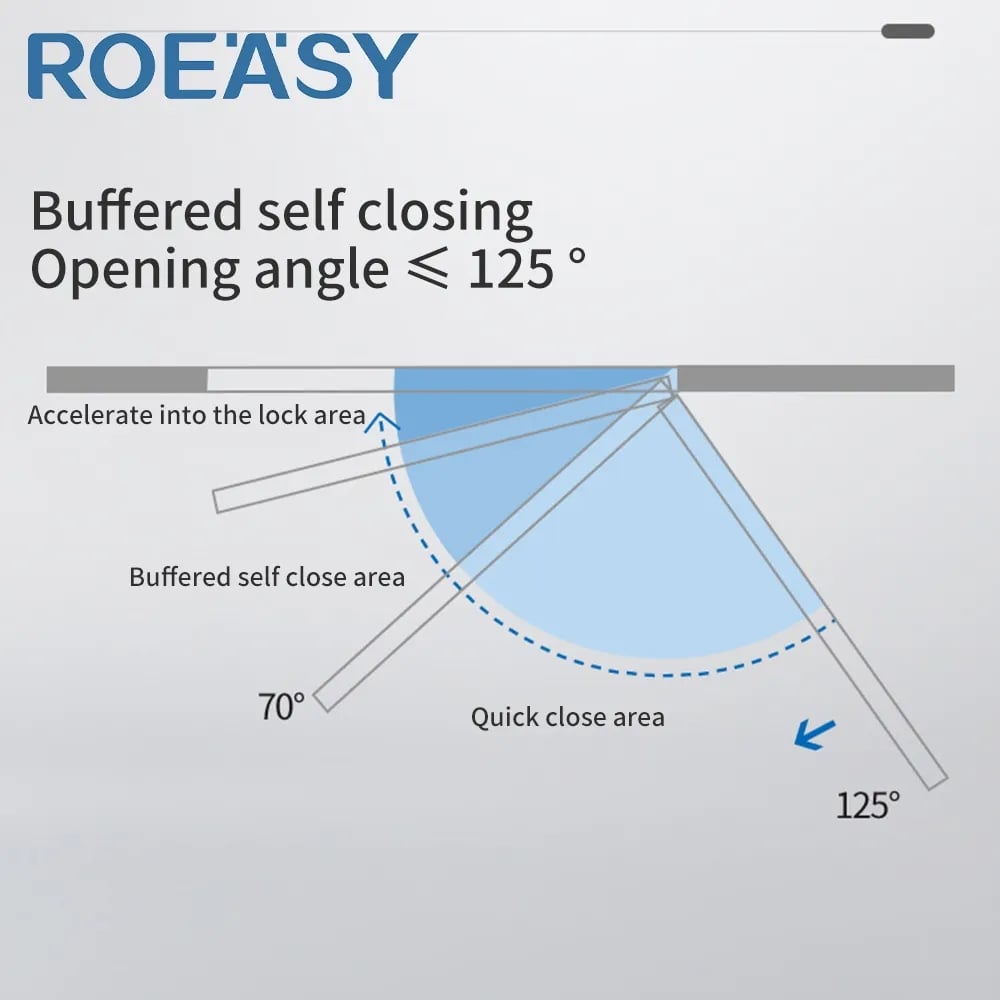

Opening Angle	125 degree
Close Way	Soft-closing，2D adjustable

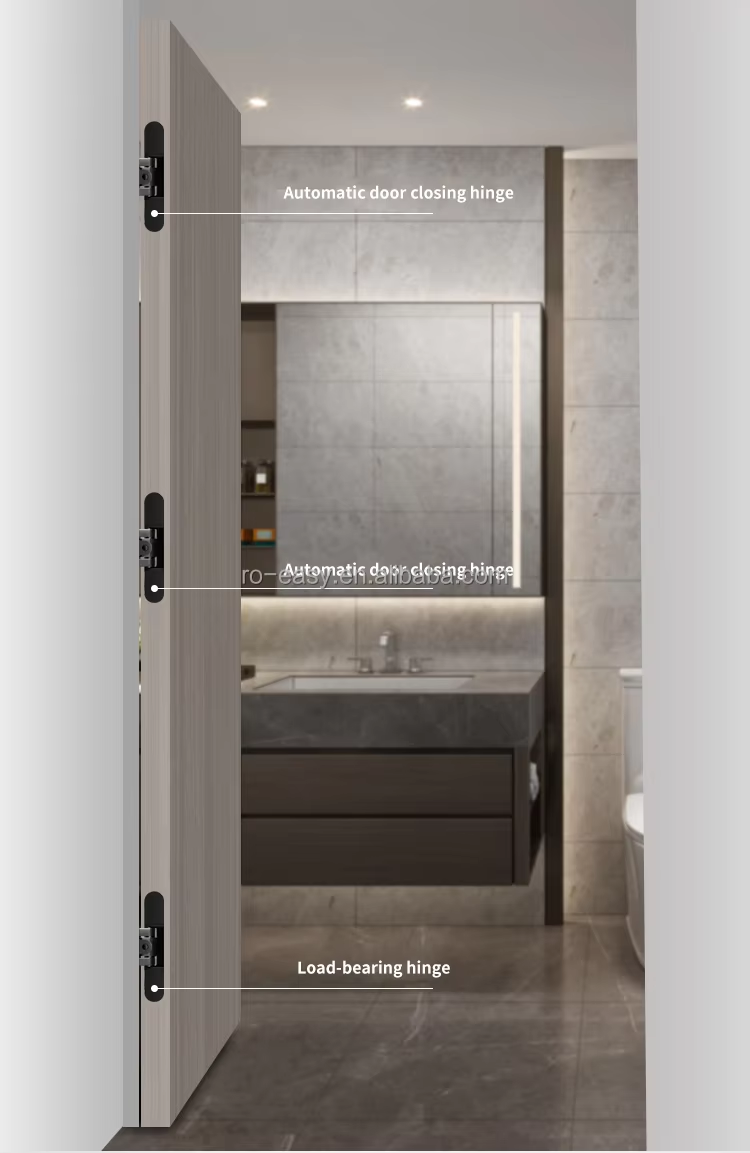

Load Capacity	60Kg/2 hydraulic, door width≤950mm, door height≤2500mm

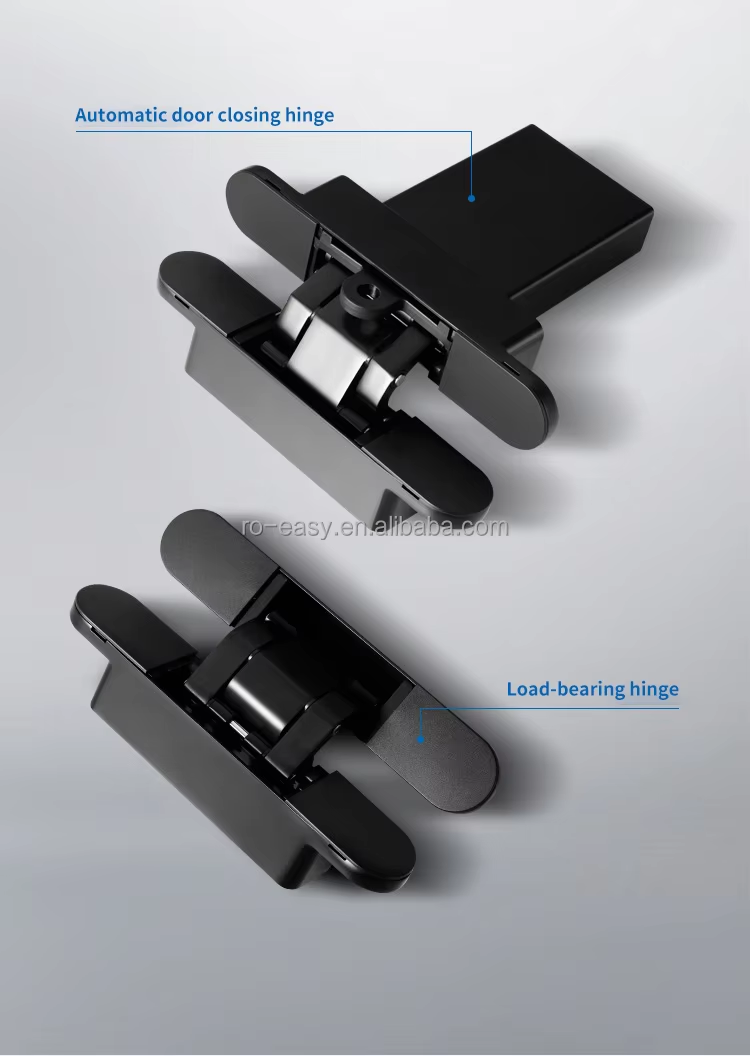

	80Kg/2 hydraulic+1 load-bearing, door width≤1000mm, door height≤2800mm

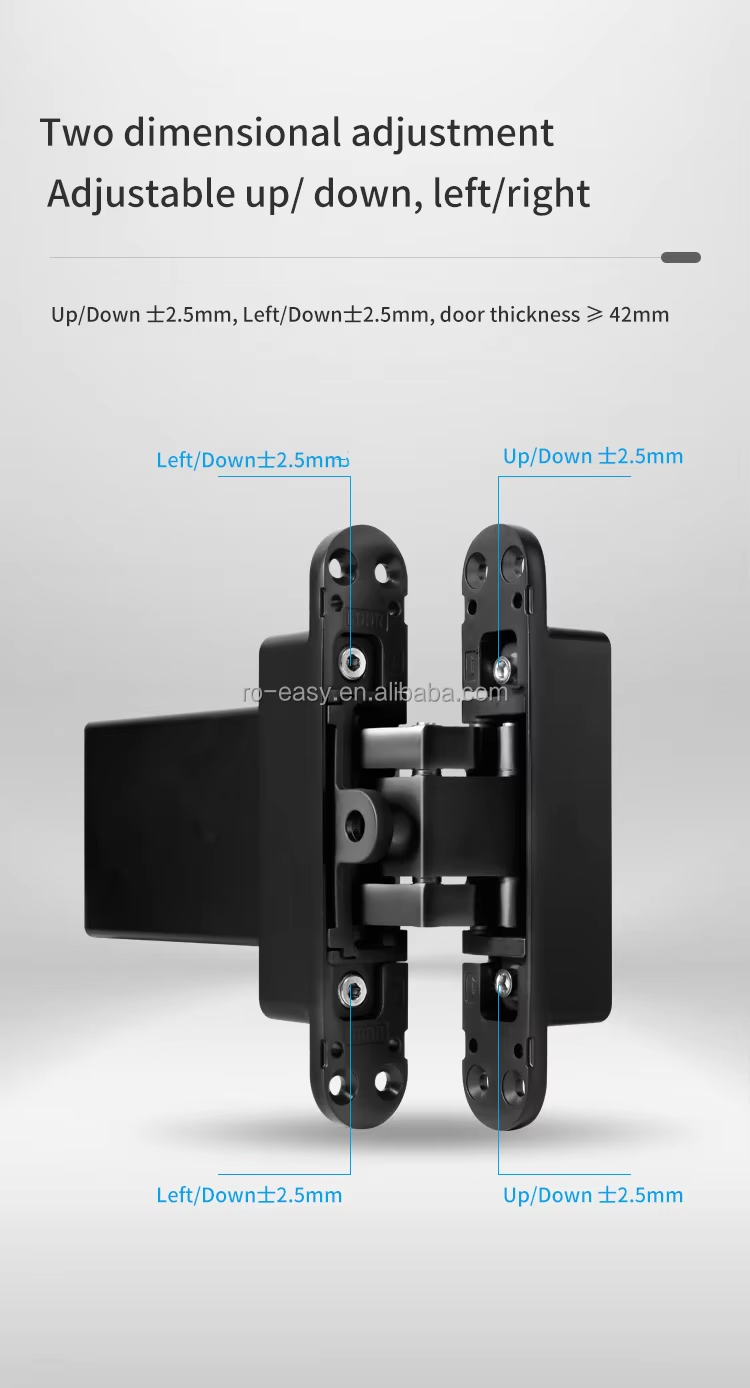

Adjustment	2D Adjustable, up&down ±2.5mm, left&down ±2.5mm
Acid Salt Spray Test	48h
Life Cycle Test	200000 Times

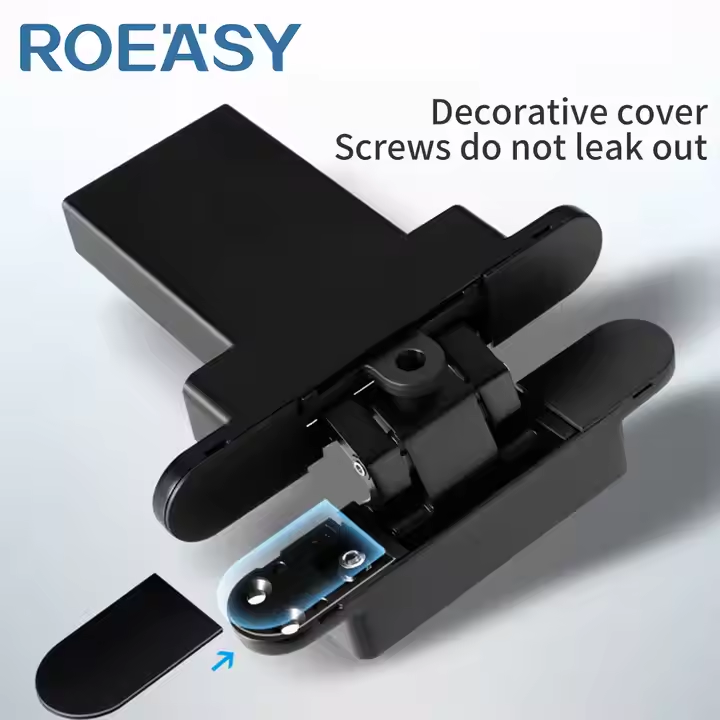

Optional Accessories	Cup Covers,Screws

Competitive Advantage

Fast delivery：3-7 days sample shipping, 25-35days production.

Self-own factory: Over 31 years manufacturer experience in furniture hardware

One-stop solution service of furniture hardware,support OEM/ODM Design.

Project Solution Capability:

Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.

More than 30 Years of experience in furniture hardware, with 15,000㎡ factory and 10,750㎡Total floorspace

Supplier for Fortune 500 companies,OEM for well-known brands,

Design-based customization

Competitive OEM factory, ODM services available

10 Patents awarded and 3 Registered trademarks

Supplier assessment procedures / R&D capabilites

Global export expertise / Finished product inspection /On-site material inspection

International warehouse / International services center

Sample-based customization / Design-based customization

Minor customization / Full customization
