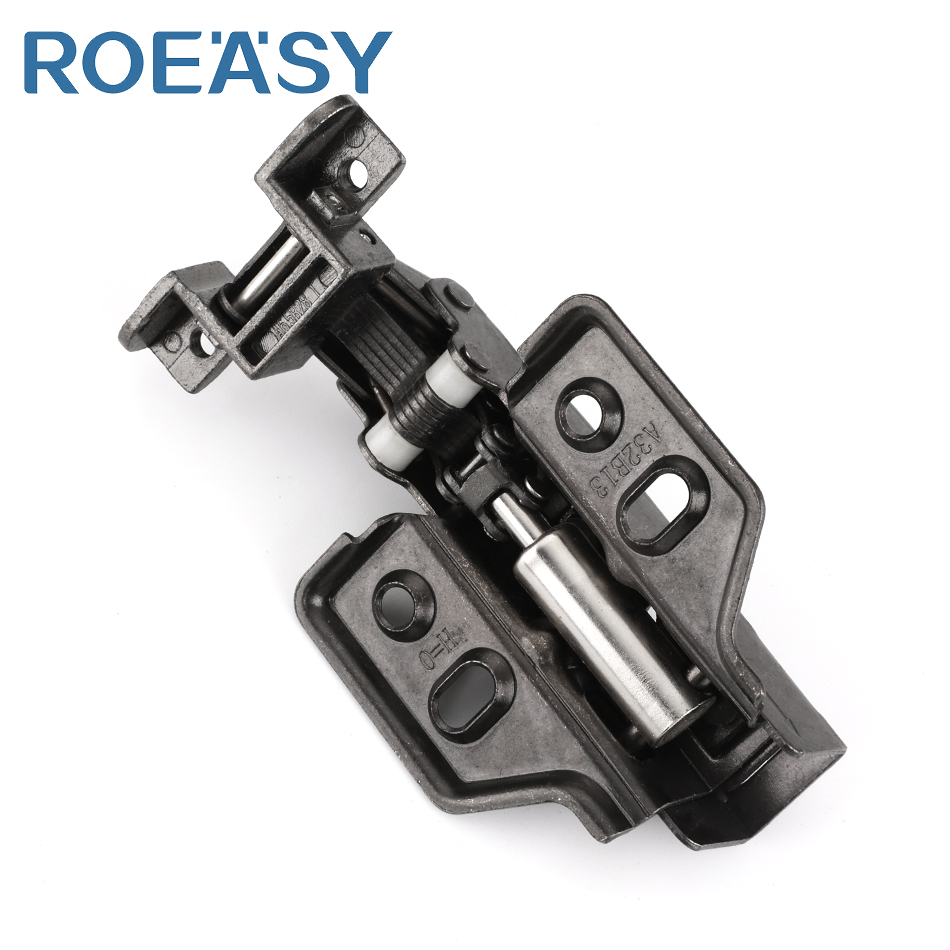

CH-691A-2D-BN-F Hinge is made by cold-rolled steel,
Double plated surface treatment: brass and black nickle

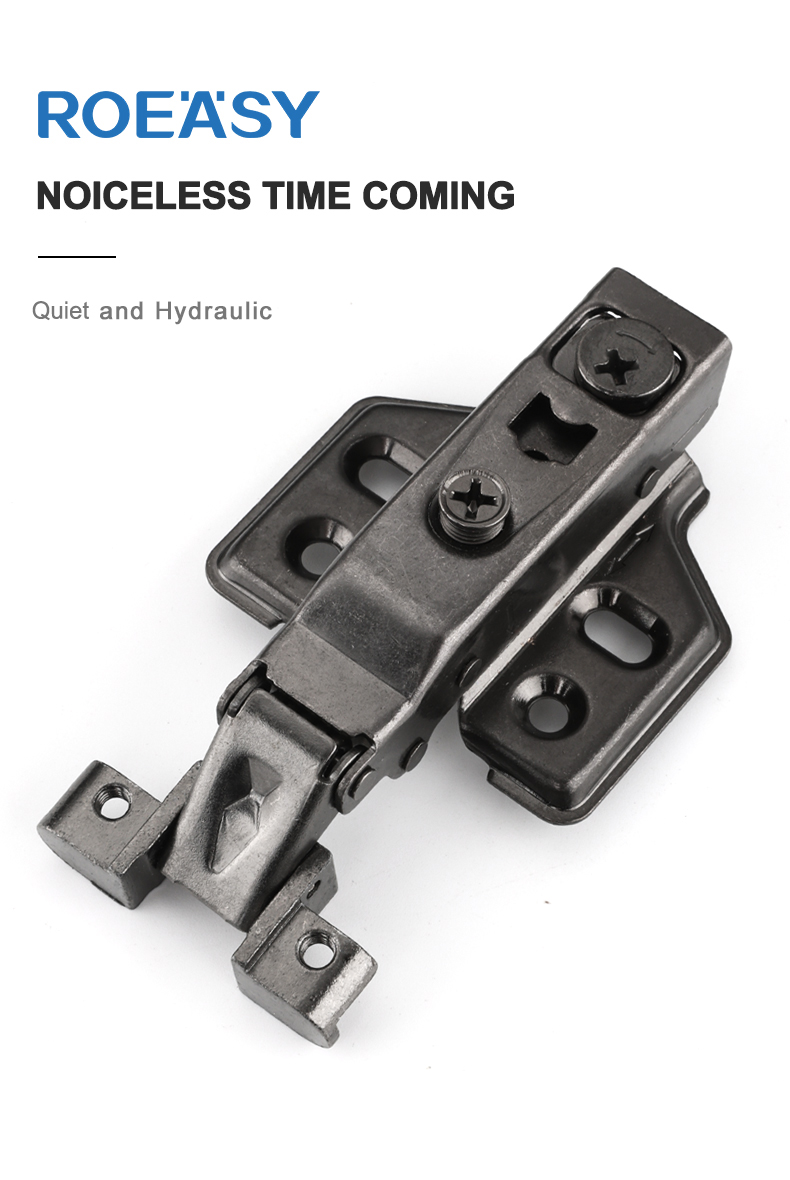

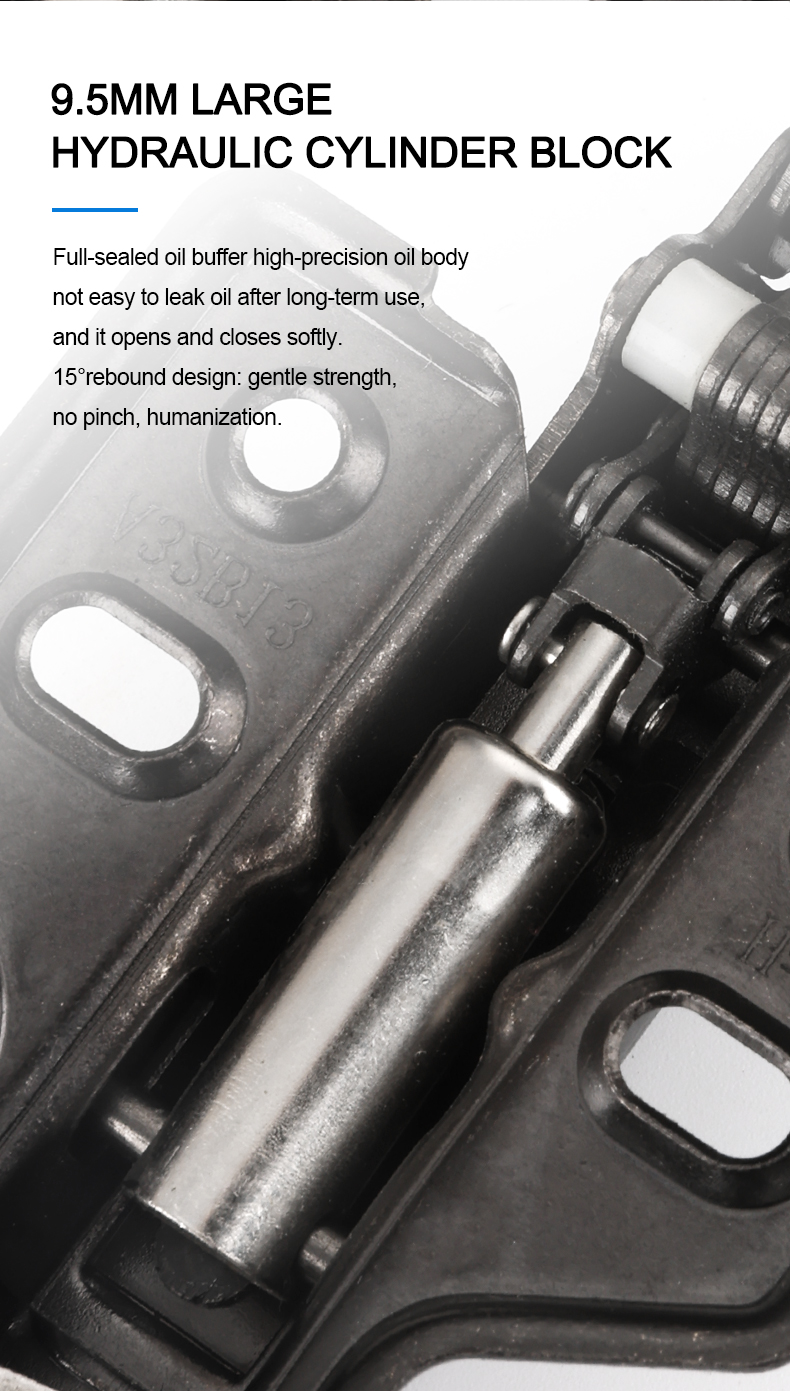

Soft closing function

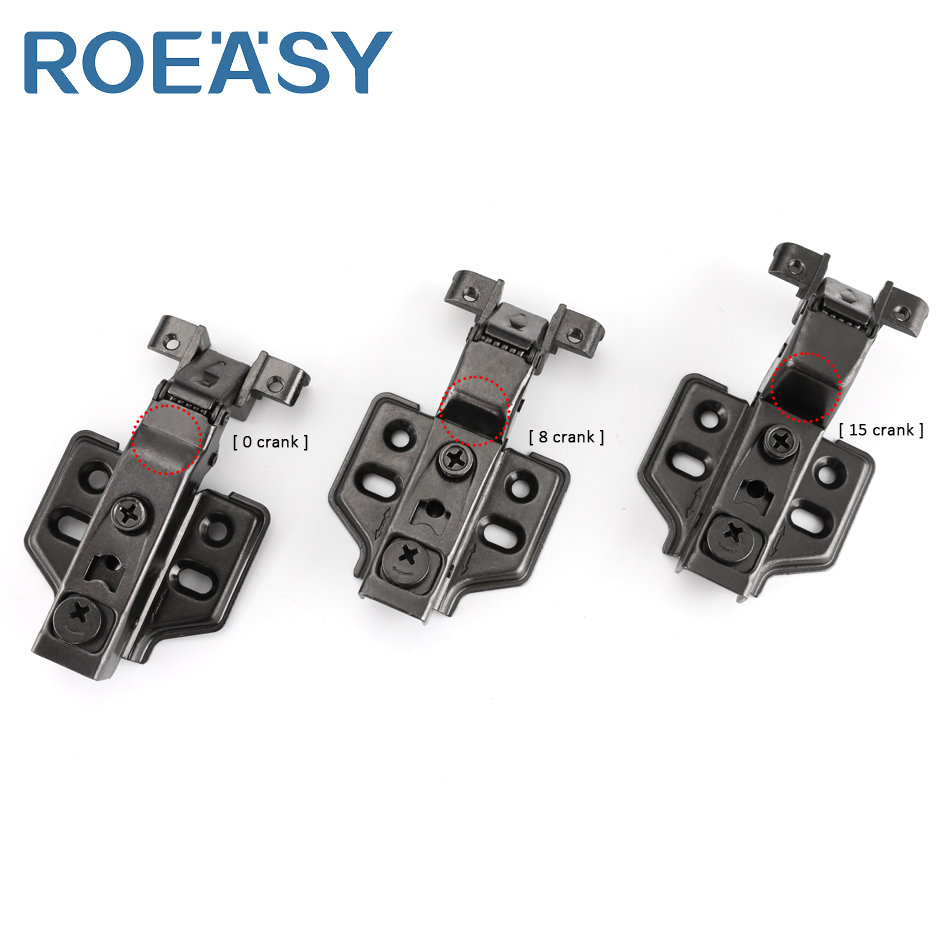

Three specifications: full overlay, half-overlay and inset .
Packing:100pcs/ctn (bulk), support customized.

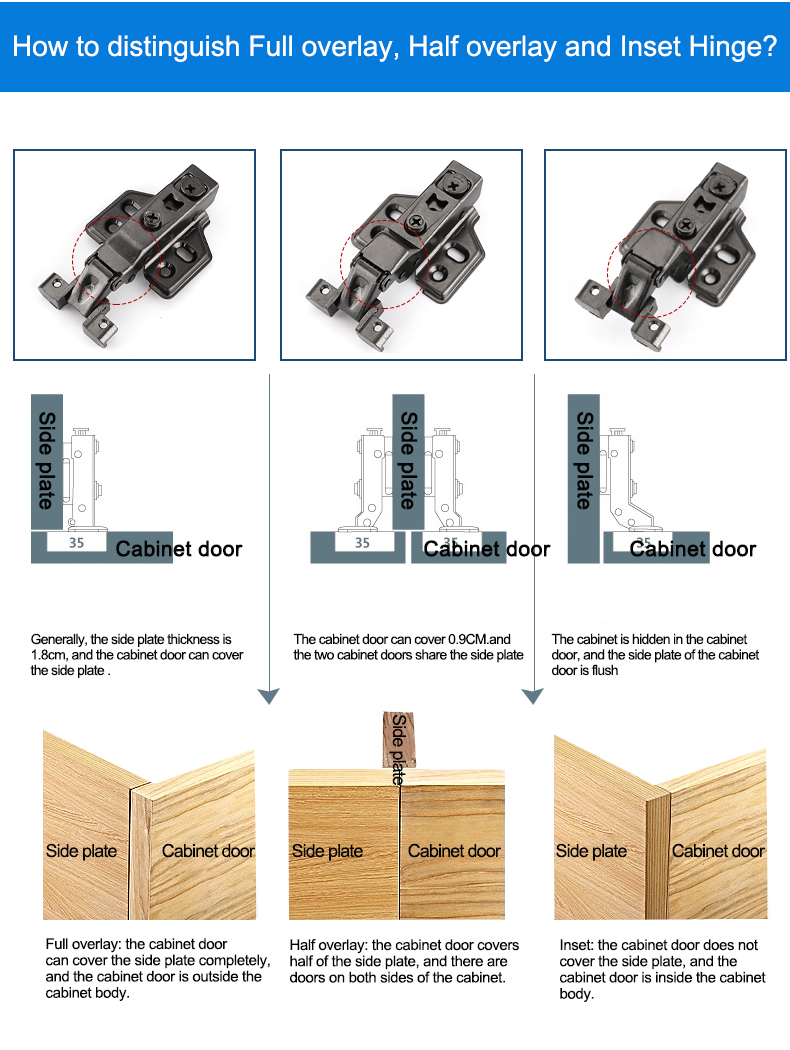

Full overlay: the cabinet door can cover the side plate completely, and the cabinet door is outside the cabinet body.
Half overlay: the cabinet door covers half of the side plate,and there are doors on both sides of the cabinet.
Inset: the cabinet door does not cover the side plate, and the cabinet door is inside the cabinet body.

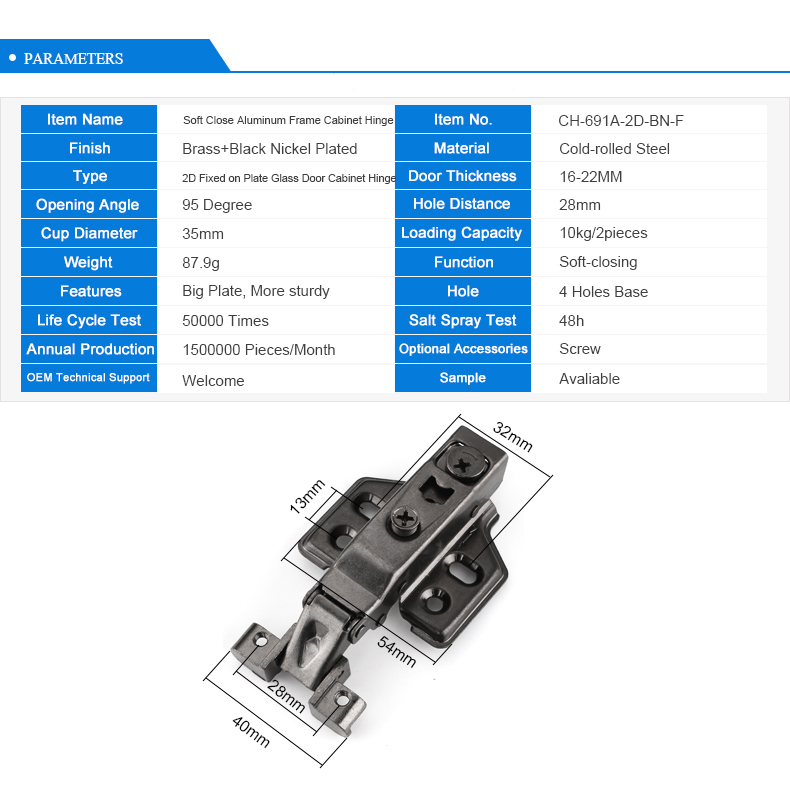

| Hinge Type | 2D Aluminum Frame Cabinet Hinge |
| Material | Cold-rolled steel |
| Surface Treatment | Nickel plated |
| Size | 0 Crank (Full Overlay) |
| Door Thickness | 14-22MM |
| Opening Angle | 95 degree |
| Diameter of Hinge Cup | 35MM |

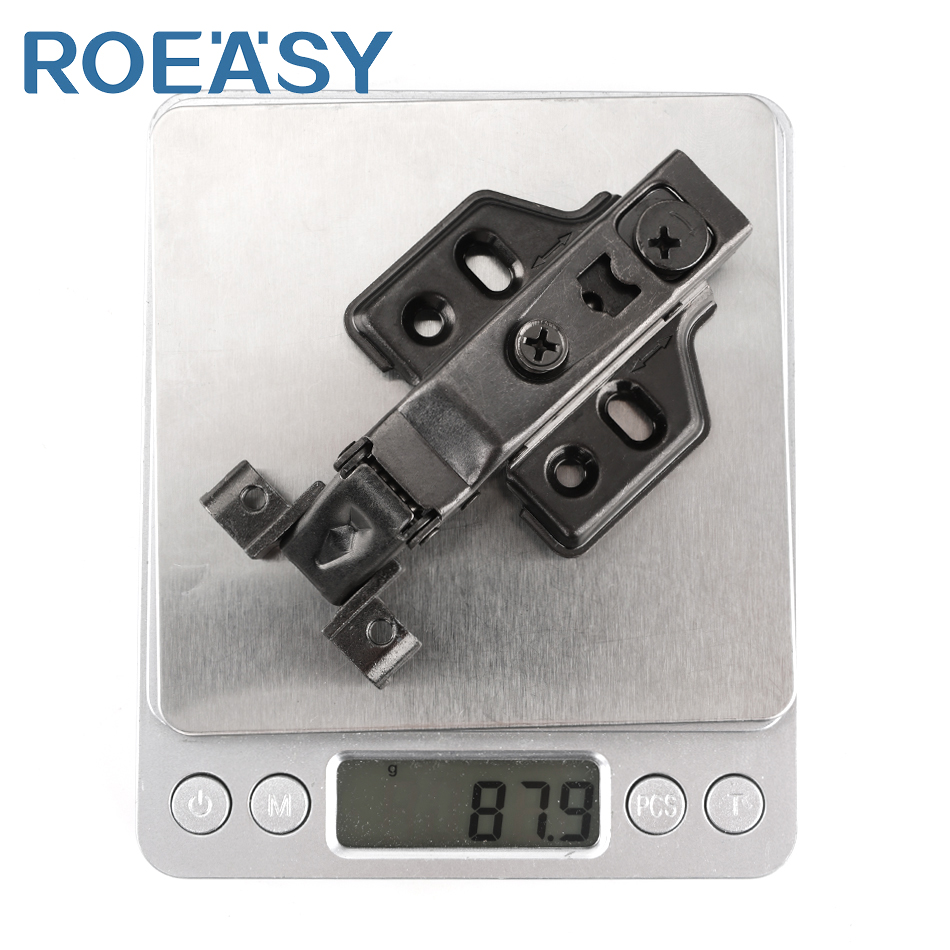

| Weight | 87.9 gram/piece |
| Close Way | Soft-closing |

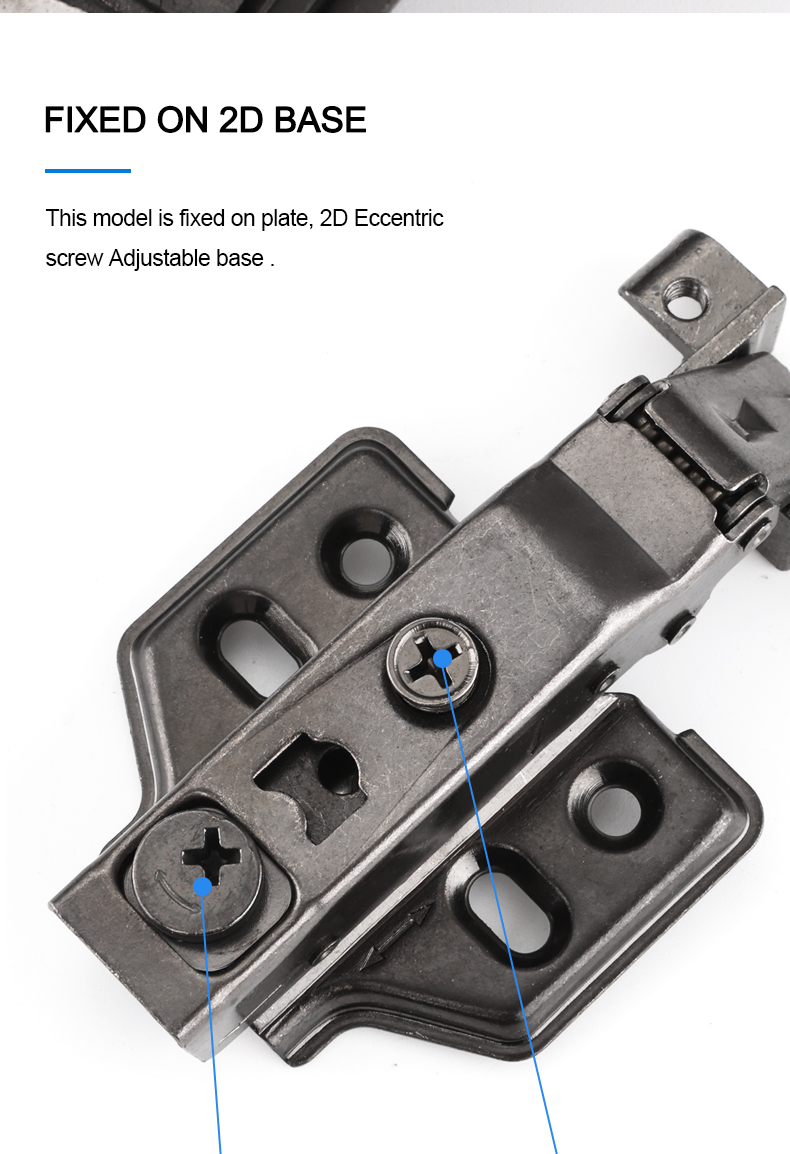

| Installation | Fixed Type |
| Optional Accessories | Screws |

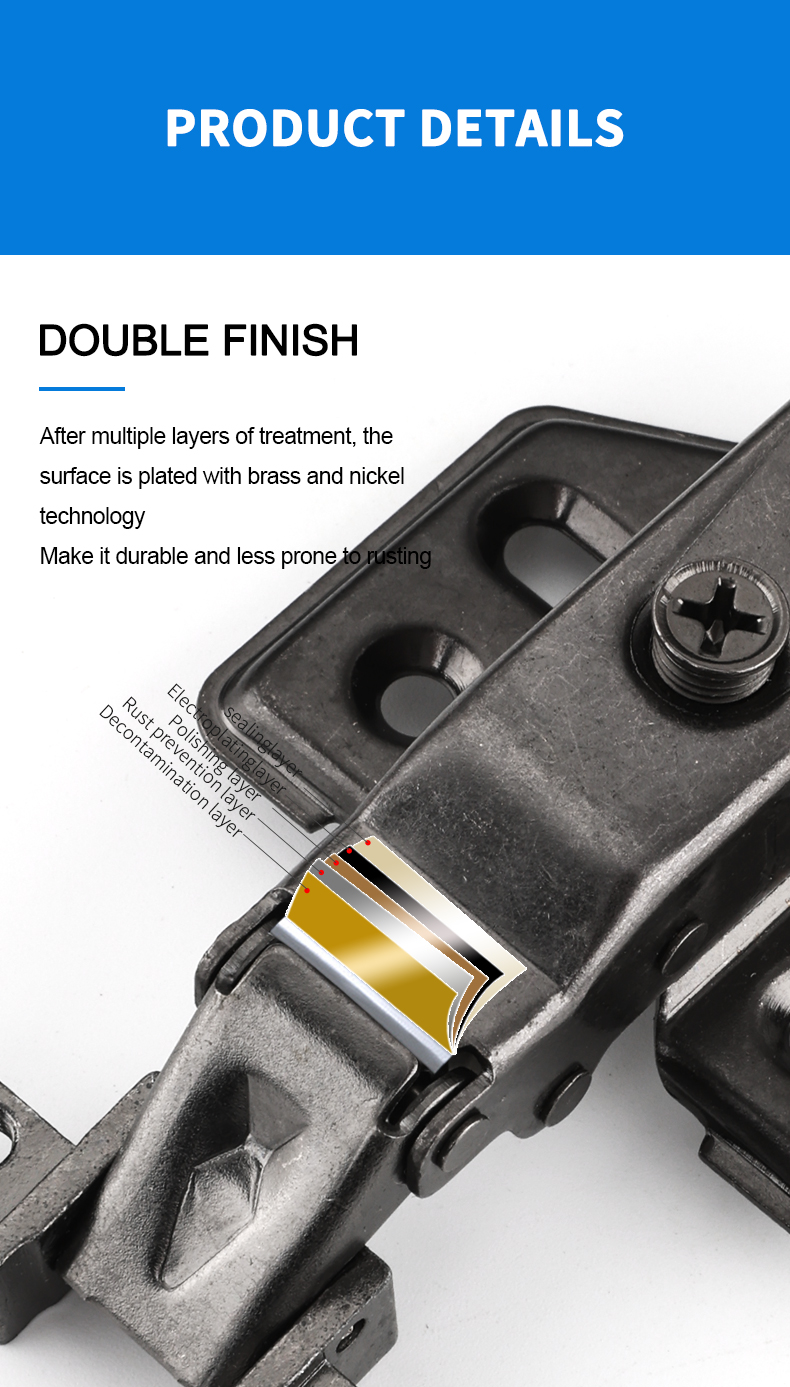

Double Plated: Brass+Nickle Plated
Fast delivery：3-7 days sample shipping, 25-35 days production.
Self-own factory: Over 31 years manufacturer experience in furniture hardware
One-stop solution service of furniture hardware,support OEM/ODM Design.
Project Solution Capability:
Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.
