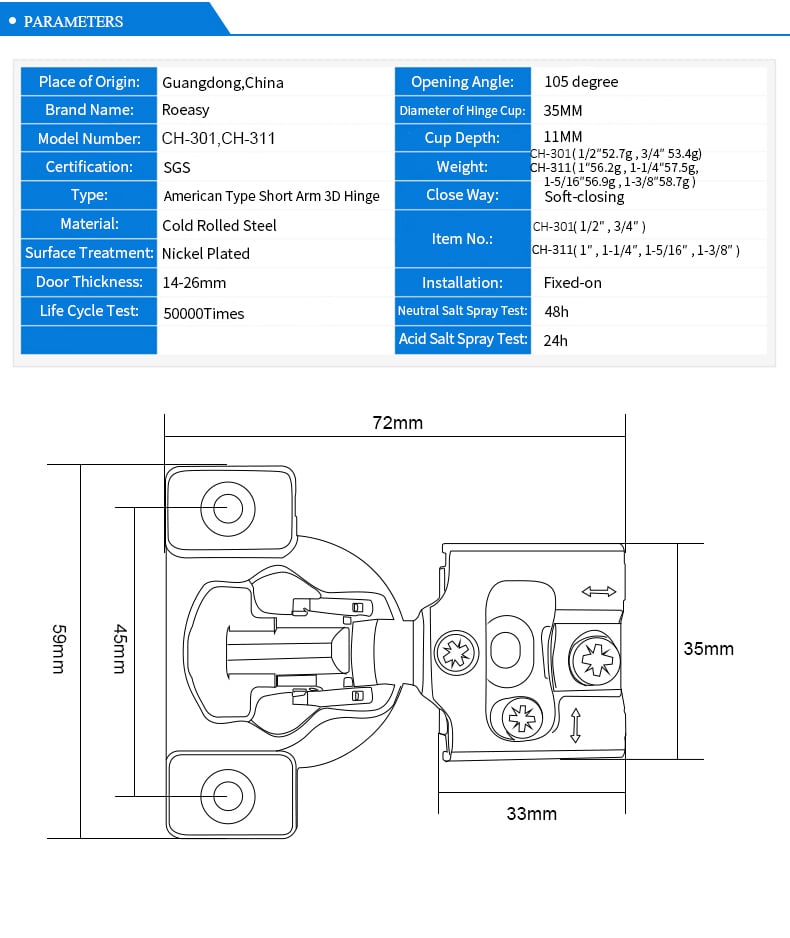

| Place of Origin: | Guangdong,China |
| Brand Name: | ROEASY |

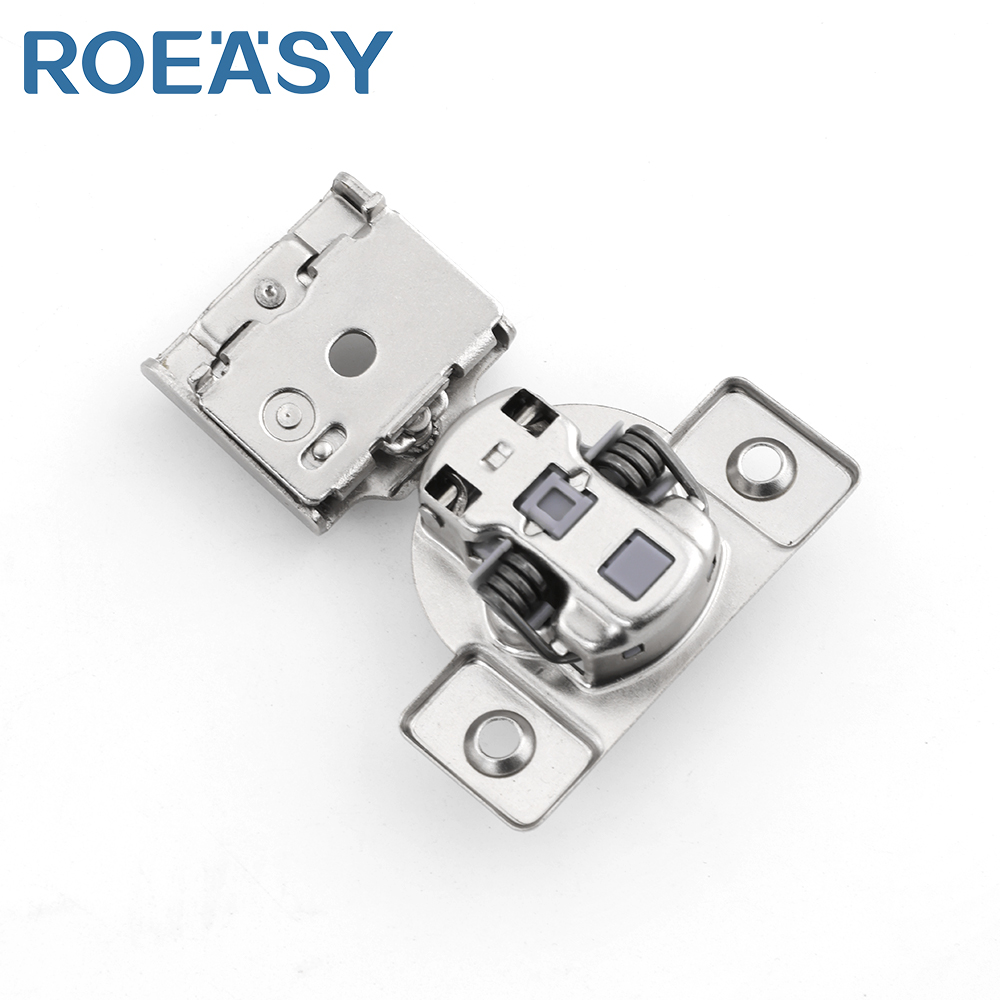

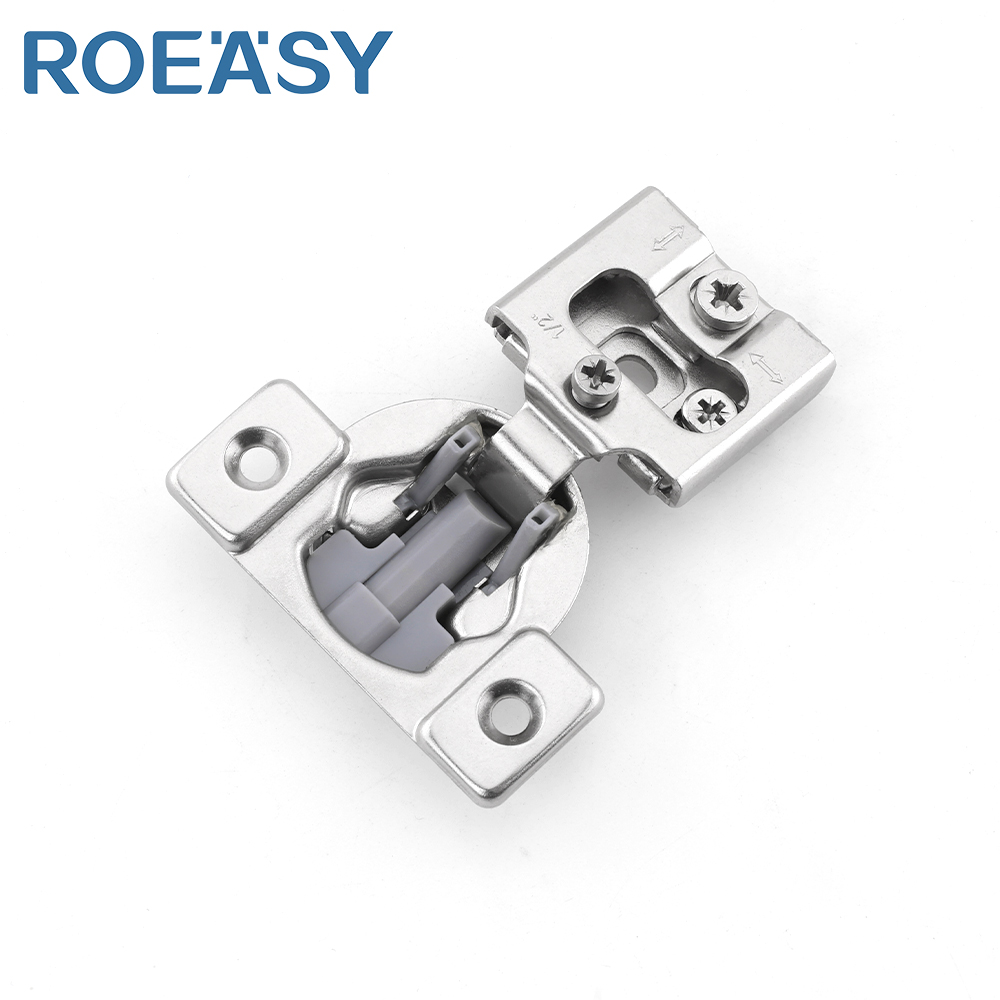

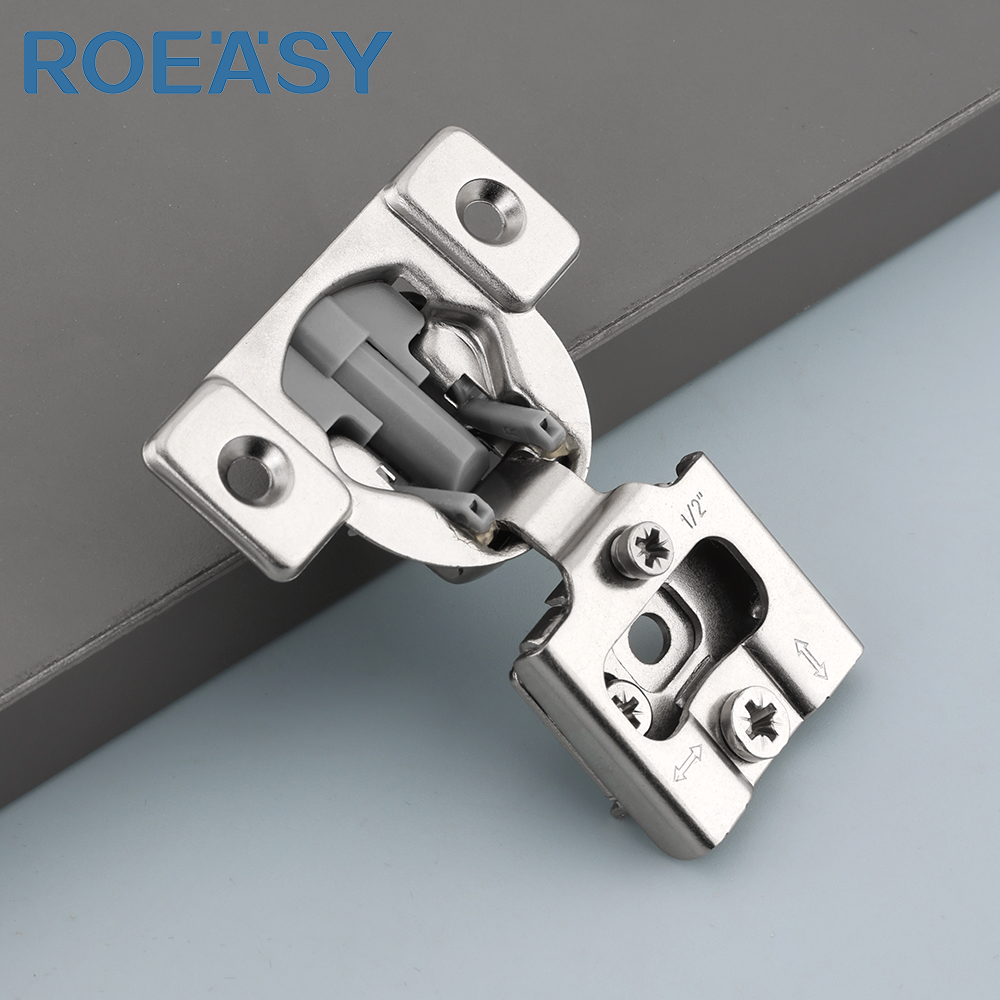

| Product Name: | American Style 35mm Cup Short Arm Cabinet Hinge |
| Material: | Cold Roll Steel+ POM |
| MOQ: | 1000 pcs |
| Packing: | 2 pcs/bag, 5 bags/box, 100pcs/carton |
| Certification: | SGS, ISO 9001:2015 |
|
Model Number: |

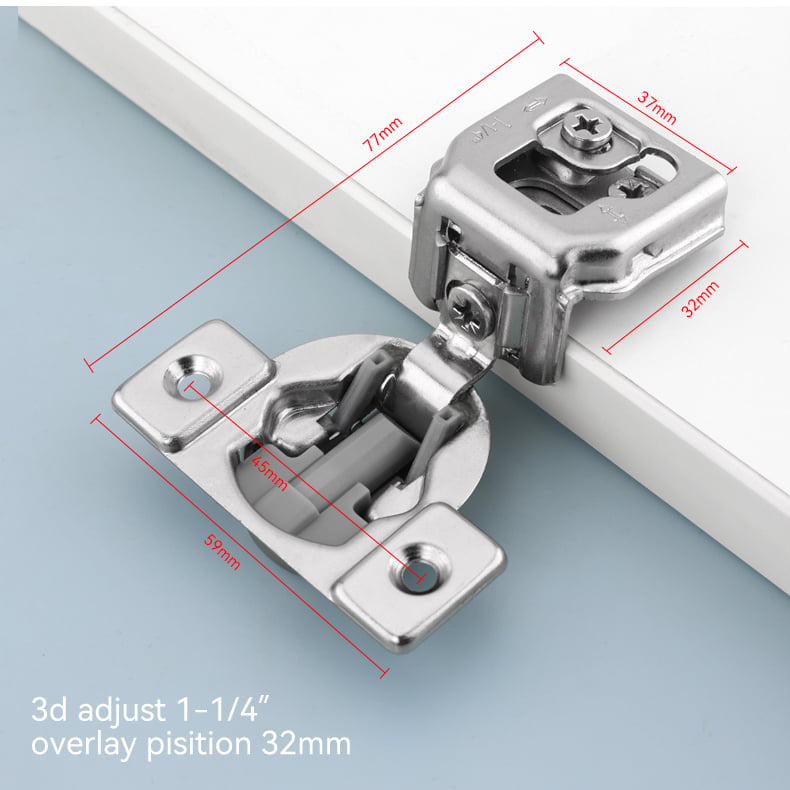

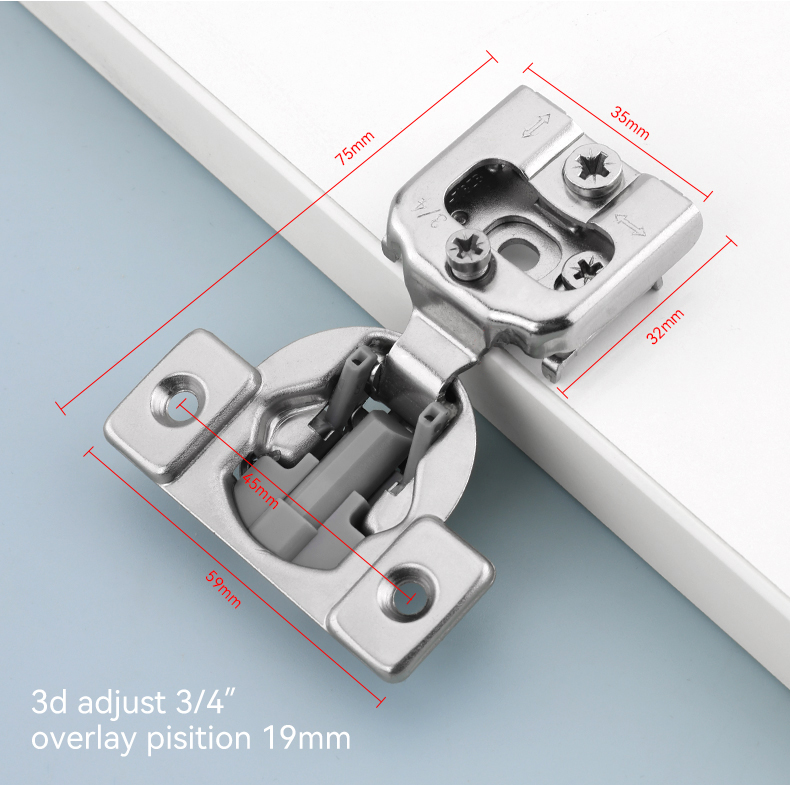

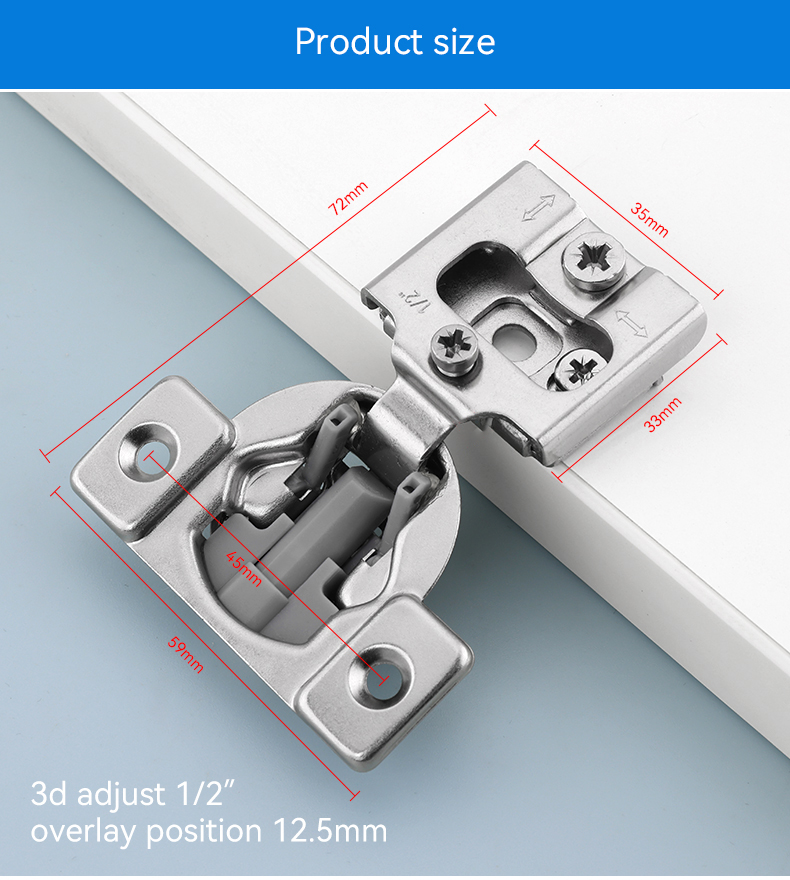

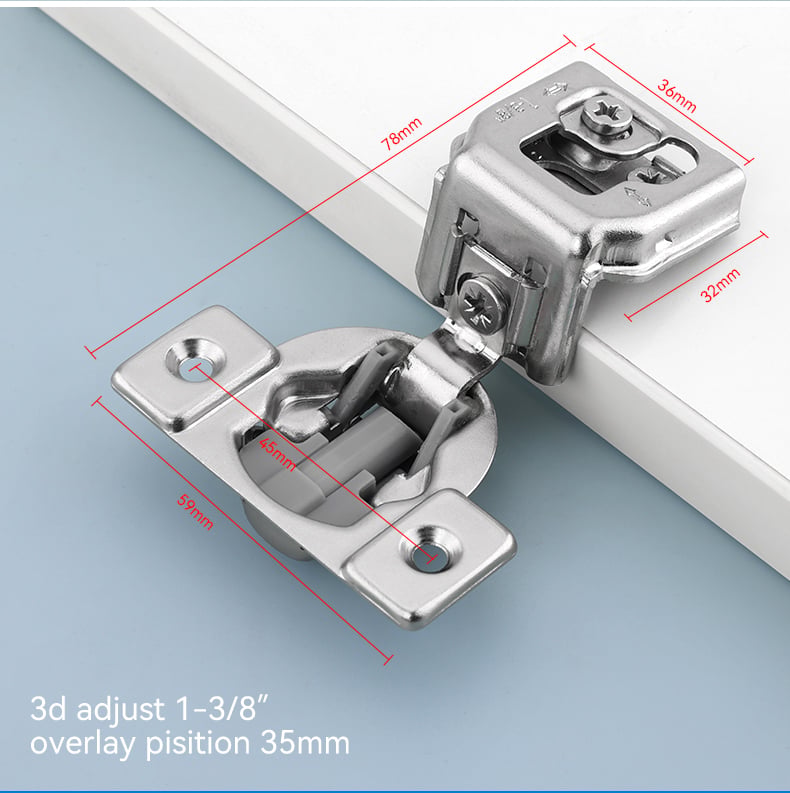

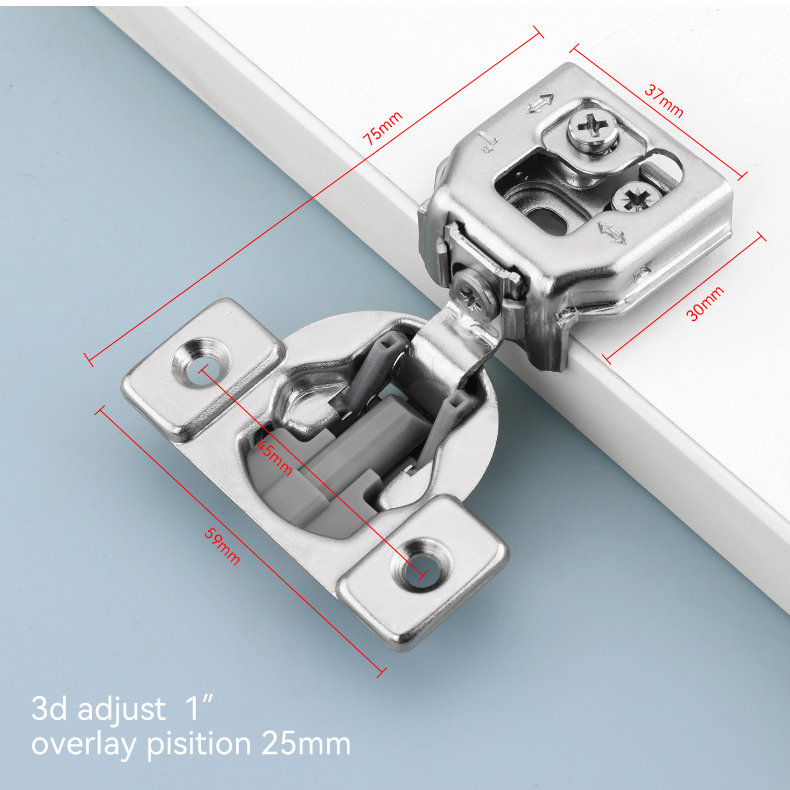

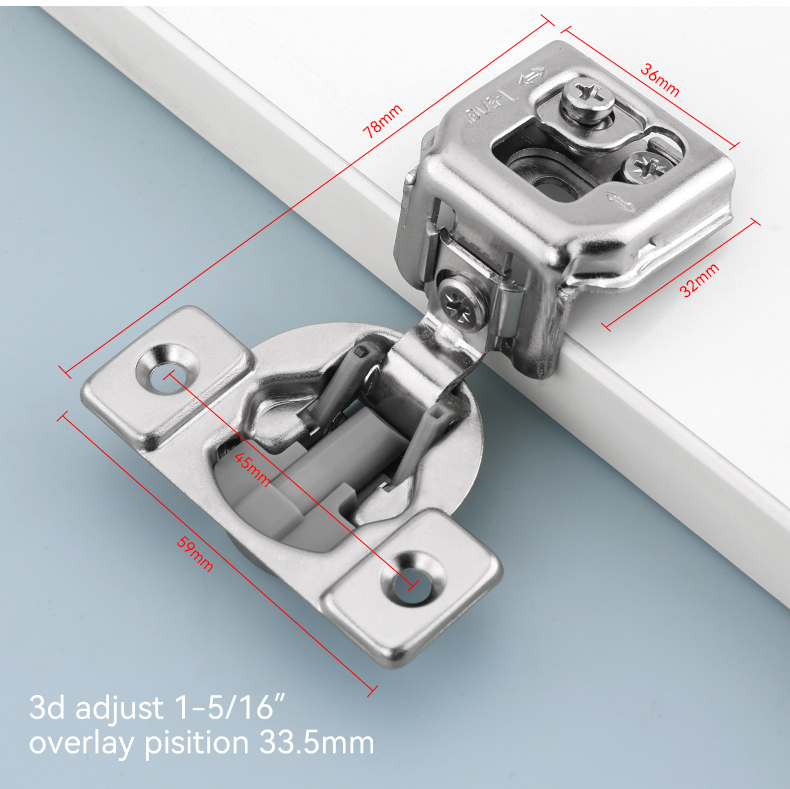

CH-301( 1/2",3/4" ), CH-311(1",1-1/4",1-5/16",1-3/8") |
|

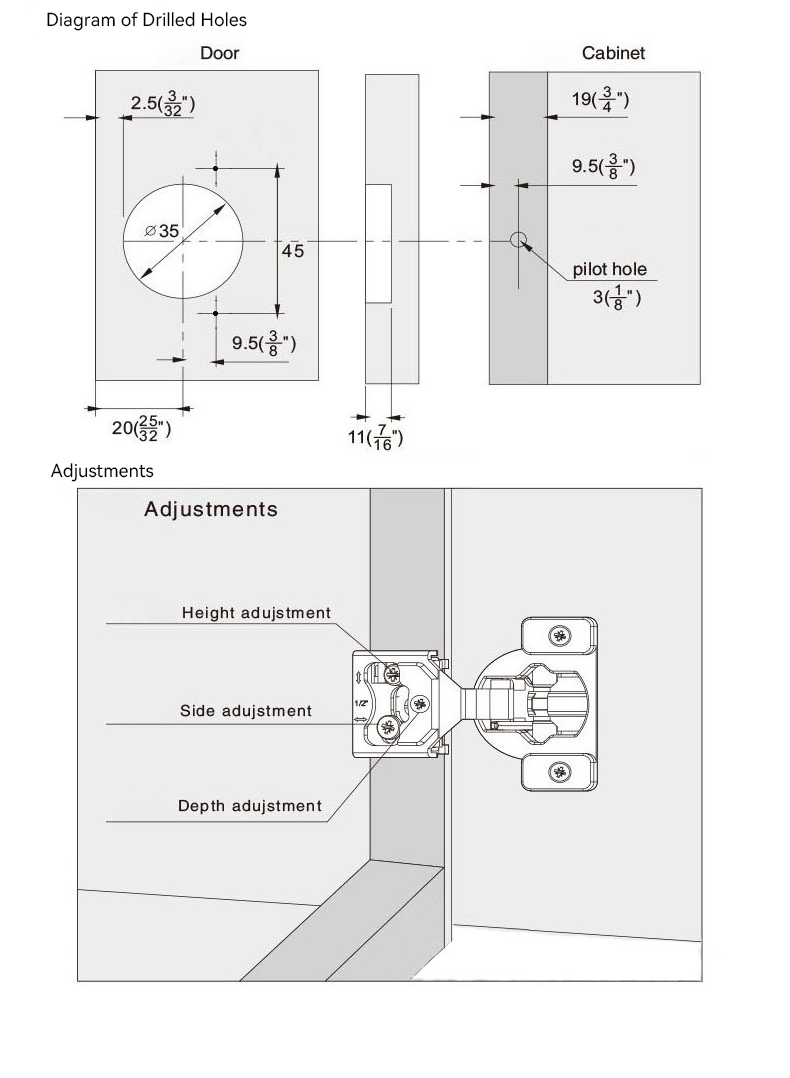

Cup Head Hole Distance: |
48mm |
|
Door Thickness: |
14-26mm |
|
Weight: |

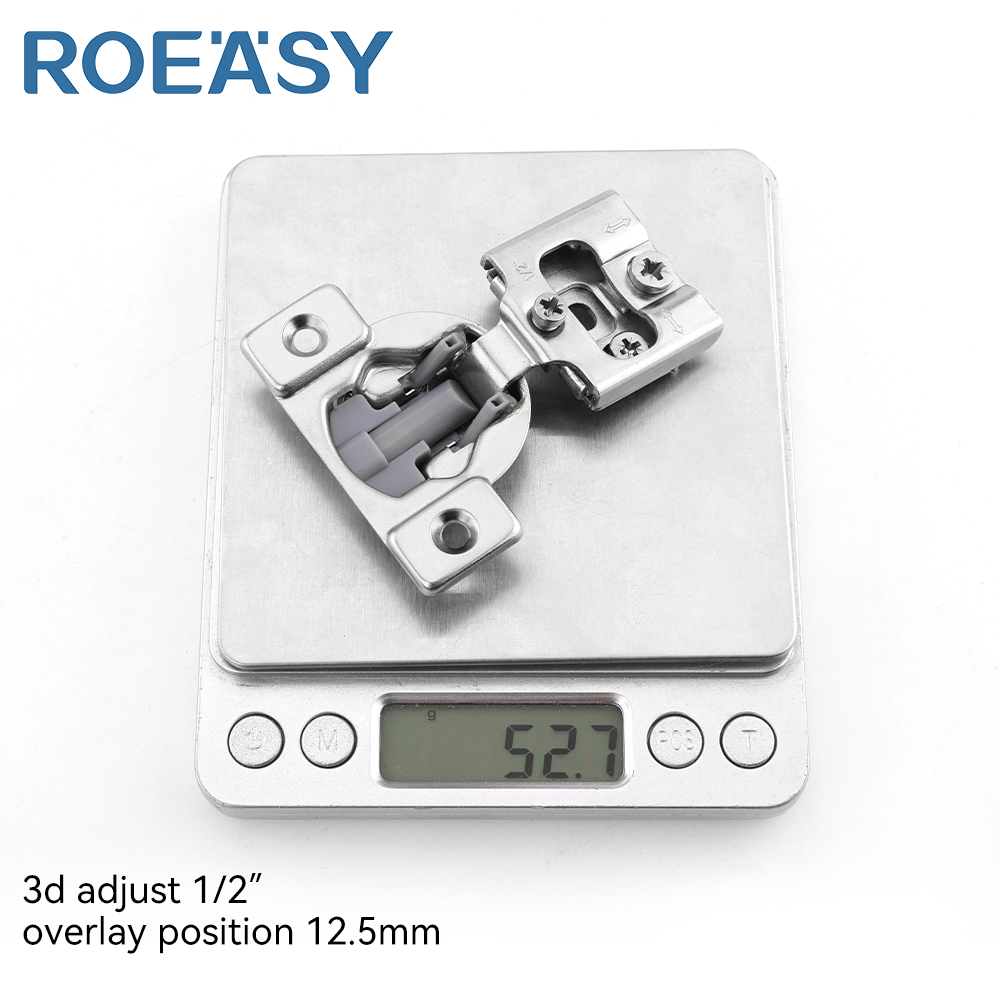

CH-301 1/2" : 52.7 gram/piece CH-301 3/4" : 53.34 garm/piece CH-311 1" : 56.2 gram/piece CH-311 1-1/4" : 57.5 gram/piece CH-311 1-5/16" : 56.9 gram/piece CH-311 1-3/8" : 58.7 gram/piece |

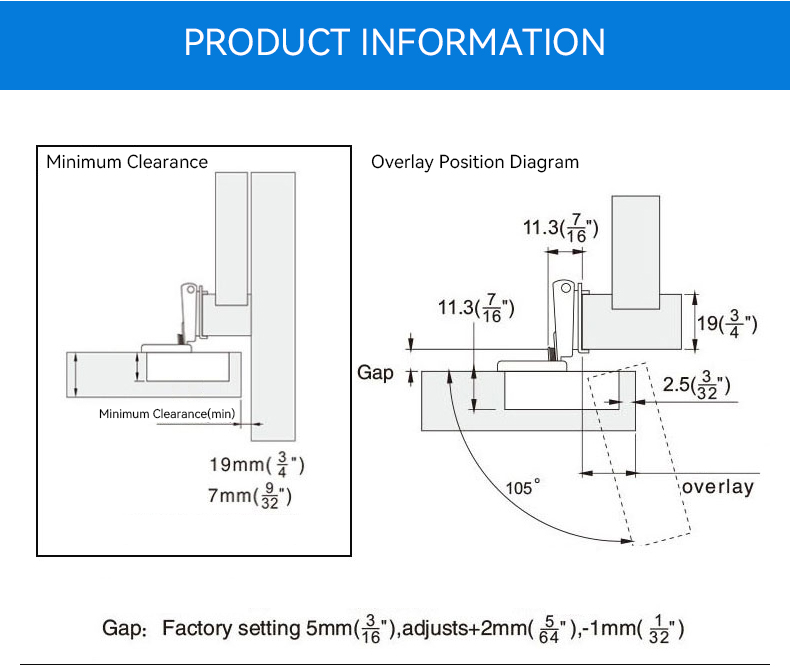

| Opening Angle | 105 degree |

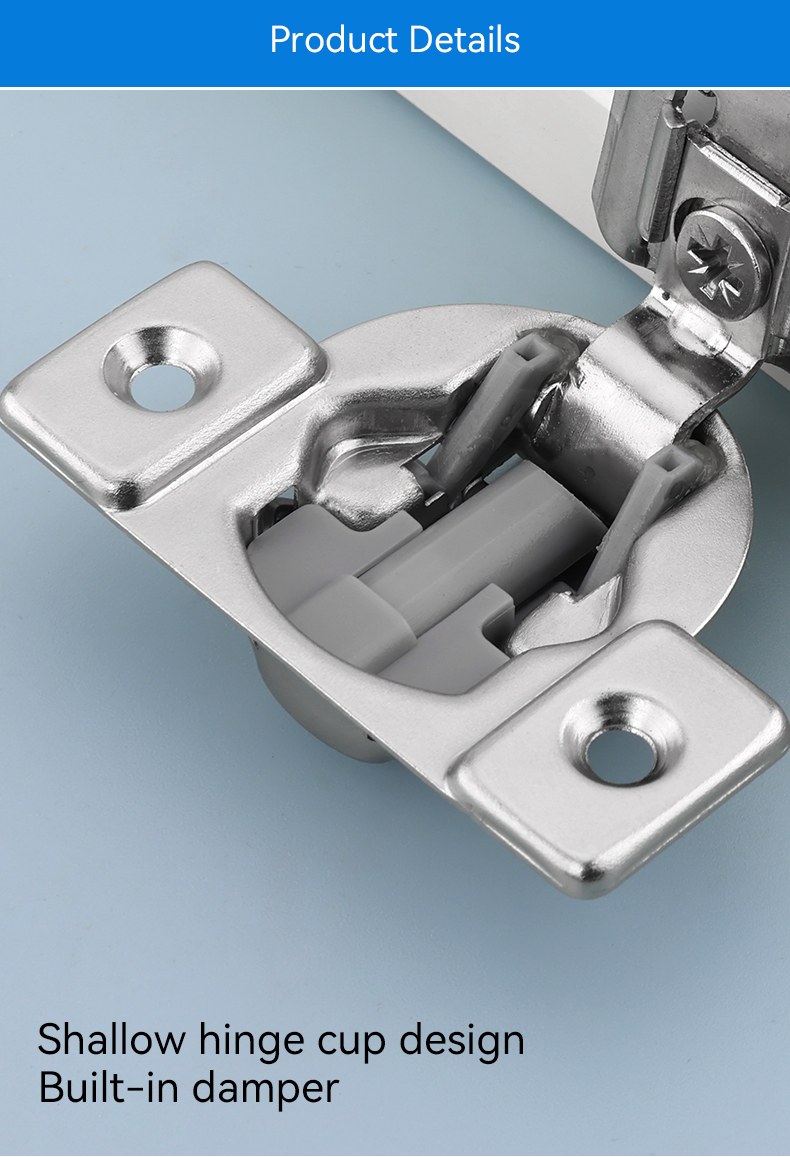

| Close Way | Soft-closing，Hydraulic |
| Feature | Inward opening, parallel closed |
| Installation | Fixed-on |
| Acid Salt Spray Test | 48h |
| Life Cycle Test | 50000 Times |
| Optional Accessories | Screws |
Fast delivery：3-7 days sample shipping, 25-35days production.
Self-own factory: Over 31 years manufacturer experience in furniture hardware
One-stop solution service of furniture hardware,support OEM/ODM Design.
Project Solution Capability:
Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.
More than 30 Years of experience in furniture hardware, with 15,000㎡ factory and 10,750㎡Total floorspace
Supplier for Fortune 500 companies,OEM for well-known brands,
Design-based customization
Competitive OEM factory, ODM services available
10 Patents awarded and 3 Registered trademarks
Supplier assessment procedures
Global export expertise
Finished product inspection
International warehouse
International services center
Sample-based customization
Design-based customization
Minor customization
Full customization
On-site material inspection
R&D capabilites
