| Place of Origin: | Guangdong,China |
| Brand Name: | ROEASY |

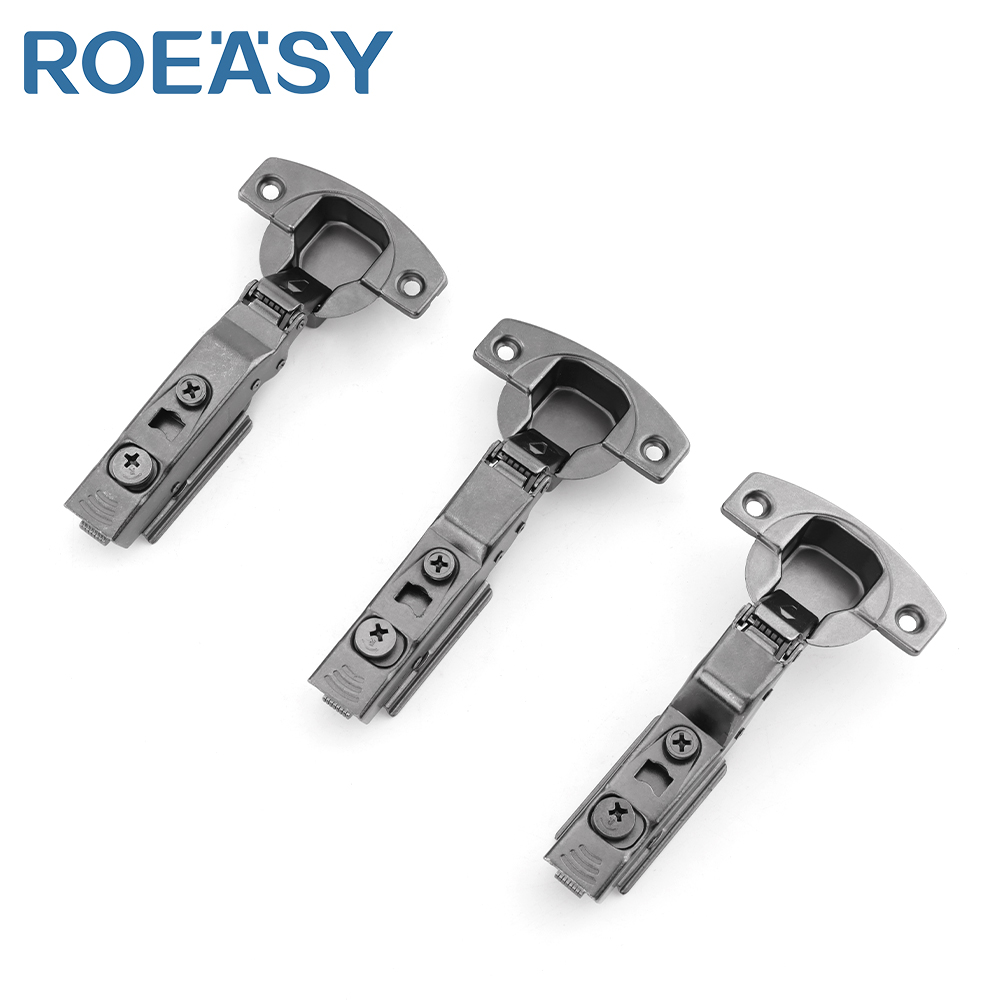

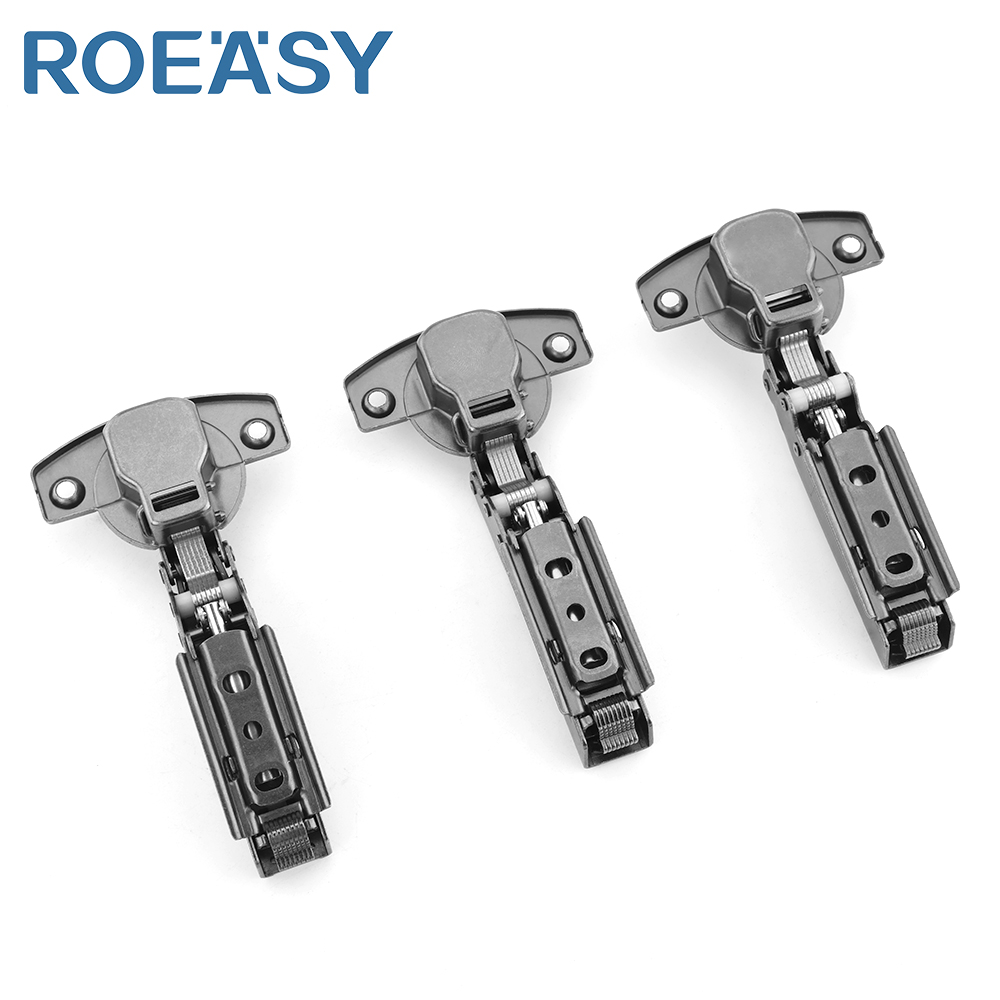

| Product Name: | ROEASY 35MM Cup Concealed Hydraulic Furniture Black Soft Close Wingless Hinges |

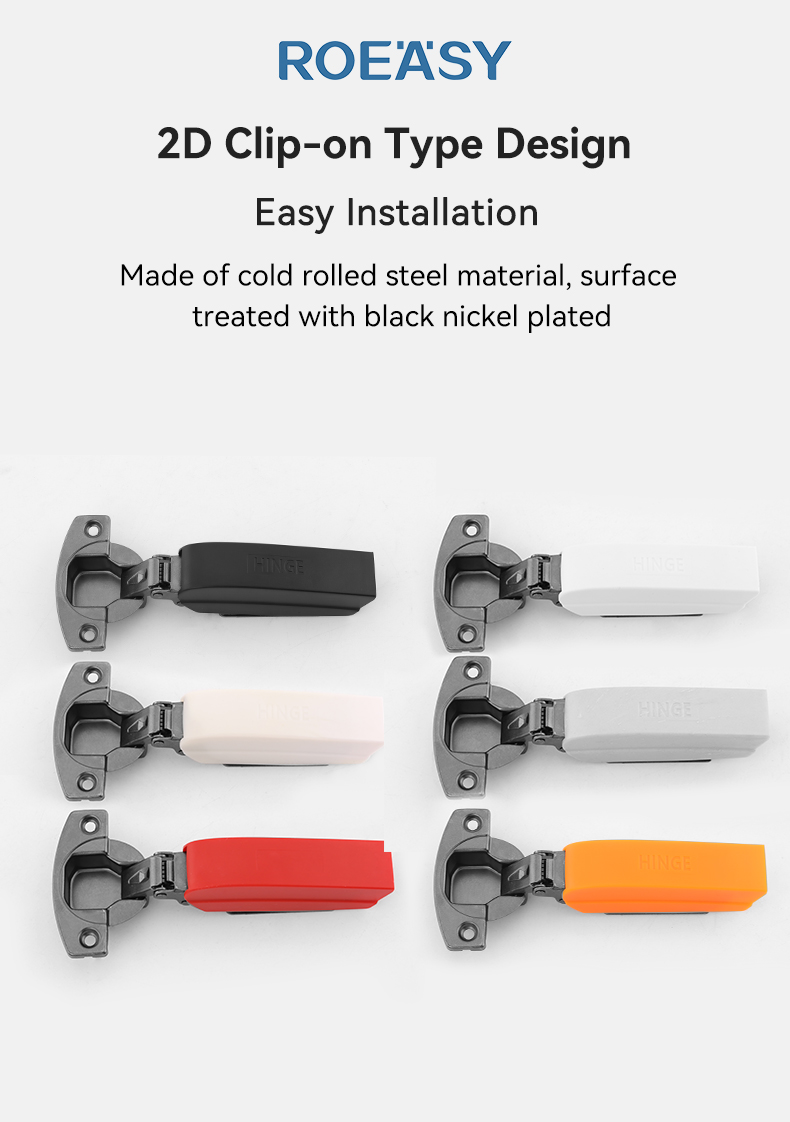

| Material: | Cold Rolled Steel+Plastic |

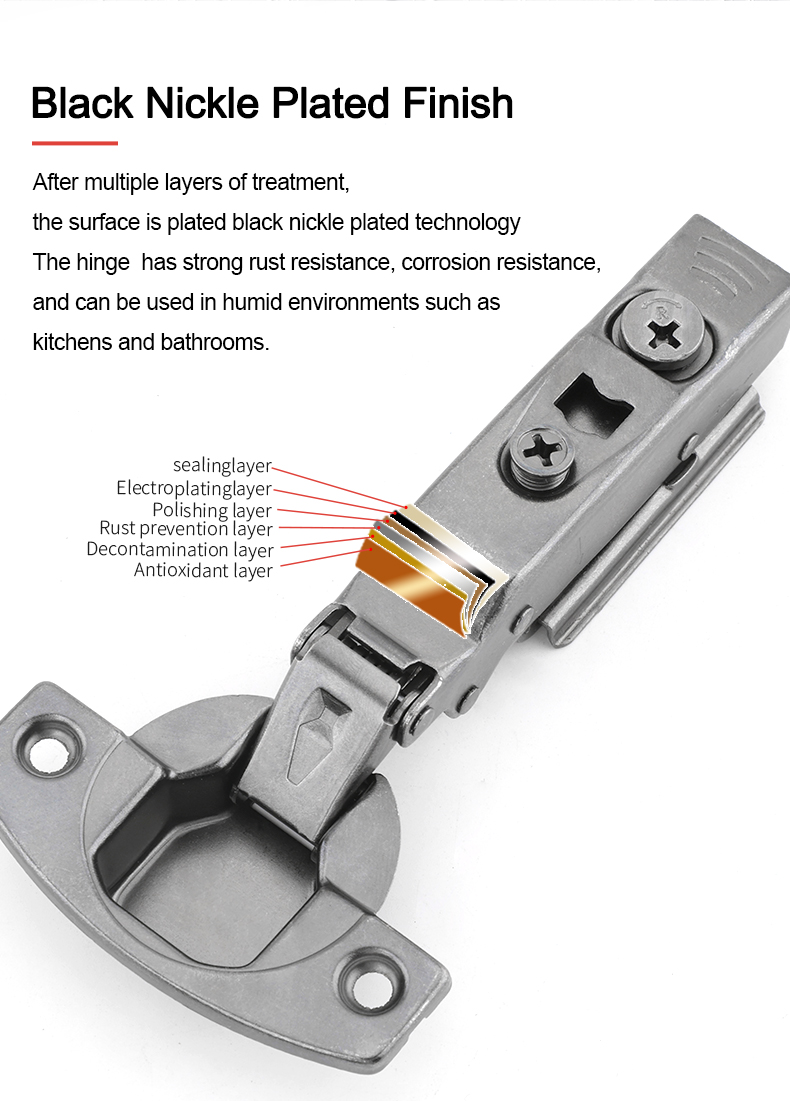

| Surface Treatment: | Black Nickel Plated |
| MOQ: | 1000 pcs |
| Packing: | 2 pcs/bag, 5 bags/box, 100pcs/carton |
| Certification: | SGS, ISO 9001:2015 |
|
Model Number: |
CH-273A-2D-1T-BN |
| Size: |

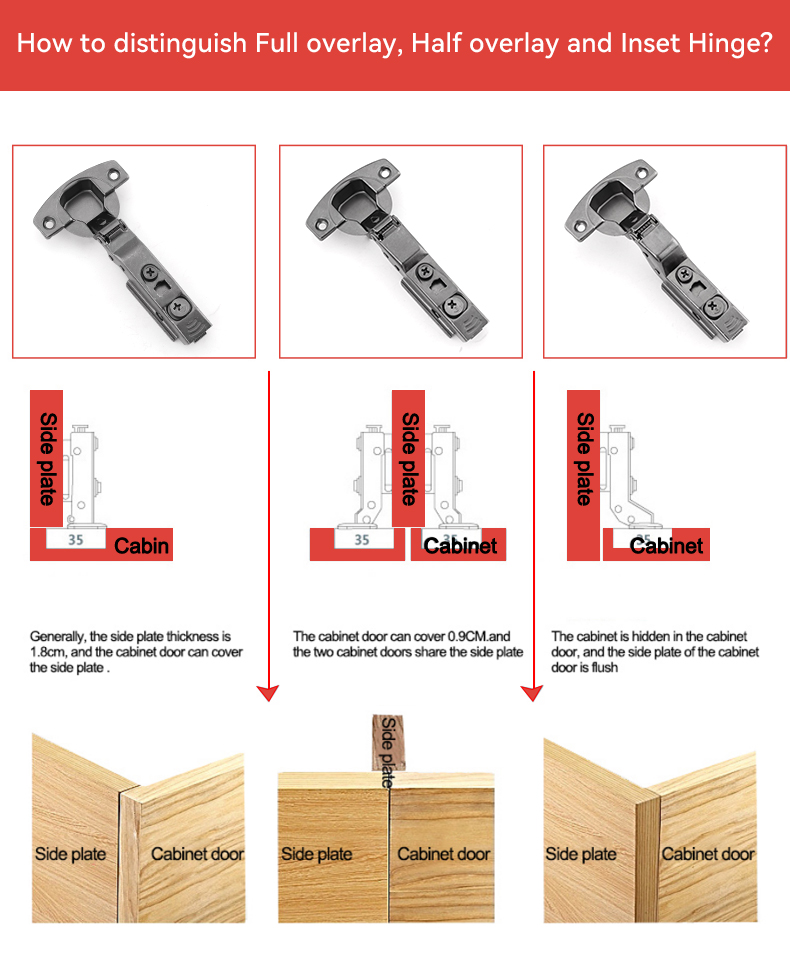

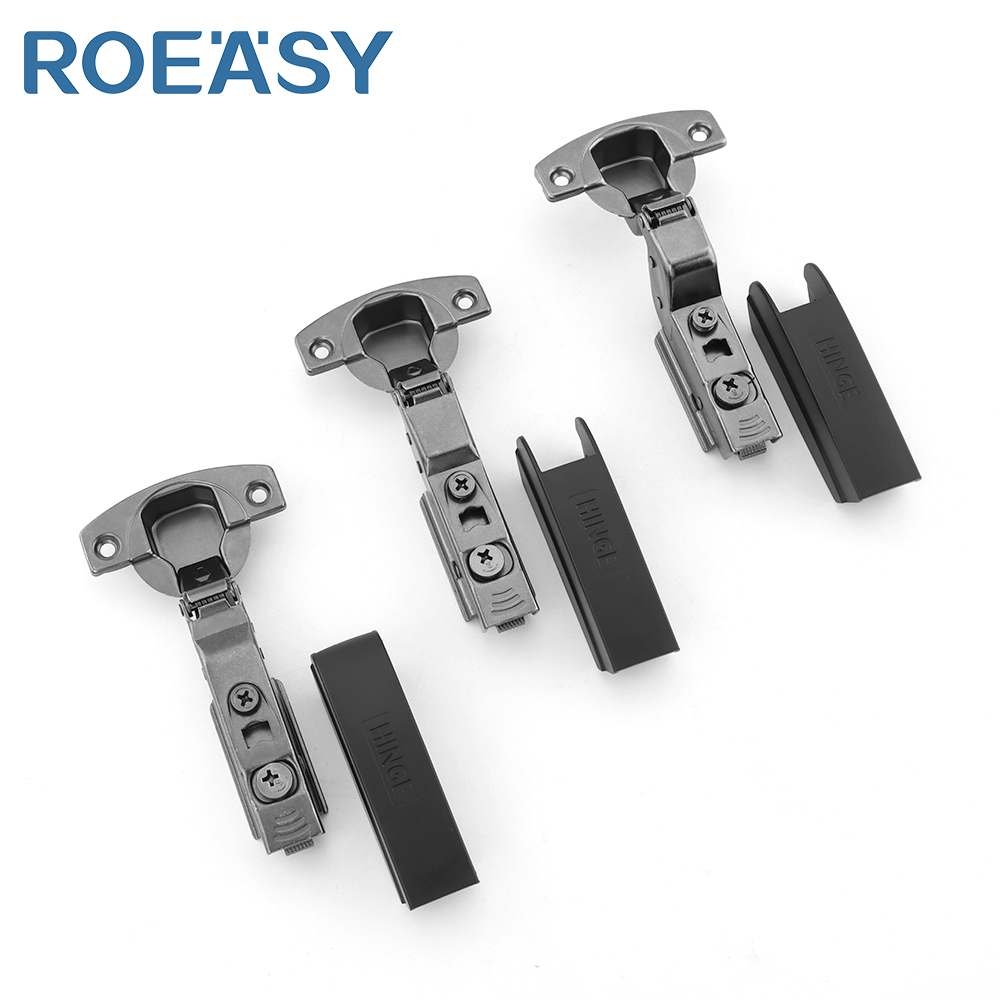

Full-overlay (0 crank), Half-overlay (8 crank), Inset (15 crank) |
|

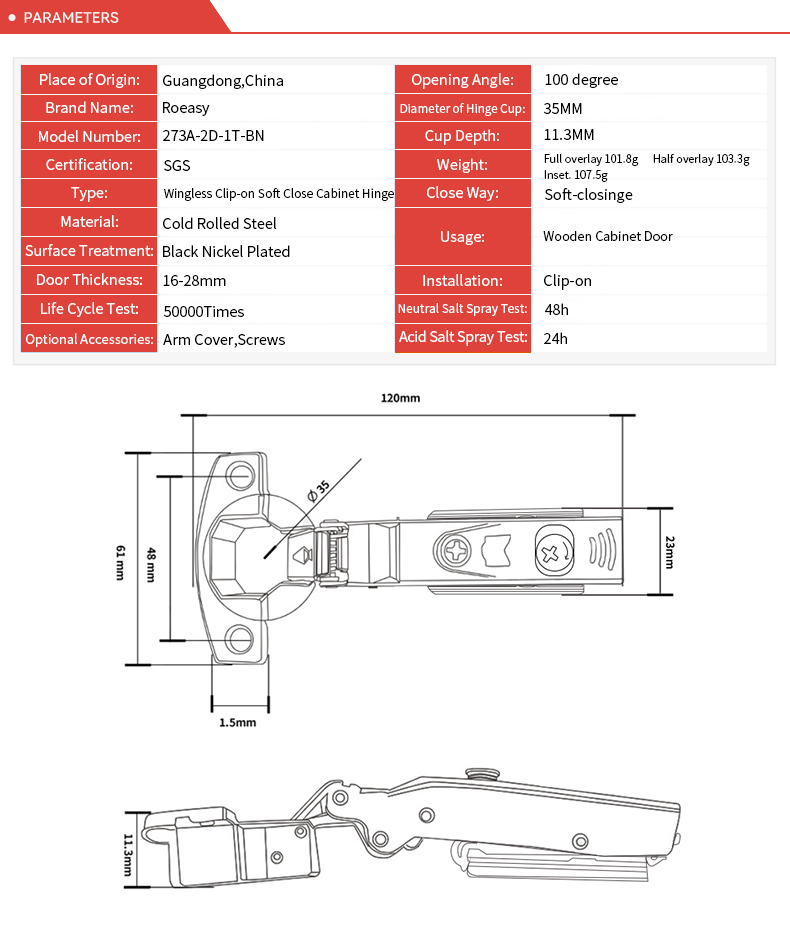

Cup Head Hole Distance: |
48mm |
|
Door Thickness: |
16-28mm |
|

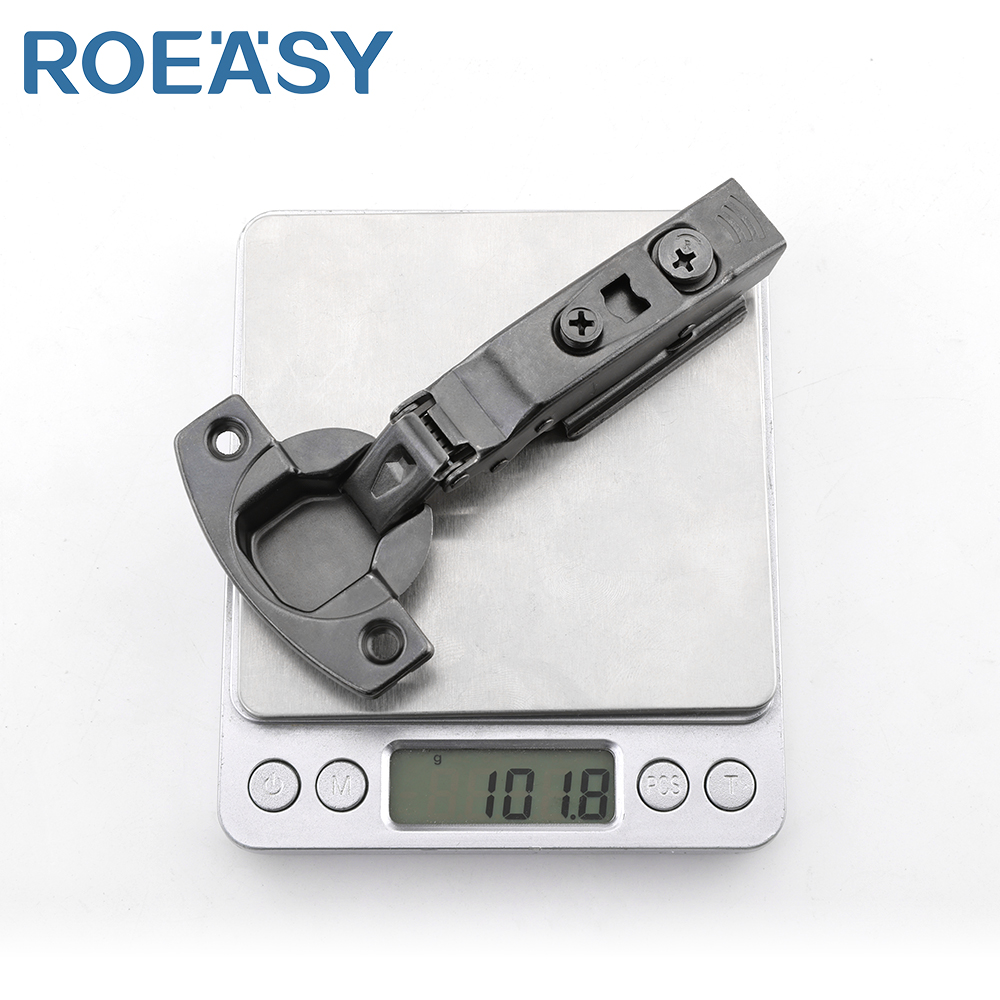

Weight: |
full-overlay: 101.8g/piece, half-overlay: 103.3g/gram, inset:107.5g/piece |
| Opening Angle | 100 degree |

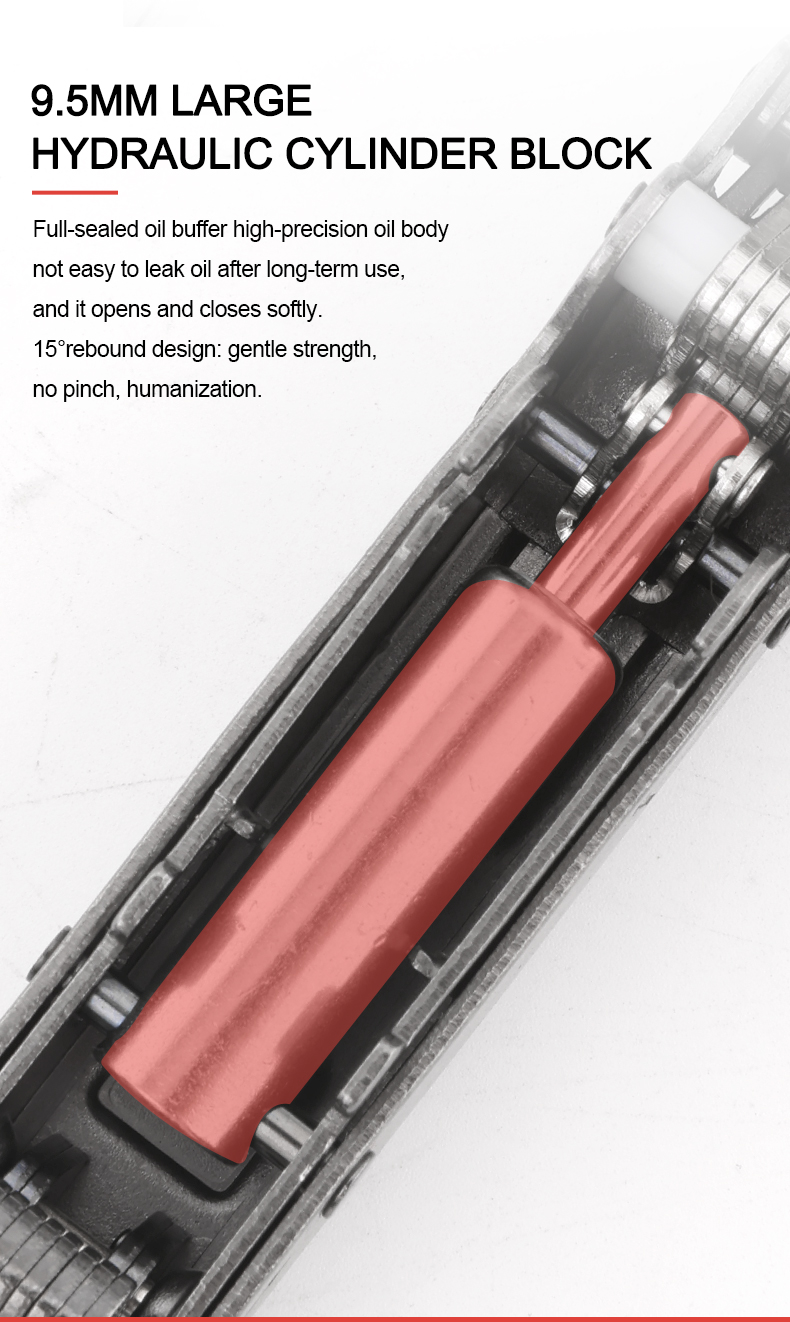

| Close Way | Soft-closing，Concealed Hydraulic |
| Feature | Three Way Closing (＞70 Degree Free Hover, ＜70 Degree Soft Closing, ＜10 Degree Small Angle Soft Closing) |
| Function | 2D Adjustable |

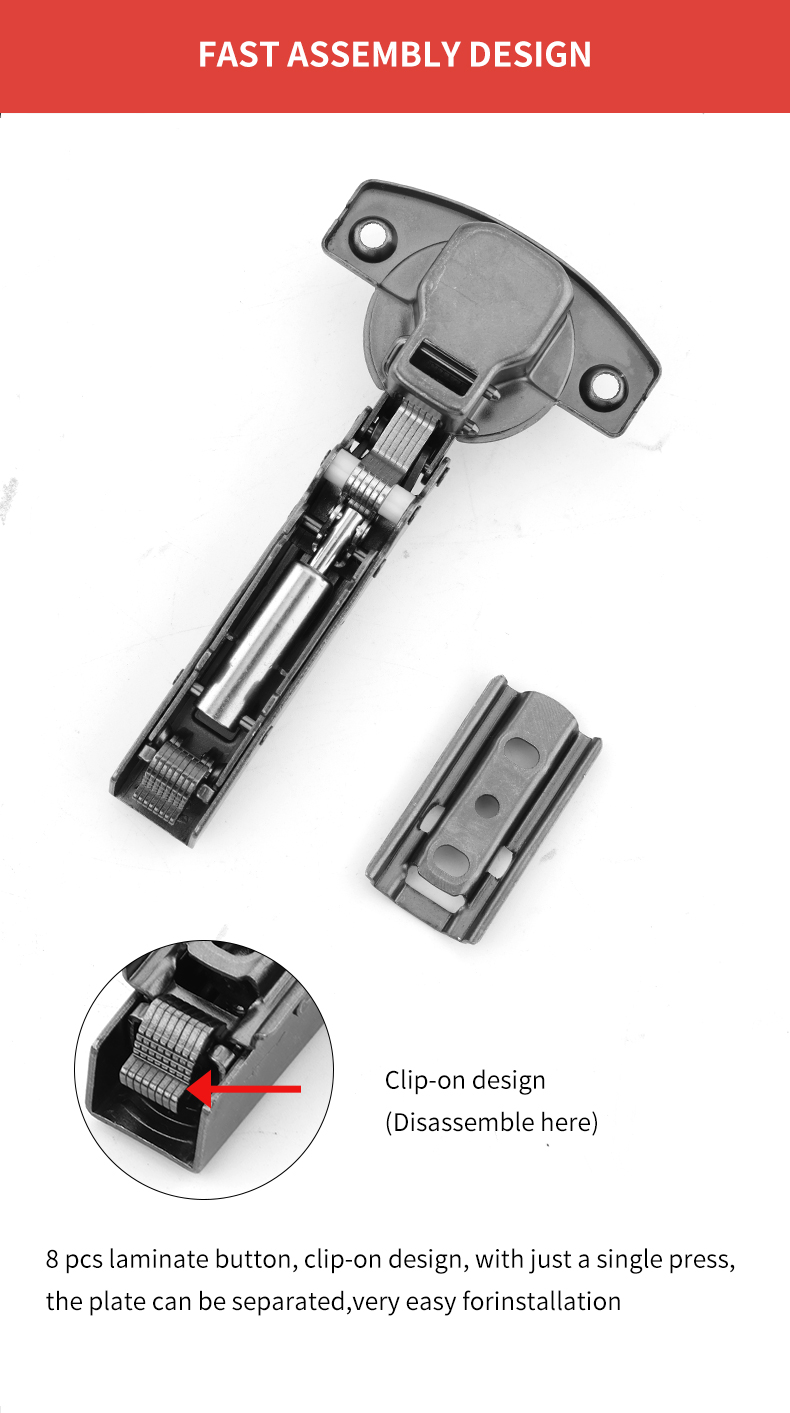

| Installation | Clip-on |

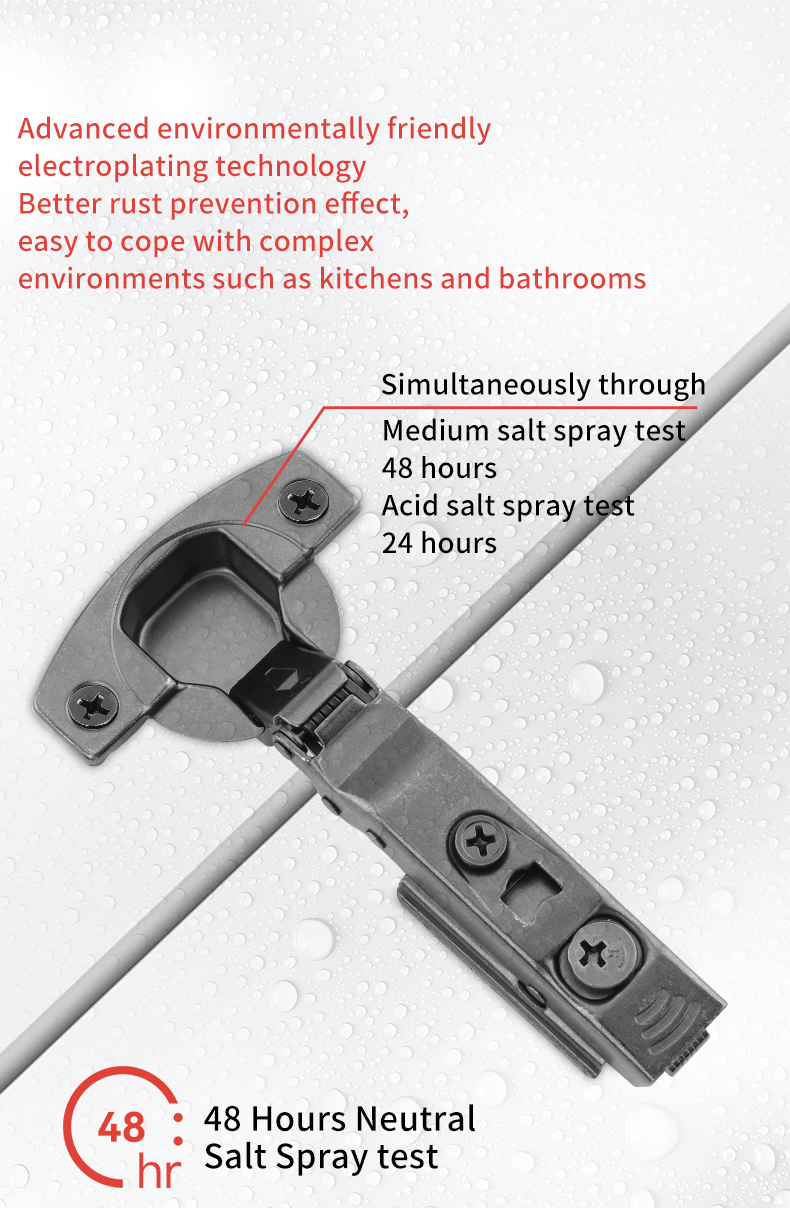

| Acid Salt Spray Test | 48h |

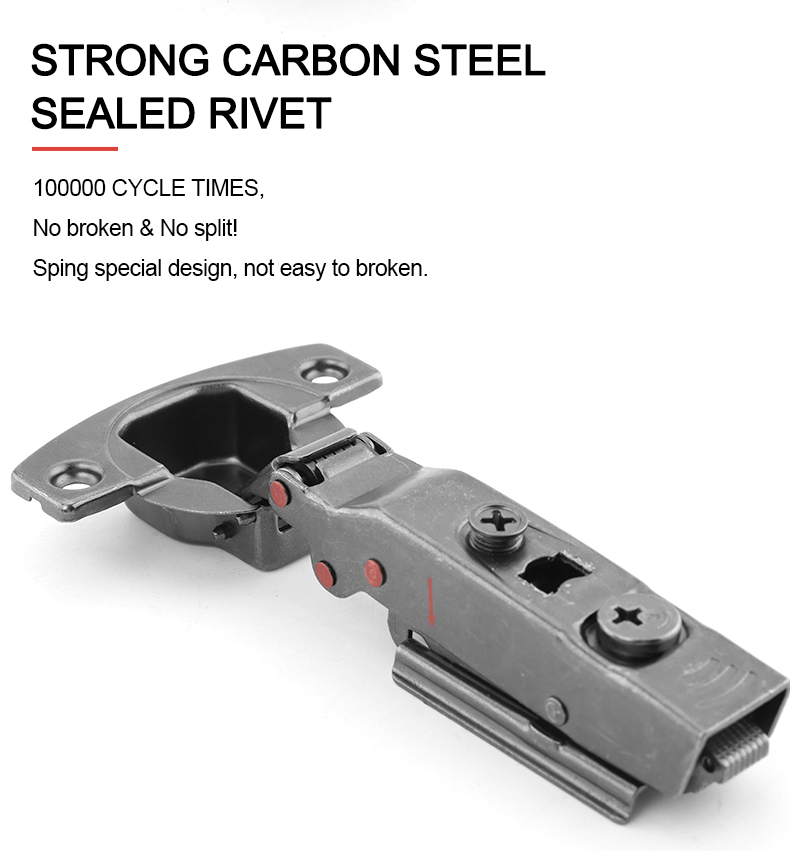

| Life Cycle Test | 50000 Times |

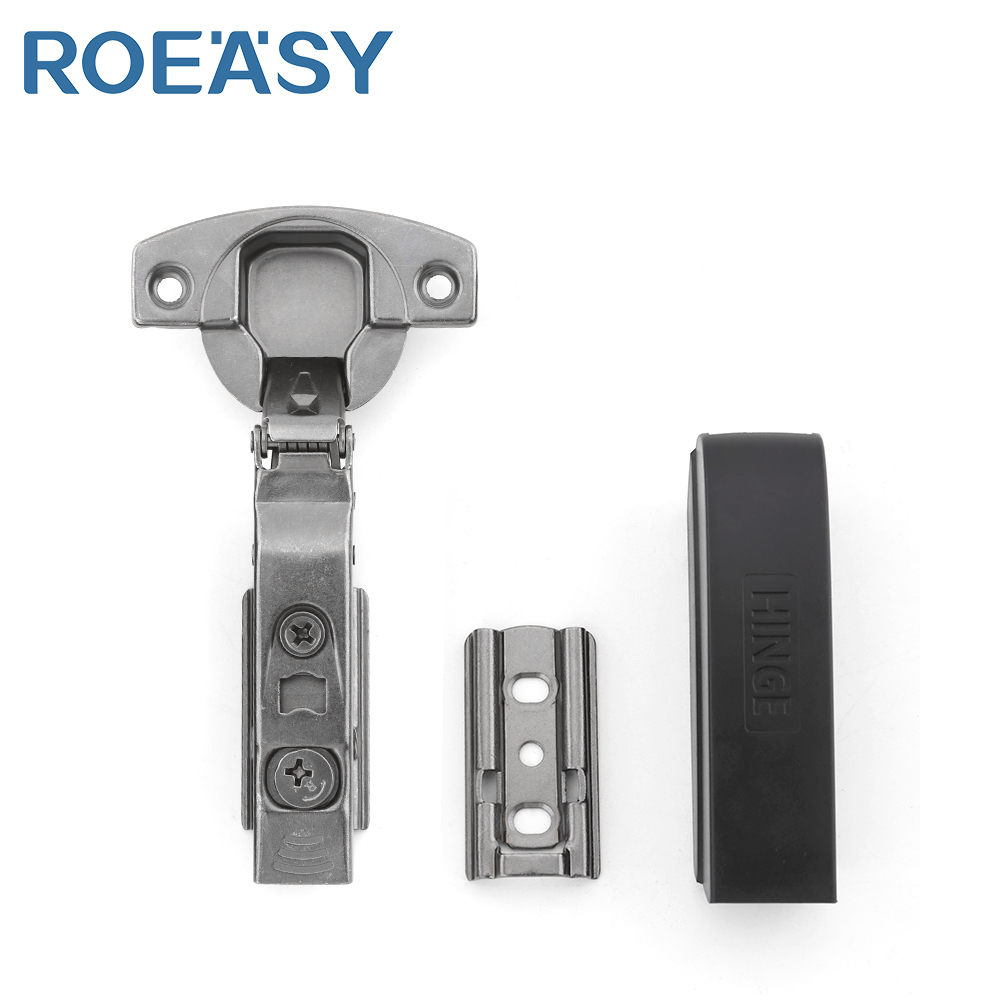

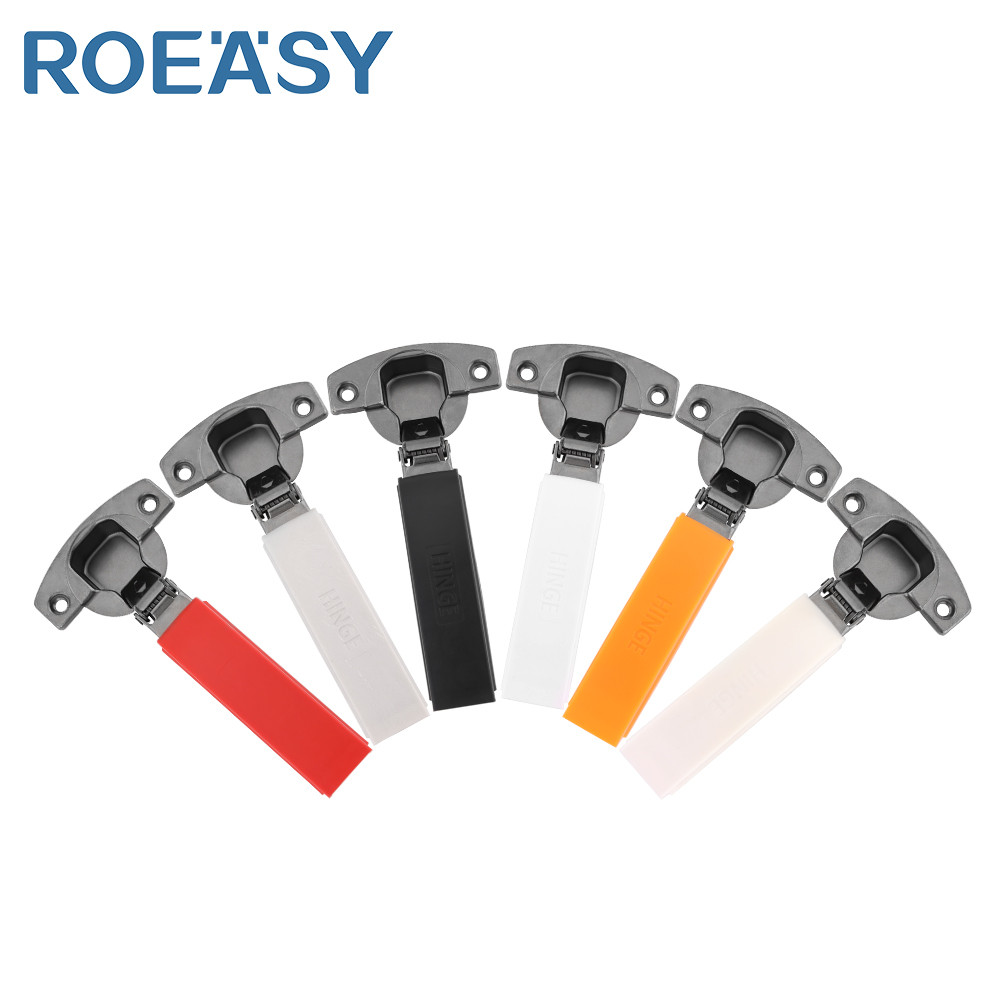

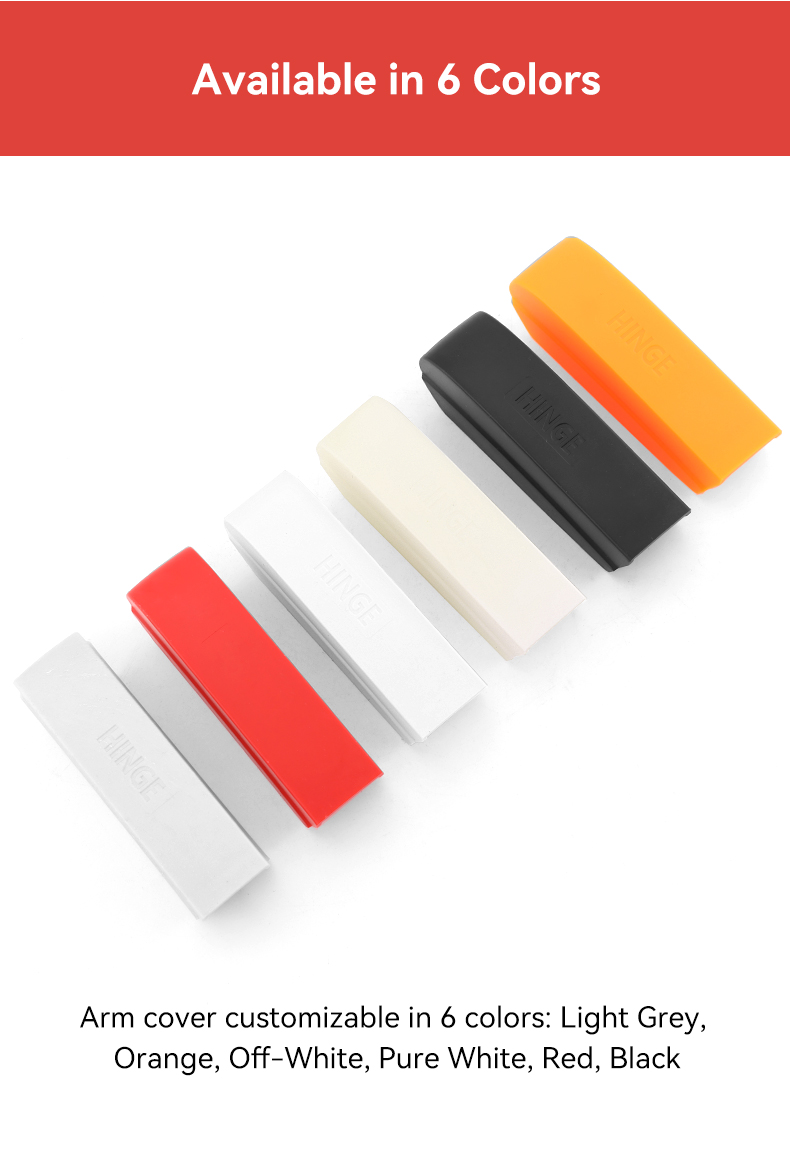

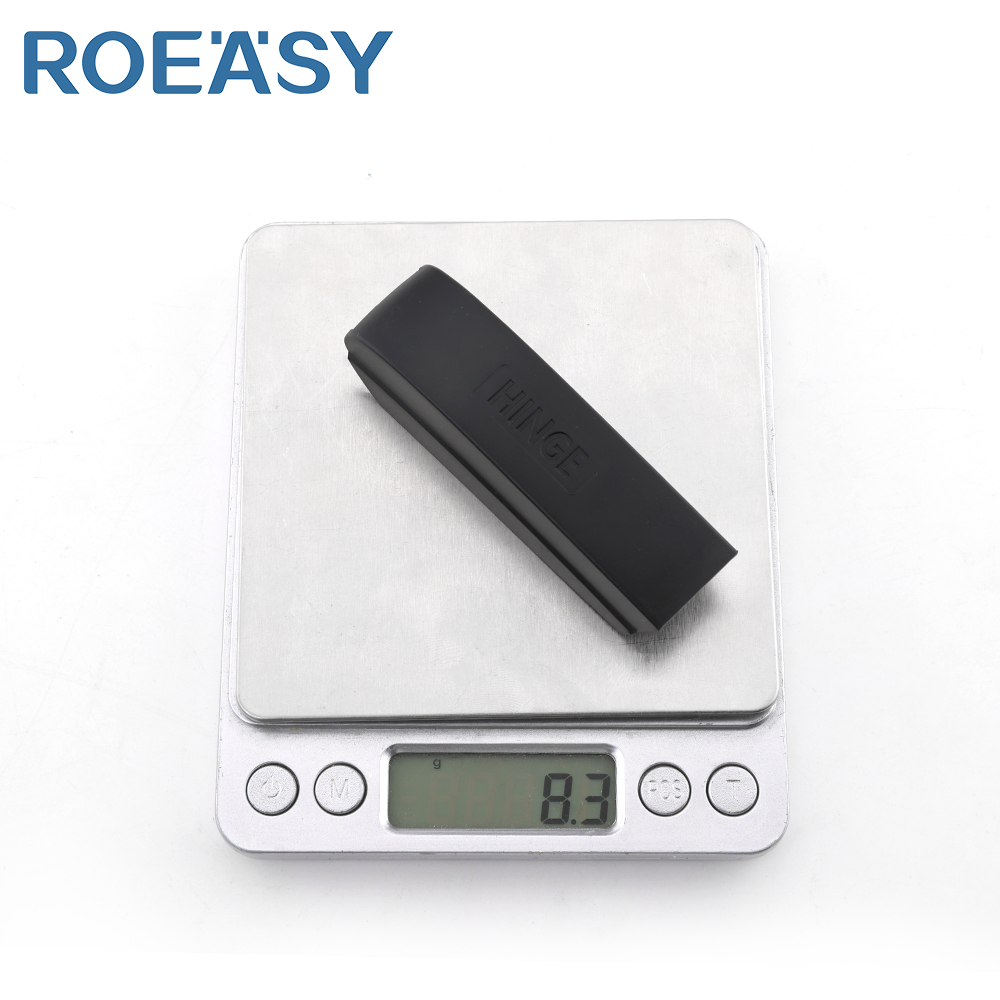

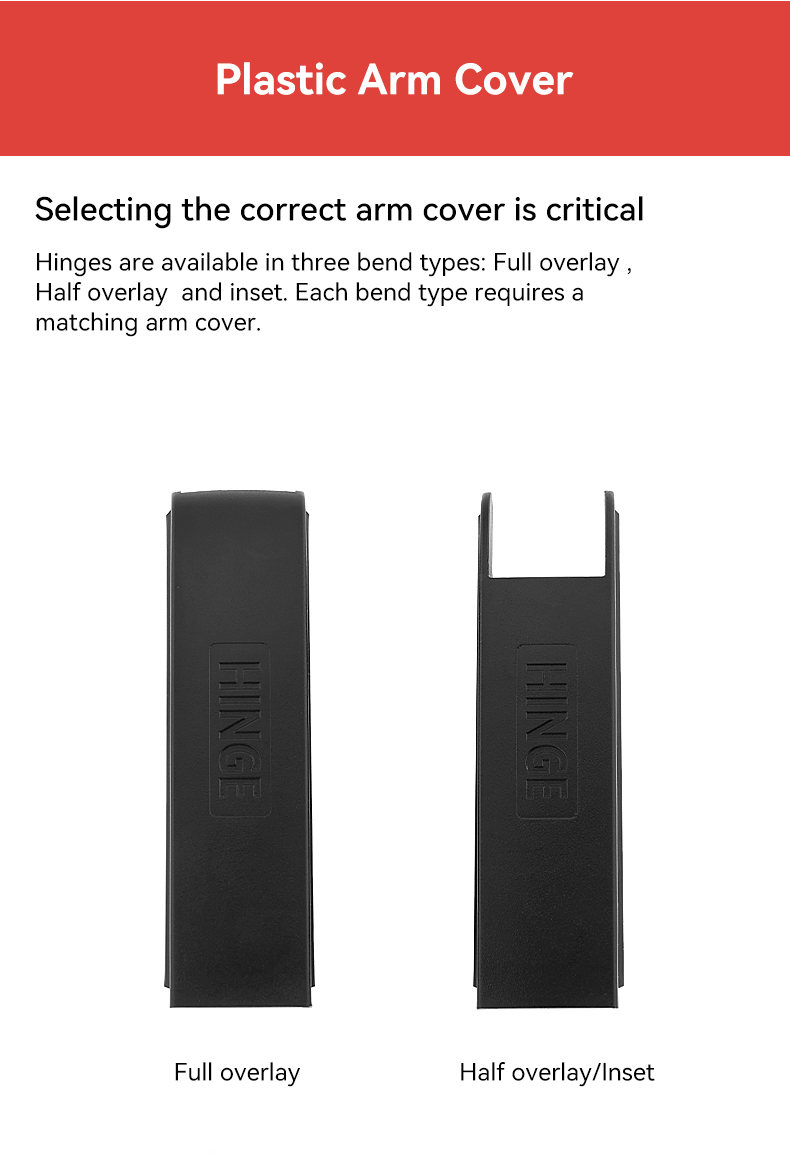

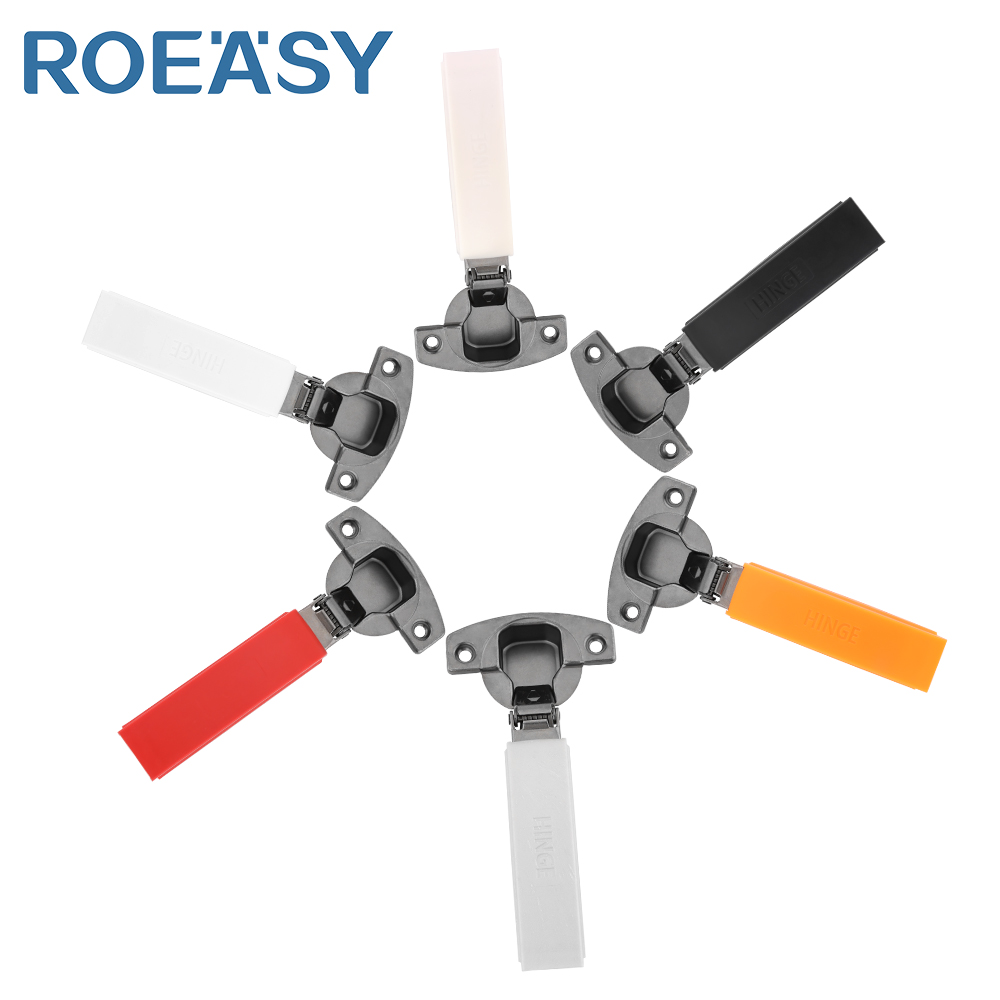

| Optional Accessories | Arm Cover,Screws |
Fast delivery：3-7 days sample shipping, 25-35days production.
Self-own factory: Over 31 years manufacturer experience in furniture hardware
One-stop solution service of furniture hardware,support OEM/ODM Design.
Project Solution Capability:
Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.
More than 30 Years of experience in furniture hardware, with 15,000㎡ factory and 10,750㎡Total floorspace
Supplier for Fortune 500 companies,OEM for well-known brands,
Design-based customization
Competitive OEM factory, ODM services available
10 Patents awarded and 3 Registered trademarks
Supplier assessment procedures
Global export expertise
Finished product inspection
International warehouse
International services center
Sample-based customization
Design-based customization
Minor customization
Full customization
On-site material inspection
R&D capabilites
