ROEASY (30°/ 45°) Positive Angle Hinge for Obtuse Angle Cabinets (-30°/-45°)Negative Angle Hinge for Acute Angle Cabinets

Special angle soft close hinge, angled concealed cabinet hinge for irregular cabinet

Inquiry now

Information

Product Name:	Special angle soft close hinge, angled concealed cabinet hinge for irregular cabinet
Brand Name:	ROEASY
Material:	Cold Rolled Steel
Surface Treatment:	Nickel Plated
Model Number:	KH11/KH12/KH13/KH14
Size:	Full-overlay (0 crank), Half-overlay(8 crank), Inset(15 crank)
Cup Head Hole Distance:	48mm
Door Thickness:	15-26mm
Cup Height:	12mm
MOQ:	1000 pcs
Packing:	1 pc/bag, 50 pcs/ctn (with screws)
Certification:	SGS, ISO 9001:2015

Description

Positive angle hinges (+30° / +45°)

When the cabinet door is closed, the door tilts outward; the included angle between cabinet side panel and door panel is greater than 90° (120° / 135°).

Negative angle hinges (-30° / -45°)

When the cabinet door is closed, the door tilts inward; the included angle between cabinet side panel and door panel is less than 90° (60°~80° / 45°~60°).

Specifications

Hinge Type	Door-to-Panel Closing Angle	Core Applicable Cabinets	Common Home Scenarios

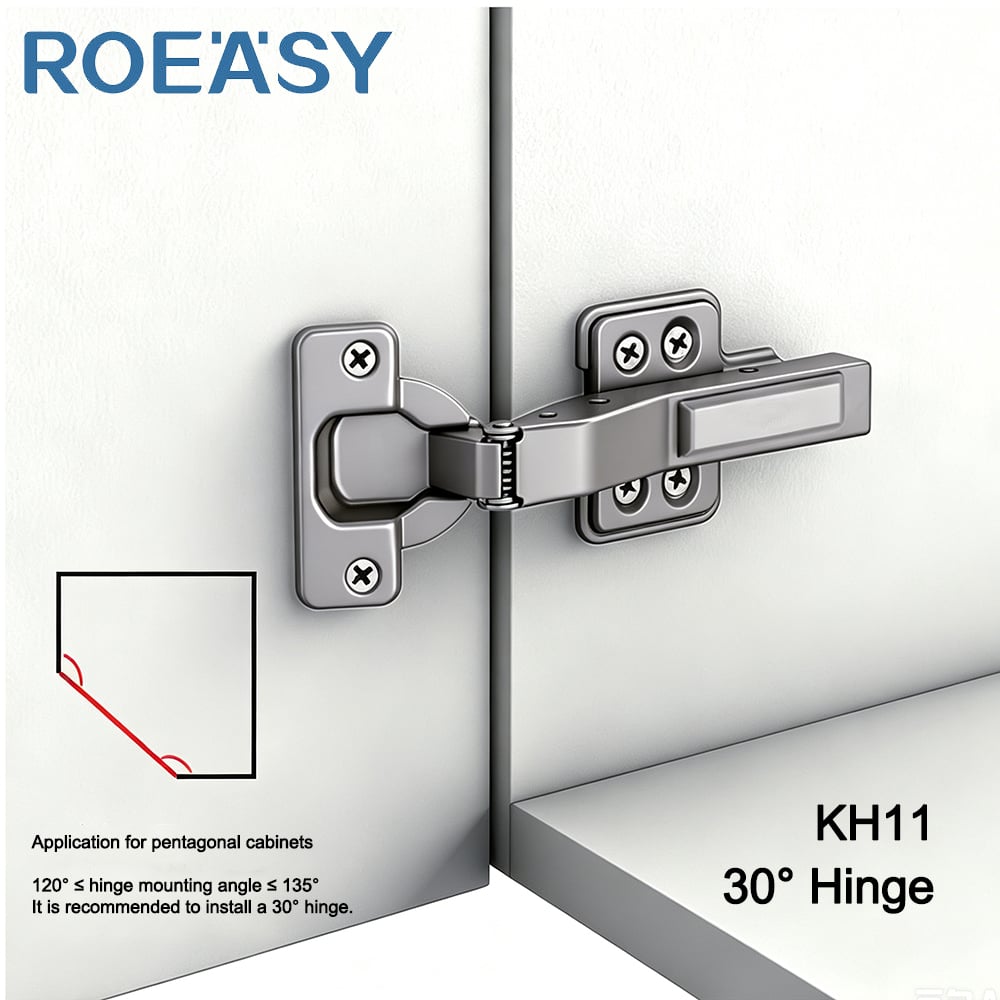

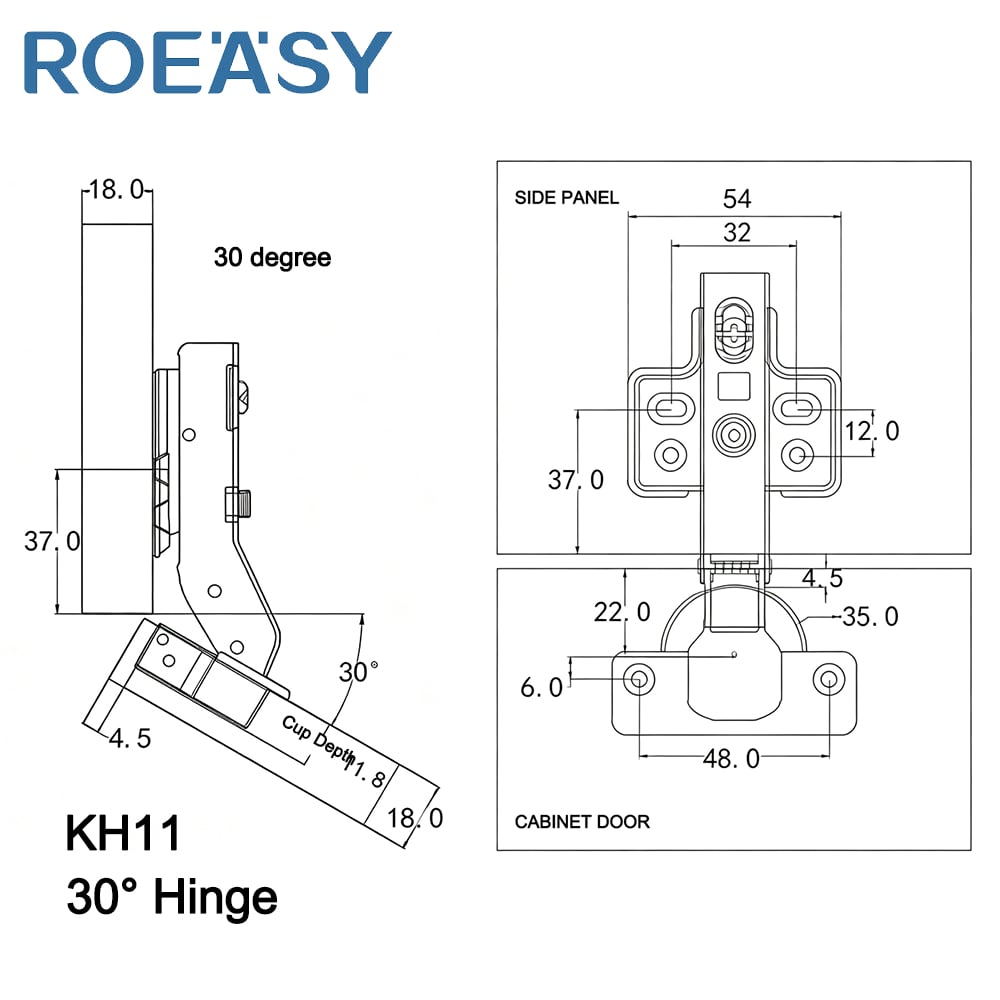

+30° Positive Angle	120°–130° (outward bevel)	Outward triangular corner cabinet, island side bevel cabinet	Entryway triangular wine cabinet, bay window outward bevel cabinet

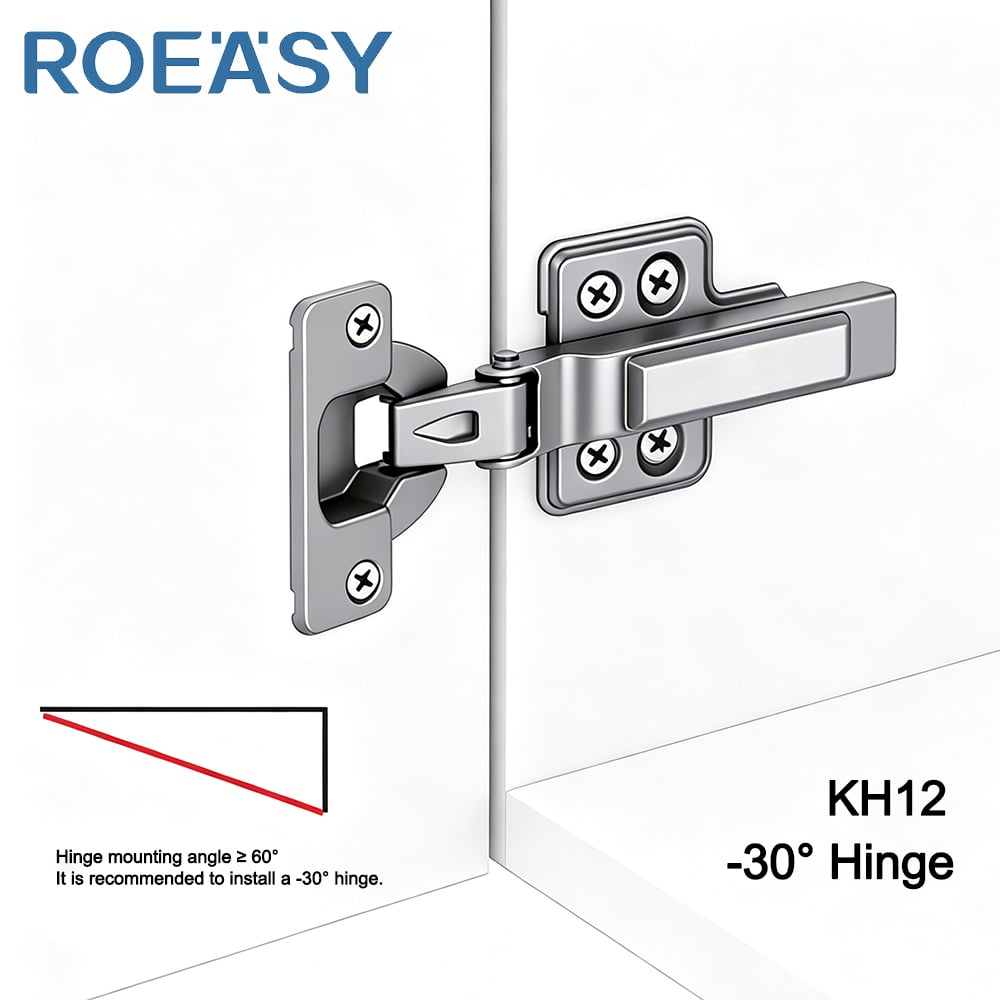

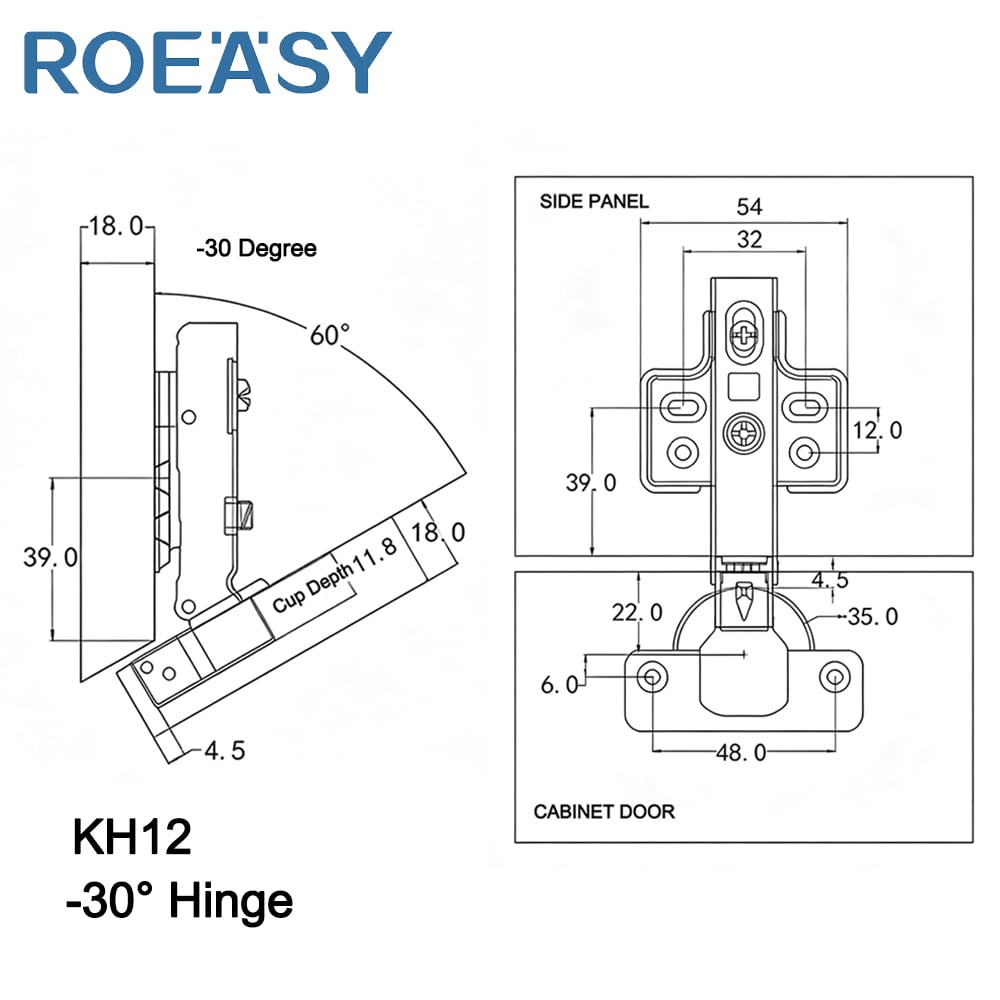

-30° Negative Angle	60°–80° (inward bevel)	Inward triangular corner cabinet, gap-fill bevel cabinet	Kitchen L-shaped inner corner cabinet, narrow cabinet beside refrigerator

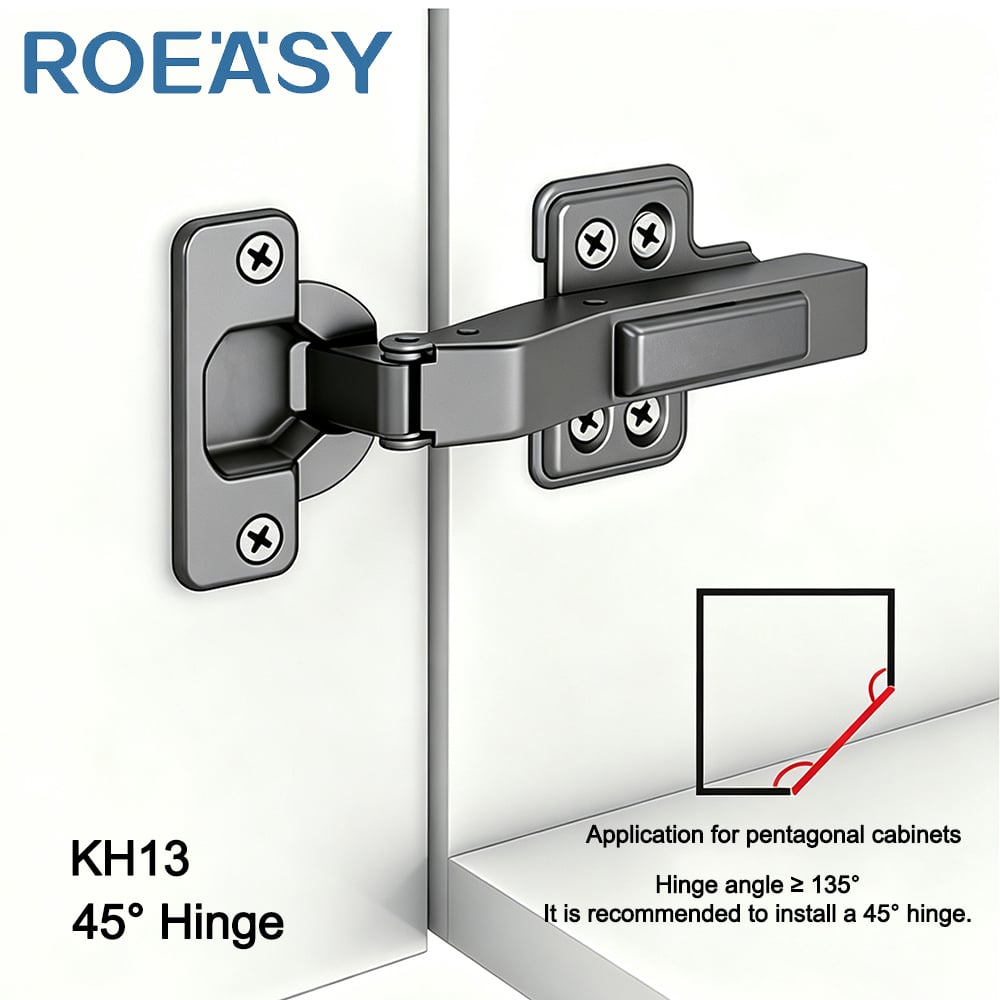

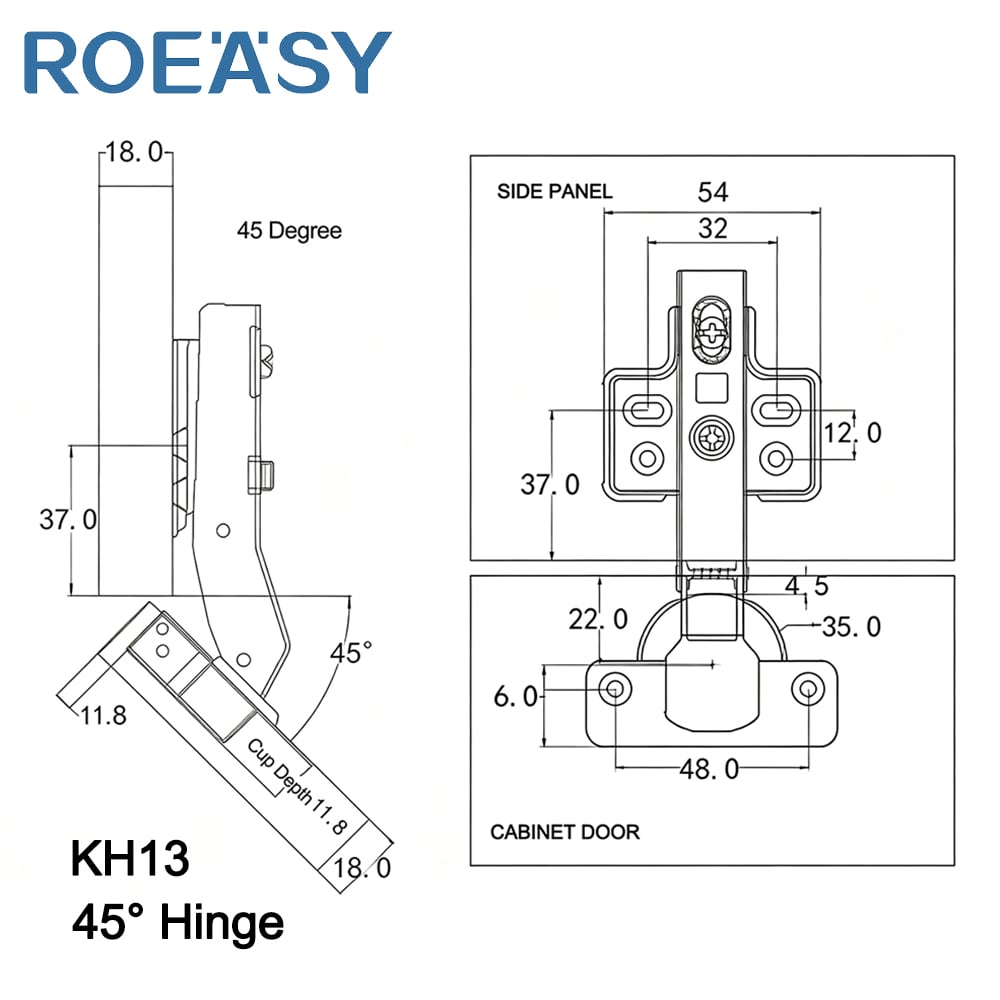

+45° Positive Angle	135°–145° (outward bevel)	Diamond pentagon cabinet, large bevel display cabinet	Kitchen corner diamond cabinet, sideboard bevel cabinet

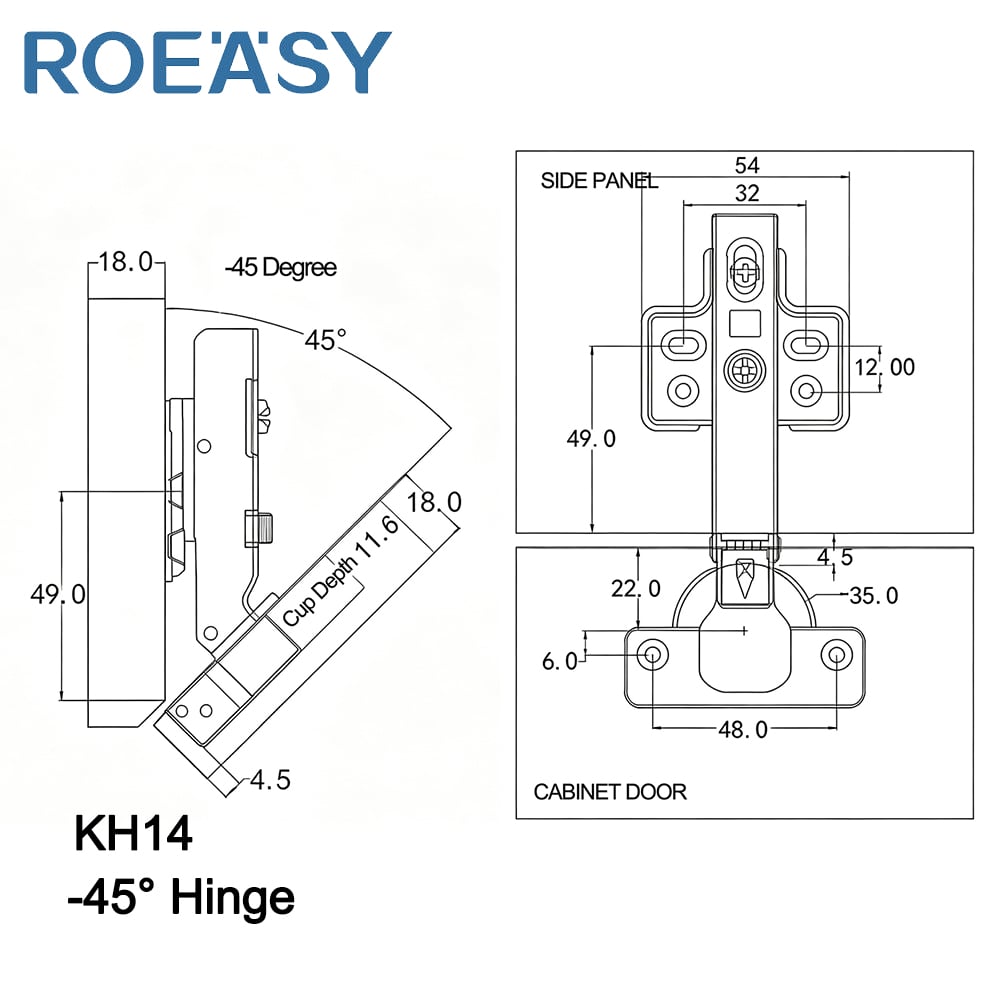

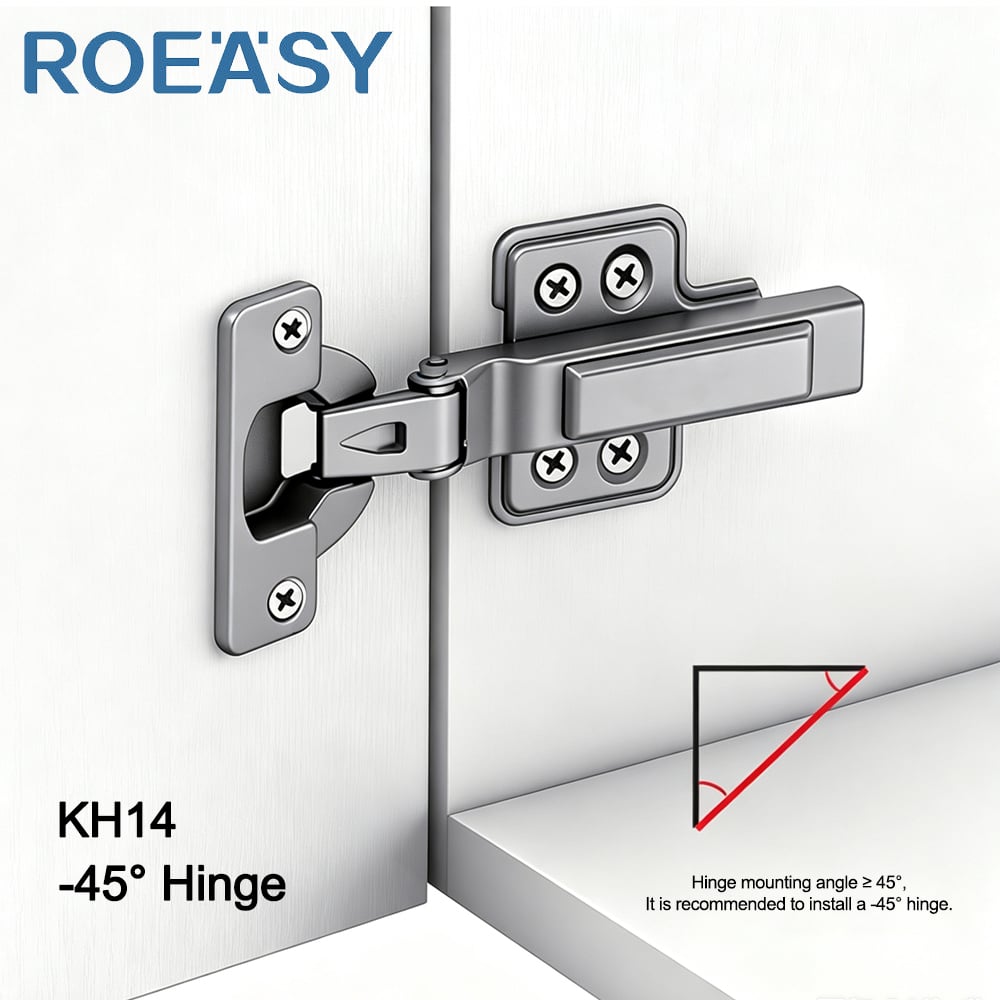

-45° Negative Angle	45°–60° (inward bevel)	Extra-small inner corner triangular cabinet, deep recessed gap cabinet	Bathroom mini bevel wall cabinet, deep corner storage cabinet
