ROEASY FD-B04 Cabinet Door Support Lid Stay Hinge Furniture Doors Flap Stay Mechanism for Kitchen Cupboard & Dining Lift System

Positionable Hydraulic Stay: Flat-Mounted Telescopic Support for Kitchen Cabinet Lift-up Doors

Inquiry now

Information

Place of Origin:	Guangdong,China
Brand Name:	ROEASY
Product Name:	Cabinet Door Support Lid Adjustable Zinc Alloy Stay Lift System

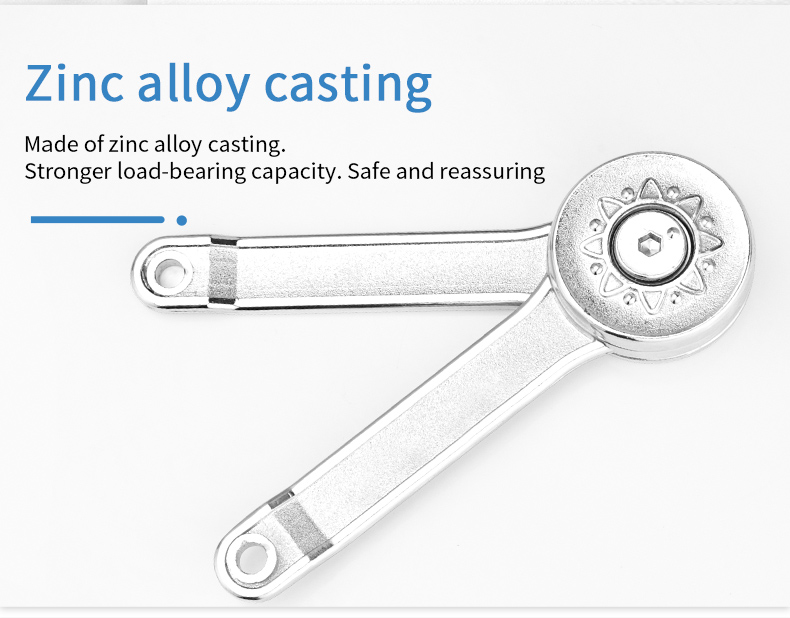

Material:	Zinc Slloy
Surface Treatment:	Nickel Plated / Chrome Plated
MOQ:	1000 pcs
Suitable for	Flip Up & Flip Down Wood Door and Aluminnum Frame
Certification:	SGS, ISO 9001:2015

Description

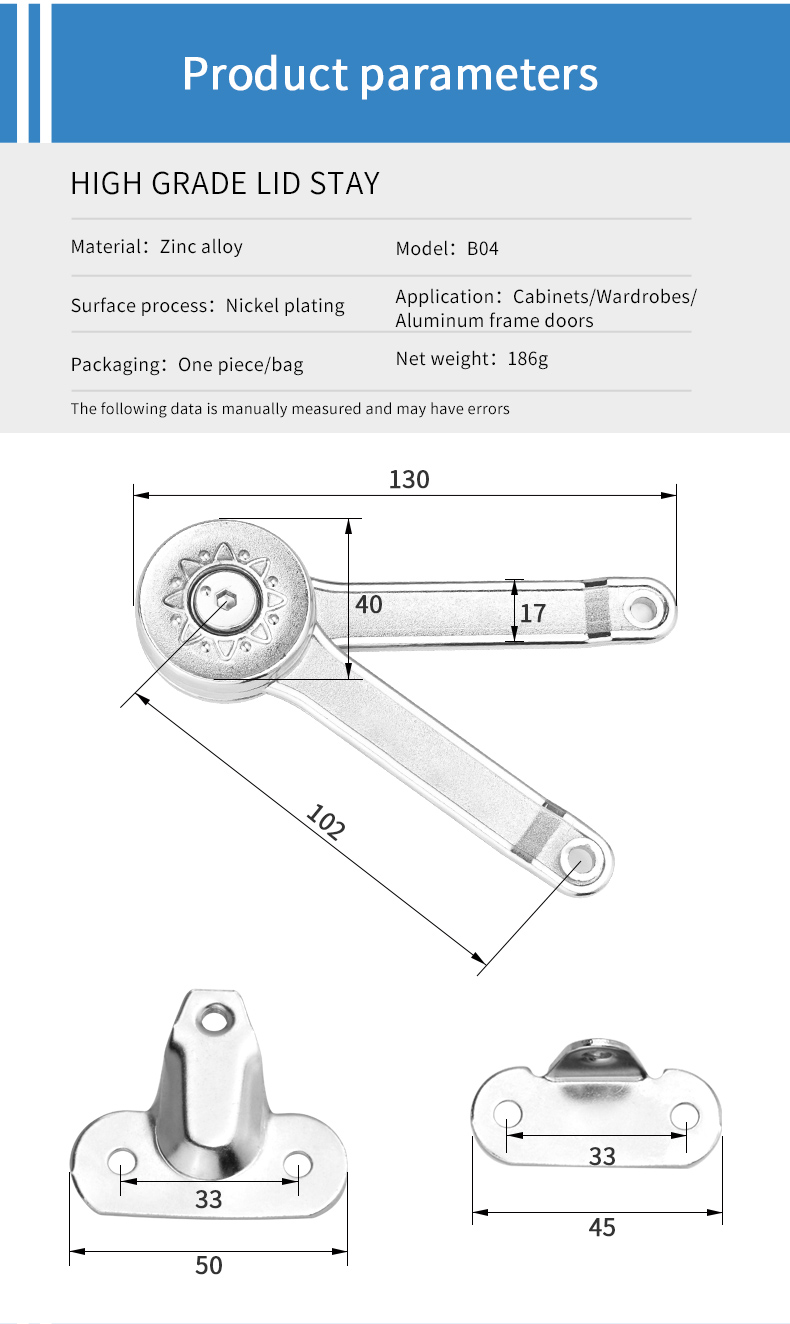

Model Number	FD-B04
Full Legnth	21.3cm
Hole Distance(Side Panel)	30mm
Hole Distance(Cabinet Door)	31mm
Weight	196 gram/piece

Specifications

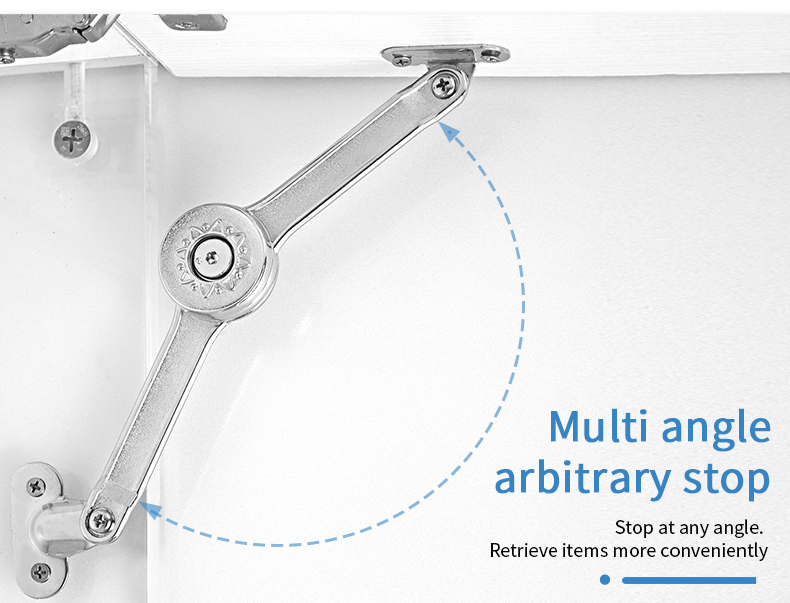

Opening Angle	75 / 90 / 105 degree
Load Capacity	2-8.9kg
Rod Thickness	4mm
Function	Support Door

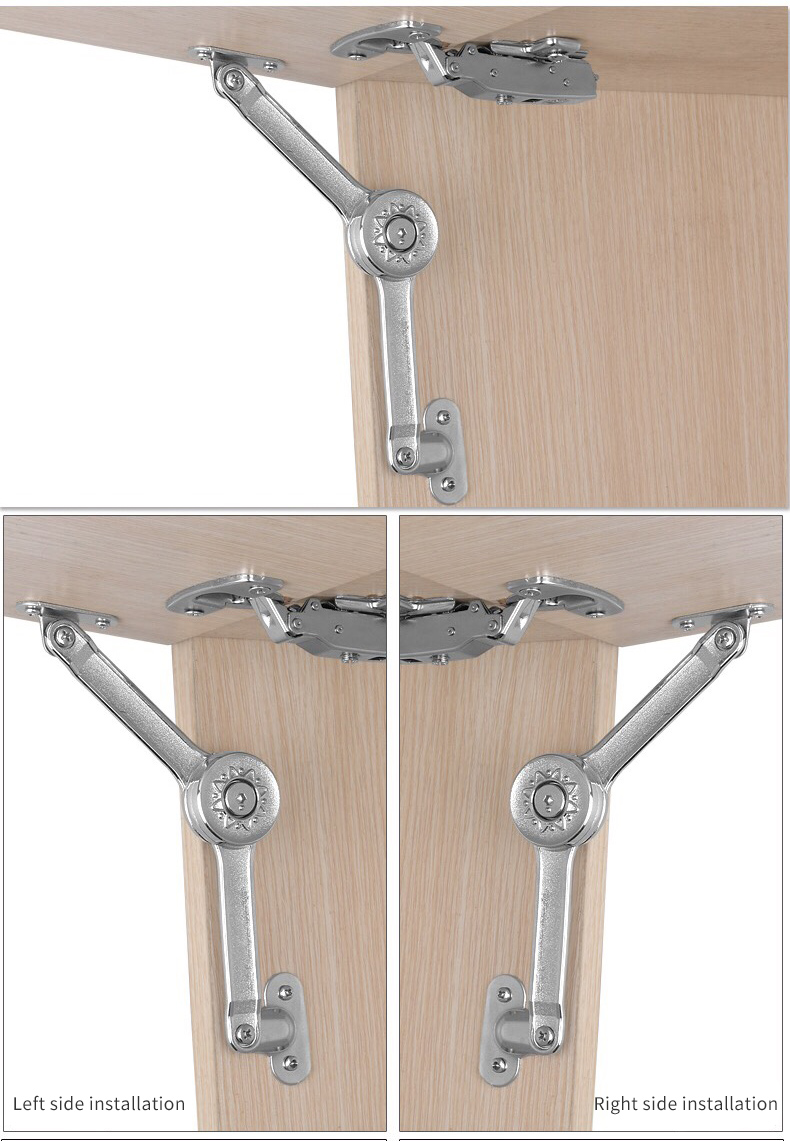

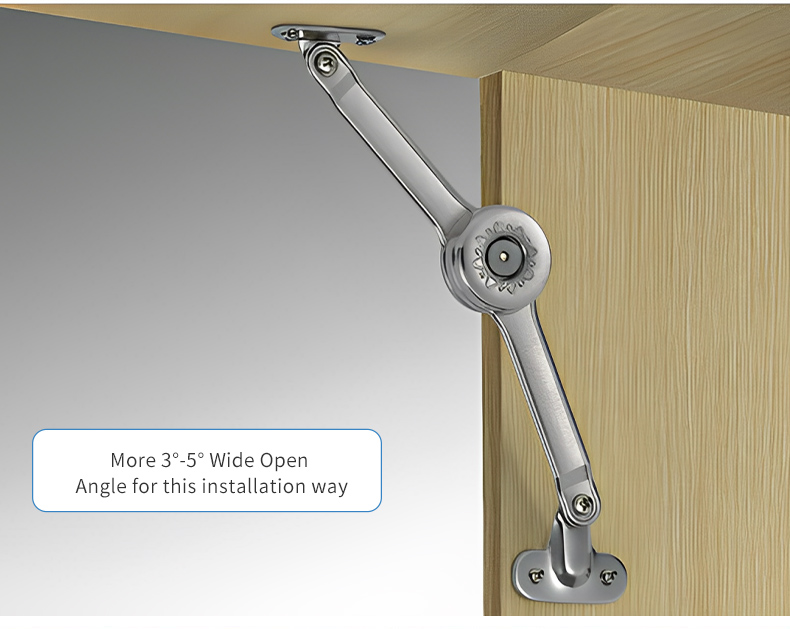

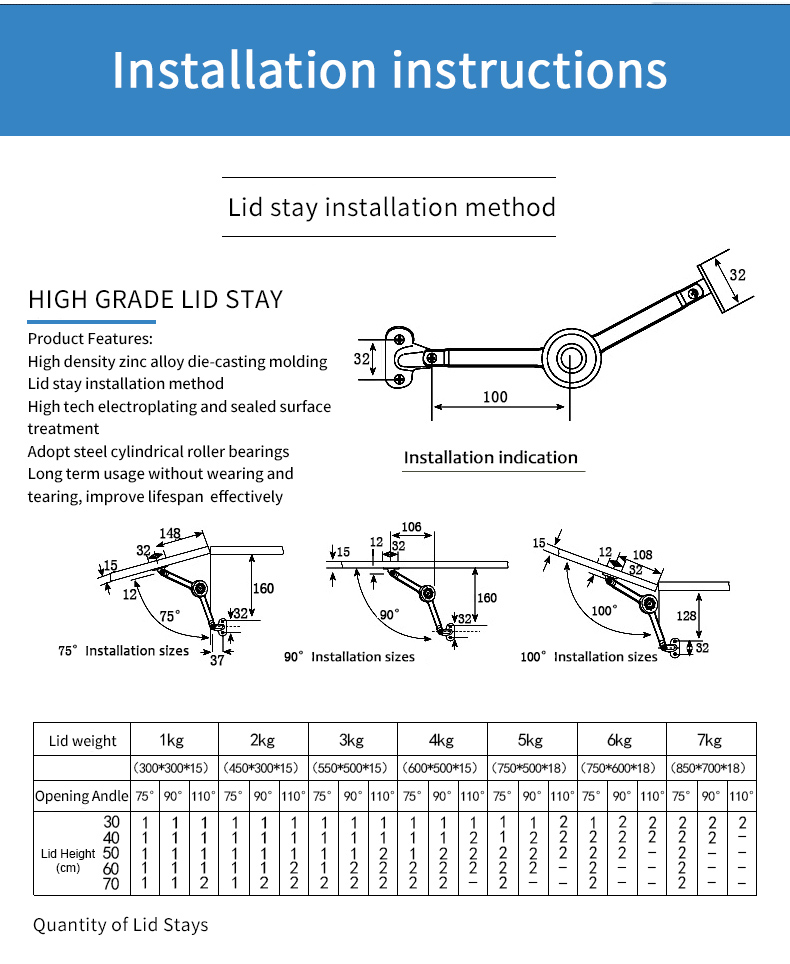

Installation	At the Top / Bottm of the Cabinet Inside
Acid Salt Spray Test	48h
Life Cycle Test	50000 Times
Packing	Poly Bag & Box Packing

Competitive Advantage

Fast delivery：3-7 days sample shipping, 25-35days production.

Self-own factory: Over 31 years manufacturer experience in furniture hardware

One-stop solution service of furniture hardware,support OEM/ODM Design.

Project Solution Capability:

Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.

More than 30 Years of experience in furniture hardware, with 15,000㎡ factory and 10,750㎡Total floorspace

Supplier for Fortune 500 companies,OEM for well-known brands,

Design-based customization

Competitive OEM factory, ODM services available

10 Patents awarded and 3 Registered trademarks

Supplier assessment procedures / R&D capabilites

Global export expertise / Finished product inspection /On-site material inspection

International warehouse / International services center

Sample-based customization / Design-based customization

Minor customization / Full customization
