ROEASY FD-B08 Lid Stay for Aluminum Frame & Wood Door Cabinet Flap Stay Cabinet Lift Flip Up and Flip Down Type

Free-stop Gas Spring Support Rod for Cabinet Lift-up Doors with Flat Mounting Hydraulic Telescopic Rod

Inquiry now

Information

Place of Origin:	Guangdong,China
Brand Name:	ROEASY
Product Name:	Cabient Support Lid Stay Hinge for Furniture Cabinets
Material:	Zinc Alloy
Surface Treatment:	Nickel Plated / Chrome Plated
MOQ:	1000 pcs
Suitable for	Flip Up & Flip Down Wood Door and Aluminnum Frame
Certification:	SGS, ISO 9001:2015

Description

Model Number:	FD-B08
Full Legnth	207mm
Hole Distance(Side Panel)	32mm
Hole Distance(Cabinet Door)	32mm
Weight:	183 gram/piece

Specifications

Opening Angle	75 / 90 / 110 degree

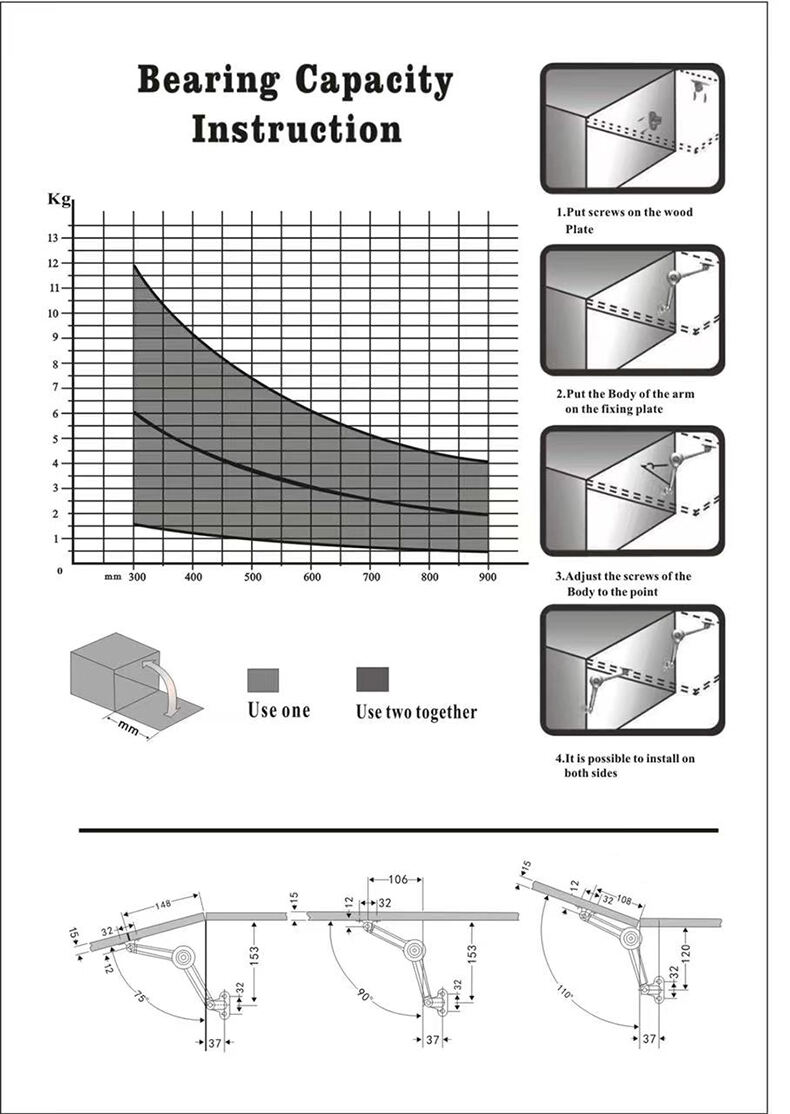

Load Capacity	2-8.9kg
Rod Thickness	4mm
Function	Support Cabinet / Cupboard Doors

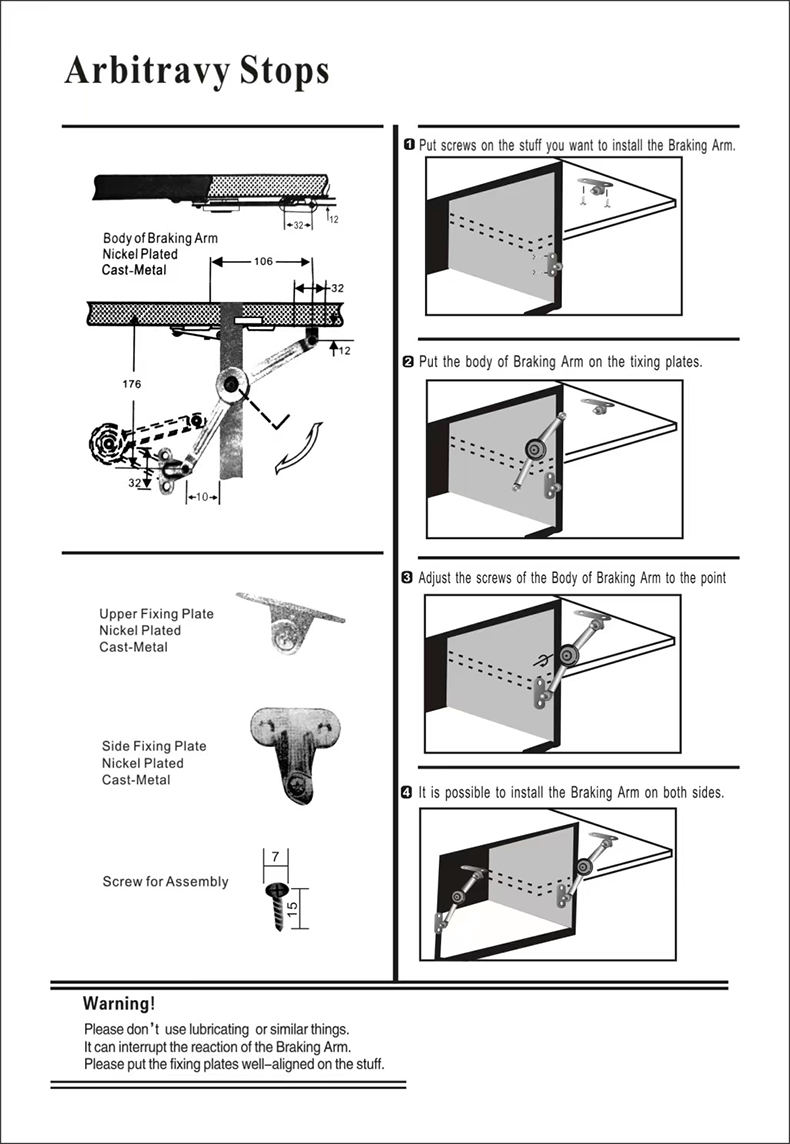

Installation	At the Top / Bottm of the Cabinet Inside
Acid Salt Spray Test	48h
Life Cycle Test	50000 Times
Packing	Poly Bag & Box Packing

Competitive Advantage

Fast delivery：3-7 days sample shipping, 25-35days production.

Self-own factory: Over 31 years manufacturer experience in furniture hardware

One-stop solution service of furniture hardware,support OEM/ODM Design.

Project Solution Capability:

Professional design team support total solution for projects: Free graphic design and Cross Categories Consolidation.

More than 30 Years of experience in furniture hardware, with 15,000㎡ factory and 10,750㎡Total floorspace

Supplier for Fortune 500 companies,OEM for well-known brands,

Design-based customization

Competitive OEM factory, ODM services available

10 Patents awarded and 3 Registered trademarks

Supplier assessment procedures / R&D capabilites

Global export expertise / Finished product inspection /On-site material inspection

International warehouse / International services center

Sample-based customization / Design-based customization

Minor customization / Full customization
